DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

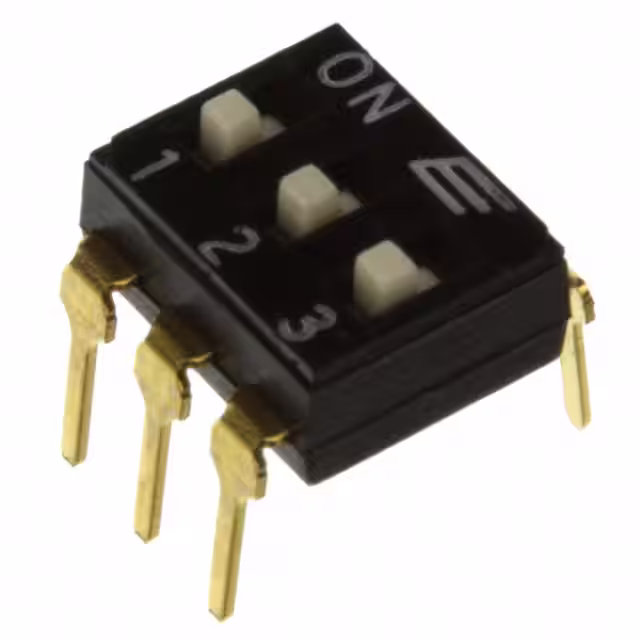

KAJ03LAGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
3,432 |
|
数据手册 |
KAJ | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

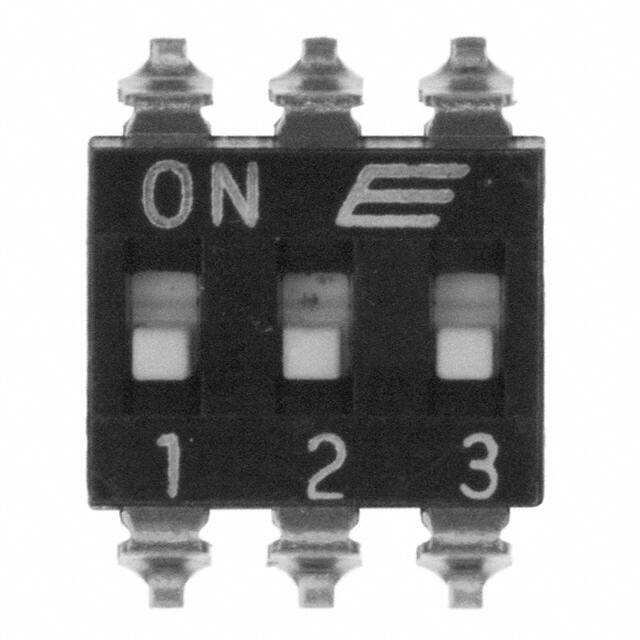

KAJ03LGGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,750 |
|
数据手册 |
KAJ | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.163" (4.15mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

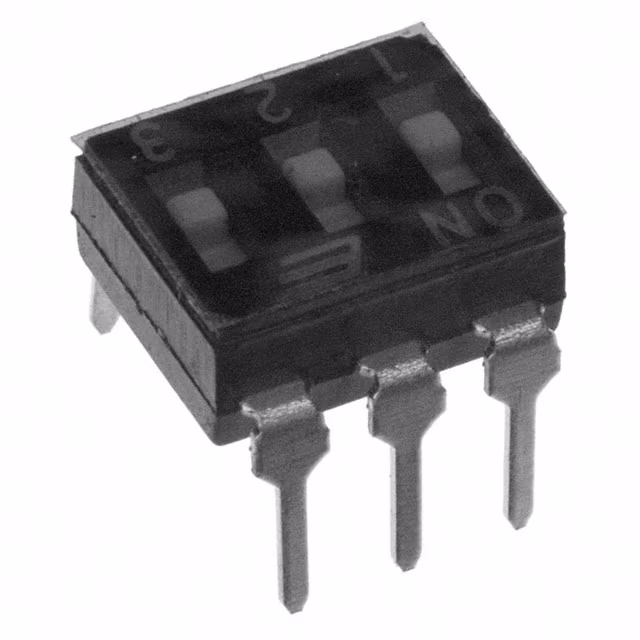

KAJ03TAGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,455 |
|
数据手册 |
KAJ | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

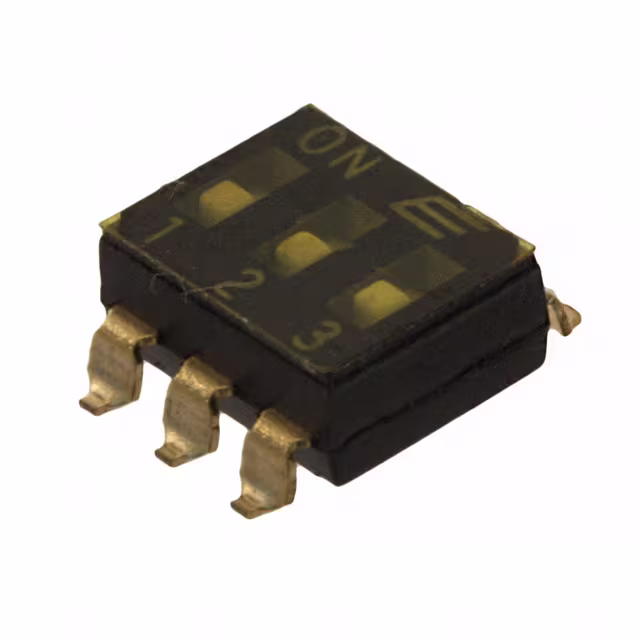

KAJ03TGGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
3,023 |
|
数据手册 |
KAJ | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

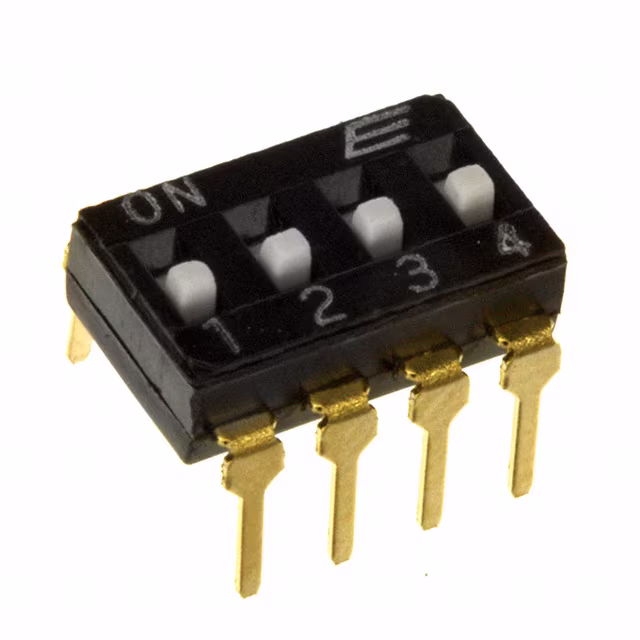

KAJ04LAGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,751 |
|
数据手册 |
KAJ | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

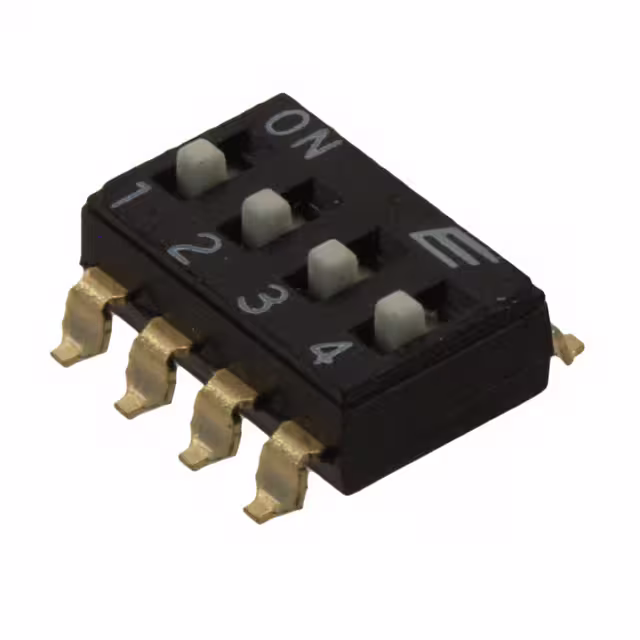

KAJ04LGGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,687 |
|
数据手册 |
KAJ | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.163" (4.15mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

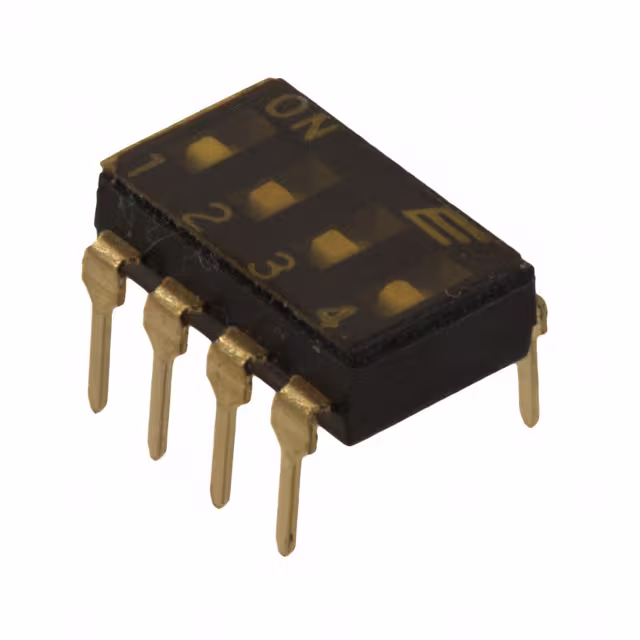

KAJ04TAGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,183 |
|
数据手册 |
KAJ | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KAJ04TGGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
3,853 |
|
数据手册 |
KAJ | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KAJ05LAGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
2,717 |
|
数据手册 |
KAJ | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

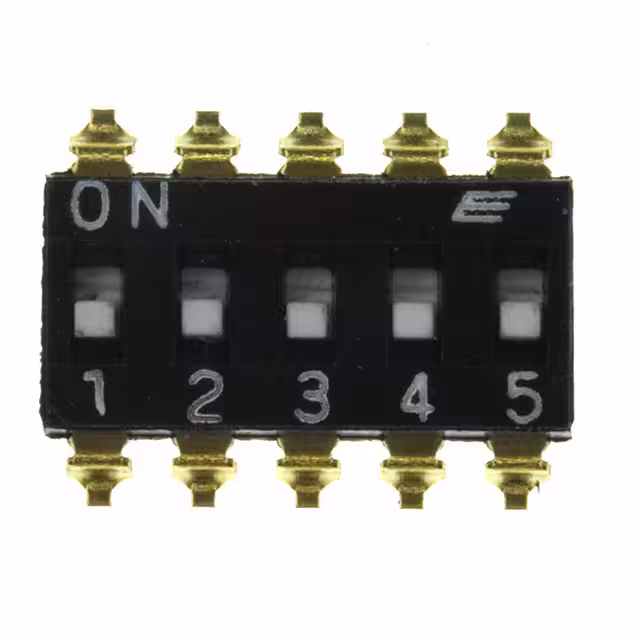

KAJ05LGGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,027 |
|
数据手册 |
KAJ | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.163" (4.15mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
