DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAC04LGGTSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
2,572 |
|
数据手册 |
KAC | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.201" (5.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

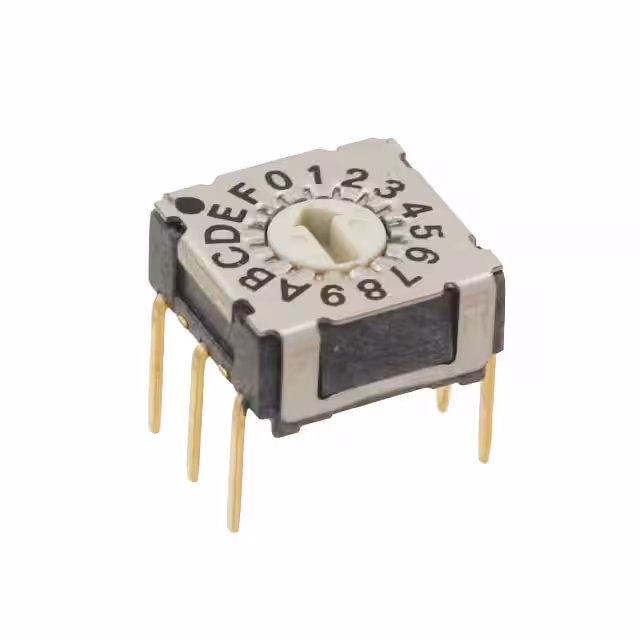

RDMAC16P1TSW ROTARY DIP HEX COMP 0.1A 42V E-Switch |
1,992 |
|
数据手册 |
RDM | Tube | Active | Hexadecimal Complement | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
|
RDMAR10P1TSWITCH ROTARY DIP BCD 0.1A 42V E-Switch |
4,186 |
|
数据手册 |
RDM | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
KAT1108ESWITCH SLIDE DIP SPDT 0.025A 24V E-Switch |
4,212 |
|
数据手册 |
KAT | Tube | Obsolete | SPDT | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
KAN1106RSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,300 |
|
数据手册 |
KAN | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
DR3MS-16R-TRSWITCH ROTARY DIP HEX 0.025A 24V E-Switch |
1,787 |
|
数据手册 |
DR | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | Copper | Gold | 0.303" (7.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
|
DR3-16R-BSWITCH ROTARY DIP HEX 0.025A 24V E-Switch |
1,628 |
|
数据手册 |
DR | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|

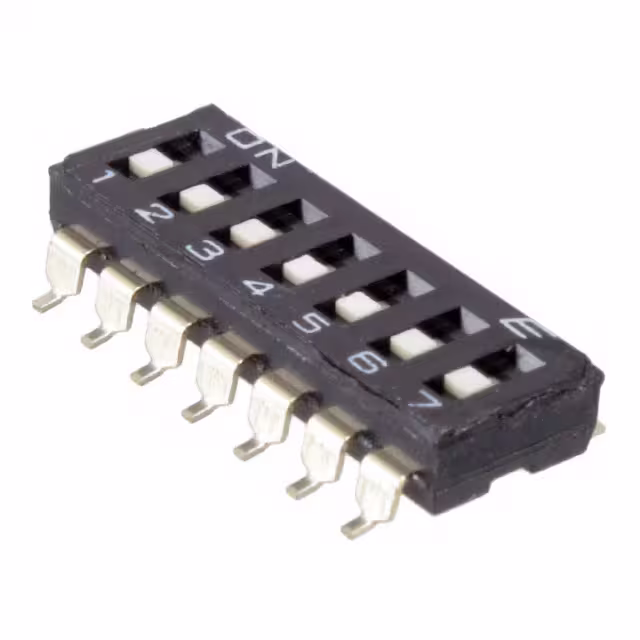

KAE07TGGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,400 |
|
数据手册 |
KAE | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

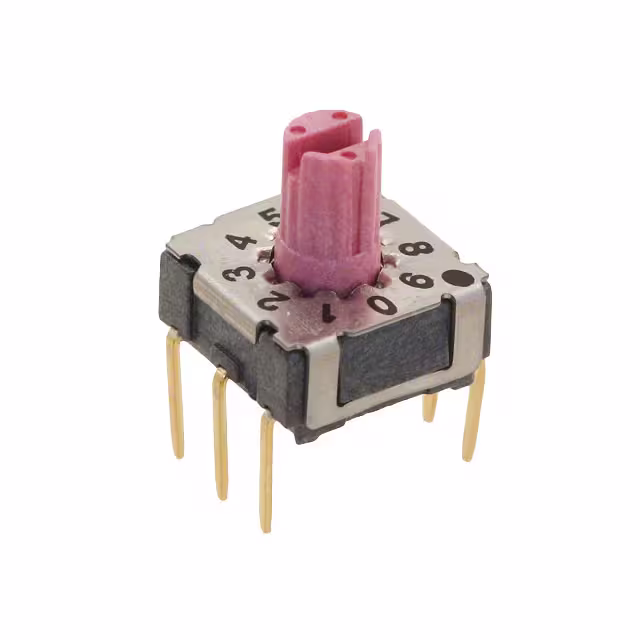

RDMBR10P1TSWITCH ROTARY DIP BCD 0.1A 42V E-Switch |
3,485 |
|
数据手册 |
RDM | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|

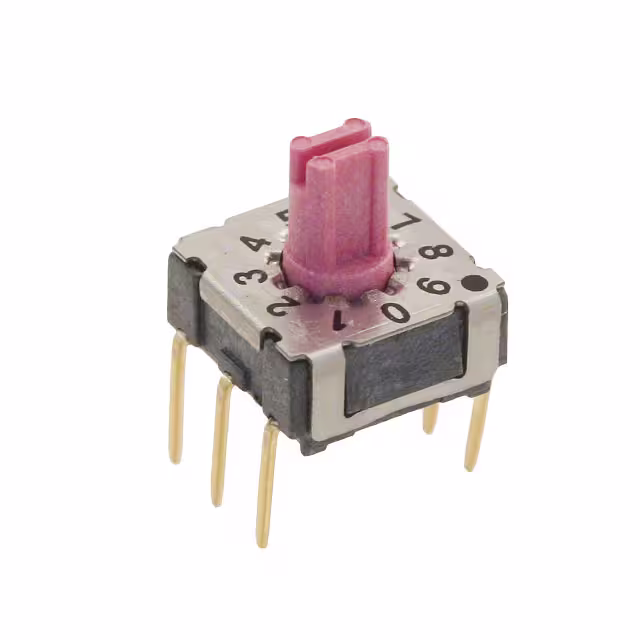

RDMER10P1TSWITCH ROTARY DIP BCD 0.1A 42V E-Switch |
3,253 |
|
数据手册 |
RDM | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.309" (7.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
