DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAN1102RRSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
2,140 |
|
数据手册 |
KAN | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
KAE12TAGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,153 |
|
数据手册 |
KAE | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
KAD10LGGTSwitches E-Switch |
2,789 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RDTKR16P2TSWITCH ROTARY DIP BCD 0.15A 42V E-Switch |
2,097 |
|
数据手册 |
RDT | Bulk | Active | BCD | 4 | 150mA | 42VDC | Rotary with Knob | Raised | - | Gold | 0.256" (6.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
|
DR4NH-10R-BSWITCH ROTARY DIP BCD 0.025A 24V E-Switch |
2,813 |
|
数据手册 |
DR | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | Copper | Gold | 0.464" (11.79mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|

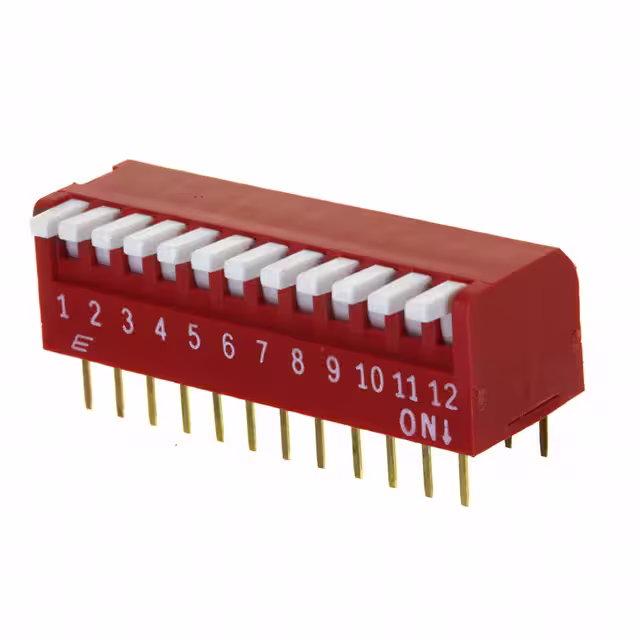

KAP1112ESWITCH PIANO DIP SPST 0.025A 24V E-Switch |
3,464 |
|
数据手册 |
KAP | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DR3MS-10R-TRSWITCH ROTARY DIP BCD 0.025A 24V E-Switch |
1,868 |
|
数据手册 |
DR | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | Copper | Gold | 0.303" (7.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
|
KAN1104RR-ONSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,463 |
|
数据手册 |
KAN | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
KAE12TGGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
2,158 |
|
数据手册 |
KAE | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

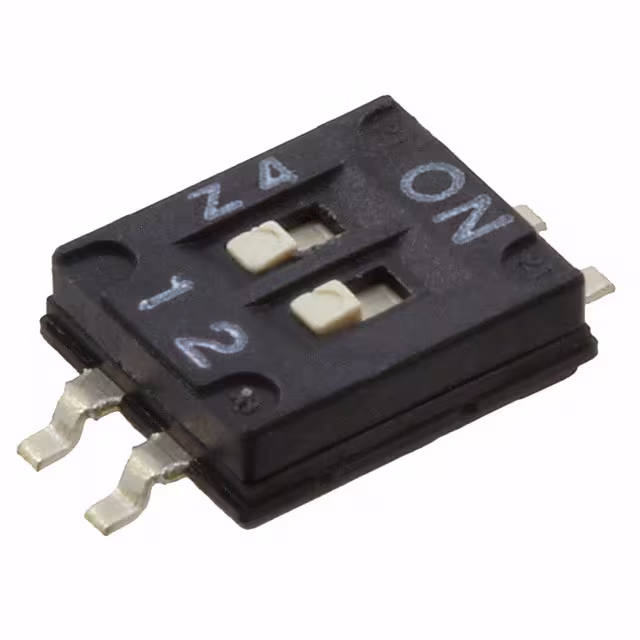

KAN1102RSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
2,564 |
|
数据手册 |
KAN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
