DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDTAR10P2TSWITCH ROTARY DIP BCD 0.15A 42V E-Switch |
2,907 |
|
数据手册 |
RDT | Tube | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

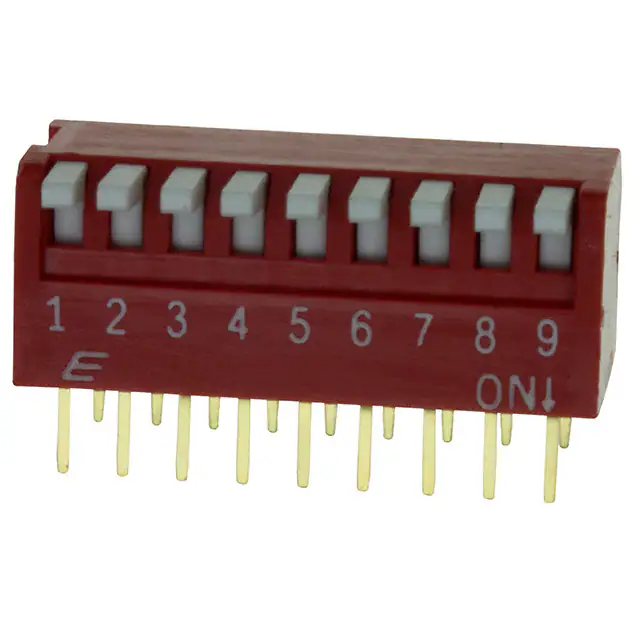

KAP1109ESWITCH PIANO DIP SPST 0.025A 24V E-Switch |
1,844 |
|
数据手册 |
KAP | Tube | Active | SPST | 9 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAS1110RTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,368 |
|
数据手册 |
KAS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KAP1108WSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
4,428 |
|
数据手册 |
KAP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAG10TGGRSwitches E-Switch |
1,709 |
|
数据手册 |
KAG | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|
|
KAE02TGGRSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
3,628 |
|
数据手册 |
KAE | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
KAS2110ESWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,685 |
|
数据手册 |
KAS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAP1108ETSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
1,434 |
|
数据手册 |
KAP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
KAN1108RR-OFFSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
3,614 |
|
数据手册 |
KAN | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|

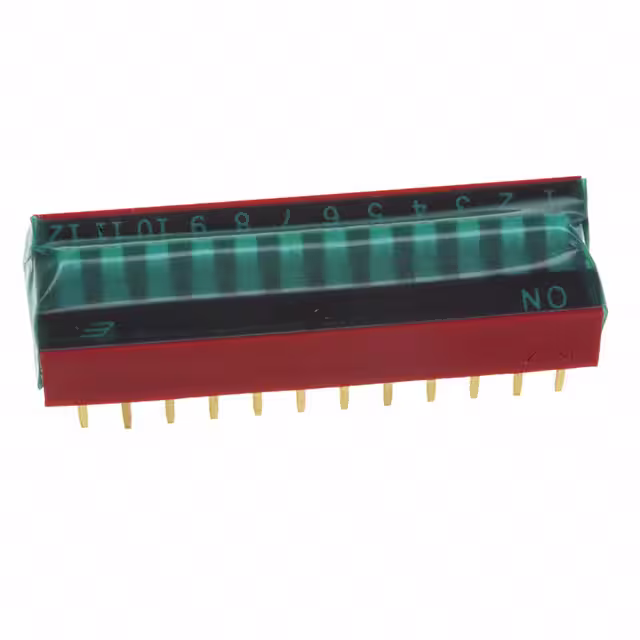

KAS1112ETSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,798 |
|
数据手册 |
KAS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
