DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

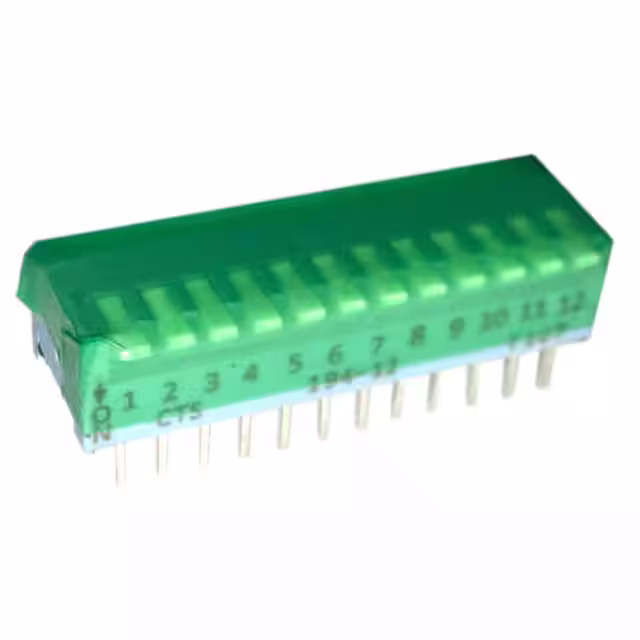

194-12MSTSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
4,387 |
|
数据手册 |
194 | Tube | Active | SPST | 12 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
206-124RASTSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
3,204 |
|
数据手册 |
206RA | Tube | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

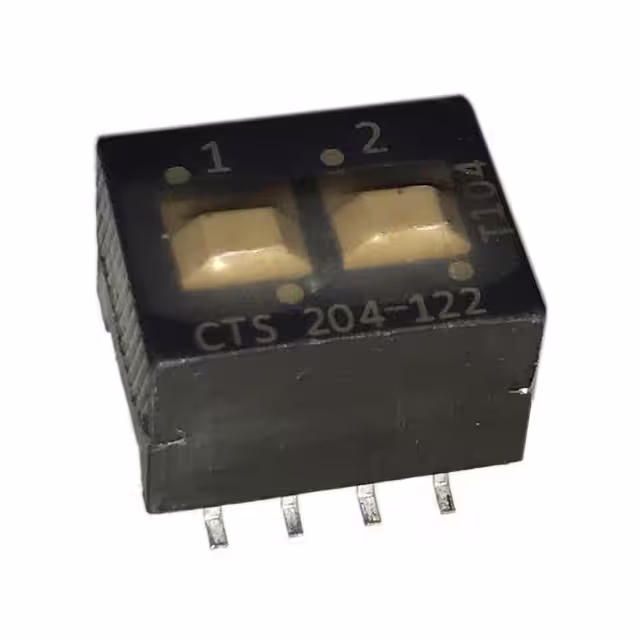

204-122LPSTSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
2,204 |
|
数据手册 |
204 | Tube | Active | SPDT | 2 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.359" (9.12mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-126SWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
3,387 |
|
数据手册 |
206 | Tube | Active | SPDT | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
204-122STRSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
2,284 |
|
数据手册 |
204 | Tape & Reel (TR) | Active | SPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-216STSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
3,924 |
|
数据手册 |
206 | Tube | Active | DPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

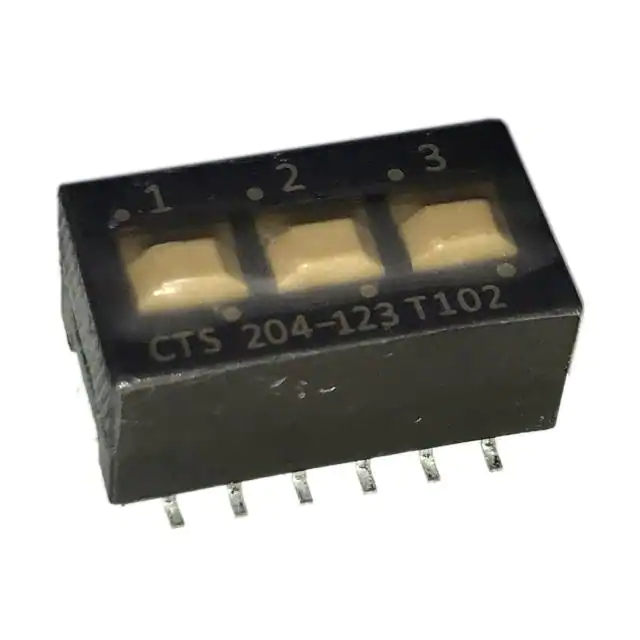

204-123STSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
1,576 |
|
数据手册 |
204 | Tube | Active | SPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
193-10MSRSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
1,857 |
|
数据手册 |
193 | Tape & Reel (TR) | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

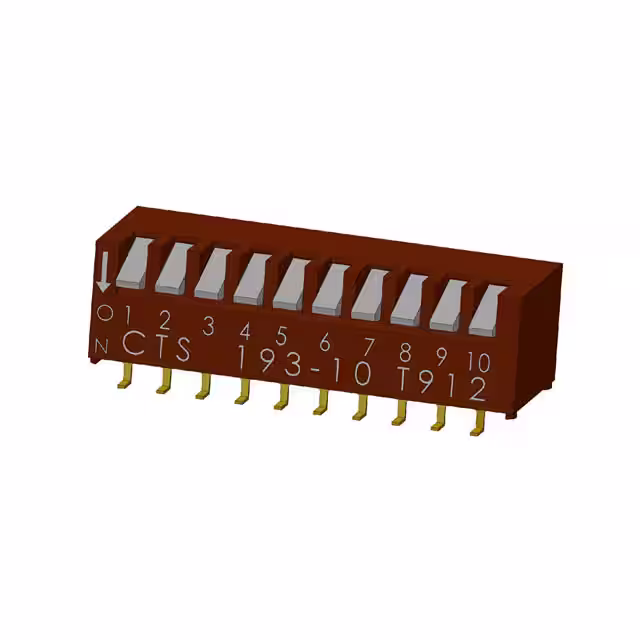

193-10MSRNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
4,339 |
|
数据手册 |
193 | Tape & Reel (TR) | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
206-215RASTSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
1,904 |
|
数据手册 |
206RA | Tube | Active | DPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
