DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

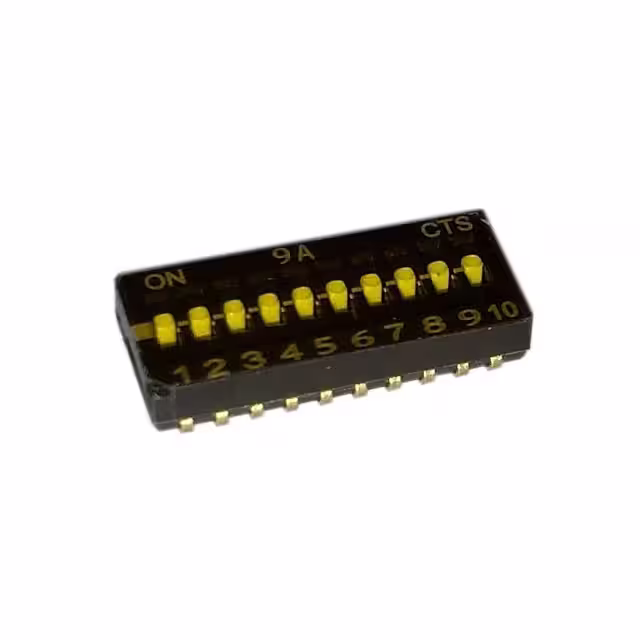

218-10LPSTJRSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
3,975 |
|
数据手册 |
218 | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
218-10LPSTJRFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
3,672 |
|
数据手册 |
218 | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-215RASWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
4,819 |
|
数据手册 |
206RA | Tube | Active | DPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
218-10LPSJSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
2,661 |
|
数据手册 |
218 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-10LPSJFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
1,847 |
|
数据手册 |
218 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
204-122STSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
1,705 |
|
数据手册 |
204 | Tube | Active | SPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
218-10LPSTJSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
3,814 |
|
数据手册 |
218 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
218-10LPSTJFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
2,305 |
|
数据手册 |
218 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-214RASTSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
3,085 |
|
数据手册 |
206RA | Tube | Active | DPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
20412STRSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,298 |
|
数据手册 |
204 | Tape & Reel (TR) | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
