DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
204-12LPSTRSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
4,957 |
|
数据手册 |
204 | Tape & Reel (TR) | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.359" (9.12mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

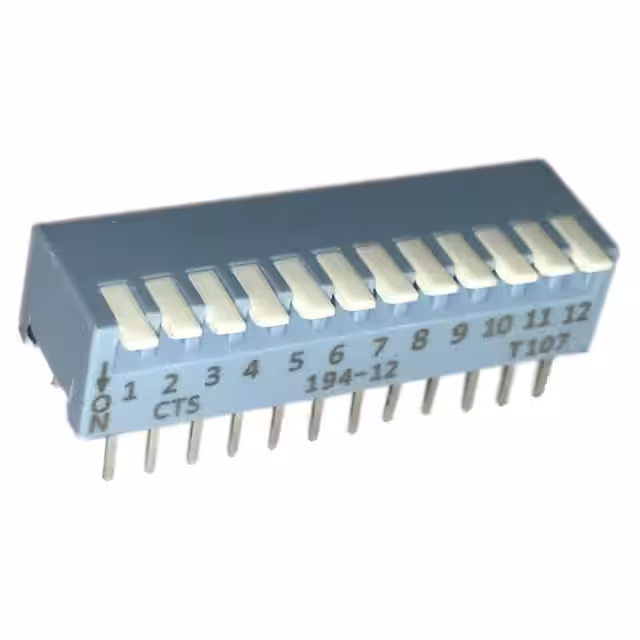

194-12MSSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
1,892 |
|
数据手册 |
194 | Tube | Active | SPST | 12 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
194-12MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
1,591 |
|
数据手册 |
194 | Tube | Active | SPST | 12 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
206-124RASSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
4,367 |
|
数据手册 |
206RA | Tube | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
206-216SSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
3,974 |
|
数据手册 |
206 | Tube | Active | DPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
193-10MSSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
3,894 |
|
数据手册 |
193 | Tube | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
193-10MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
2,368 |
|
数据手册 |
193 | Tube | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
206-215RASSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
3,054 |
|
数据手册 |
206RA | Tube | Active | DPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
204-216STSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
2,067 |
|
数据手册 |
204 | Tube | Active | DPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-312RASWITCH SLIDE DIP 3PST 0.05A 24V CTS Electrocomponents |
2,887 |
|
数据手册 |
206RA | Tube | Active | 3PST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
