DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6CV-16RSWITCH ROTARY DIP HEX 0.1A 30V Omron Electronics Inc-EMC Div |
3,645 |
|
数据手册 |
A6C | Bulk | Active | Hexadecimal | 16 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | - | - | 0.358" (9.10mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

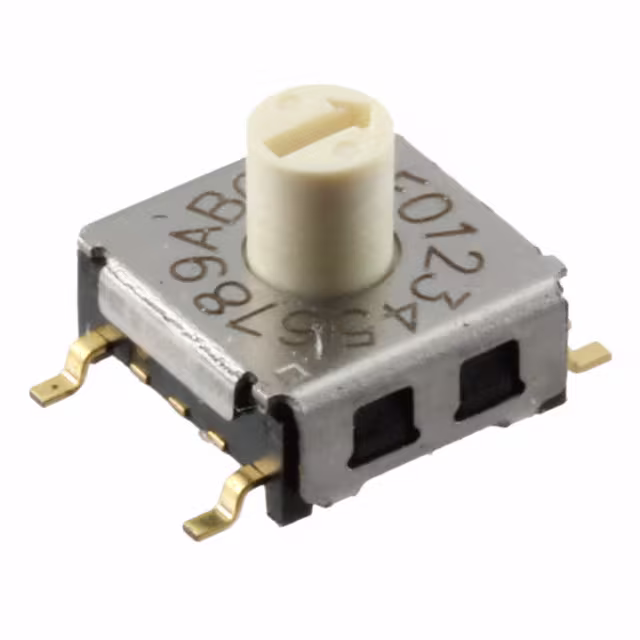

A6KS-164RSSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
315 |
|
数据手册 |
A6KS | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
A6A-10RSSWITCH ROTARY DIP BCD 0.1A 28V Omron Electronics Inc-EMC Div |
2,557 |
|
数据手册 |
A6A | Bulk | Active | BCD | 10 | 100mA | 28VDC | Rotary with Shaft | Raised | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
A6KSV-104RF-R100SWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
1,100 |
|
数据手册 |
A6KS | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
A6KS-162RFSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
102 |
|
数据手册 |
A6KS | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
A6TN-2104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,888 |
|
数据手册 |
A6TN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6FR-5101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
131 |
|
数据手册 |
A6FR | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6TN-4104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
154 |
|
数据手册 |
A6TN | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

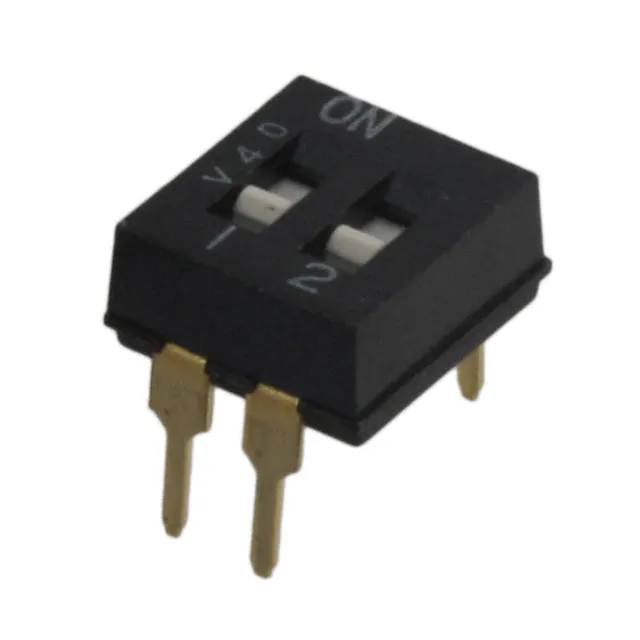

A6TN-2101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
292 |
|
数据手册 |
A6TN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6FR-2104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
452 |
|
数据手册 |
A6FR | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
