DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6S-1102-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,886 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

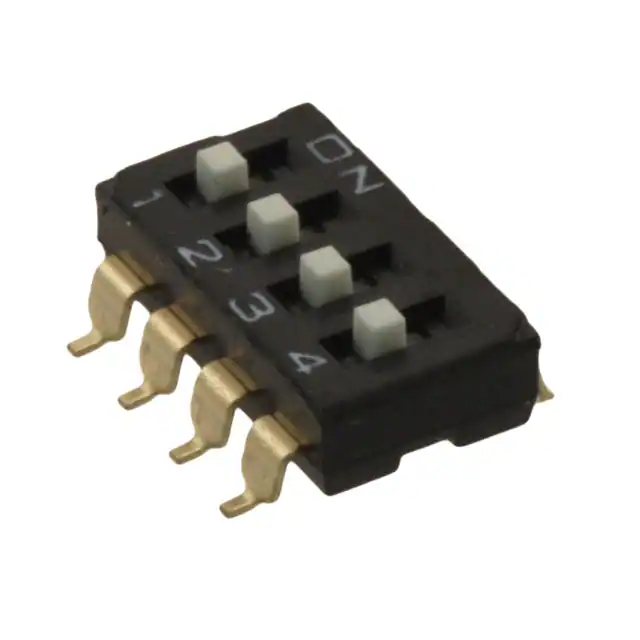

A6S-4104-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
16,063 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

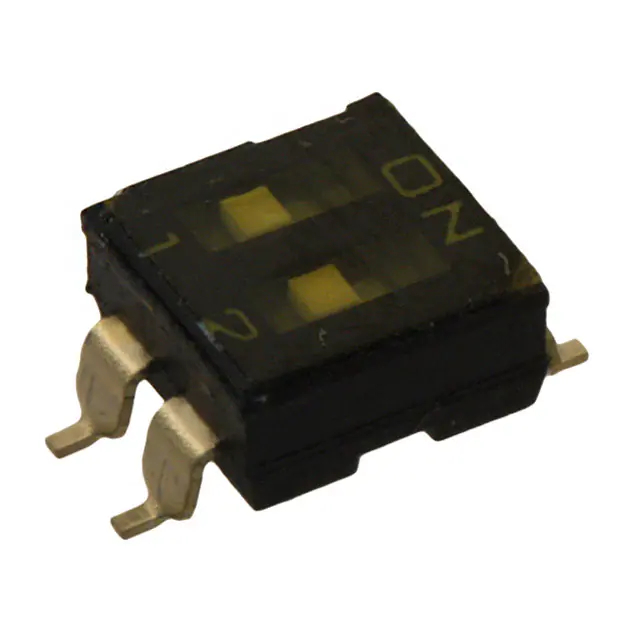

A6S-2102-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
8,728 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

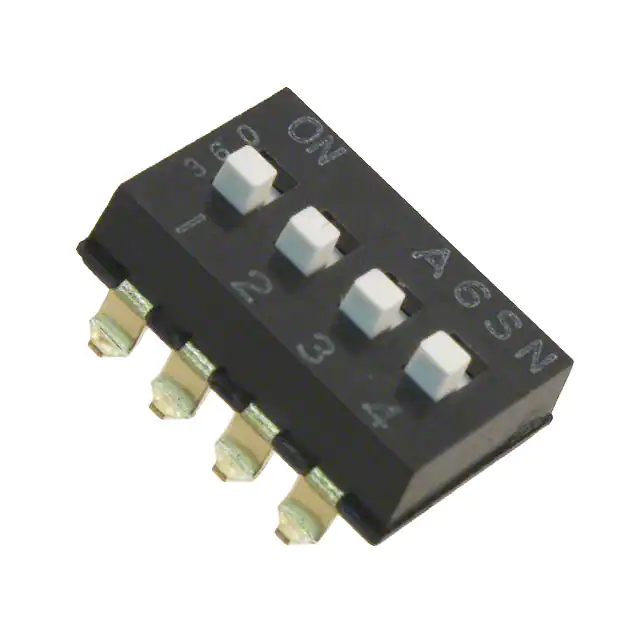

A6SN-4104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,581 |
|
数据手册 |
A6SN | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
A6SN-4104-PSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
3,070 |
|
数据手册 |
A6SN | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6S-3102-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
15,125 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

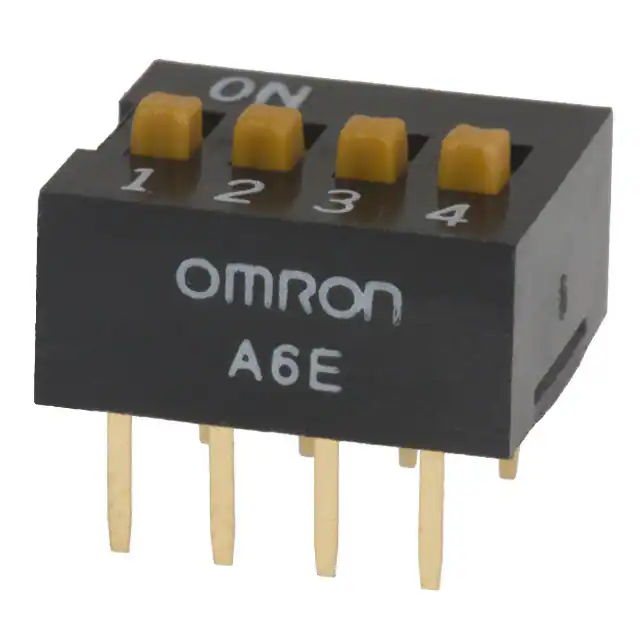

A6E-4104-NSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
7,132 |
|
数据手册 |
A6E-N | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

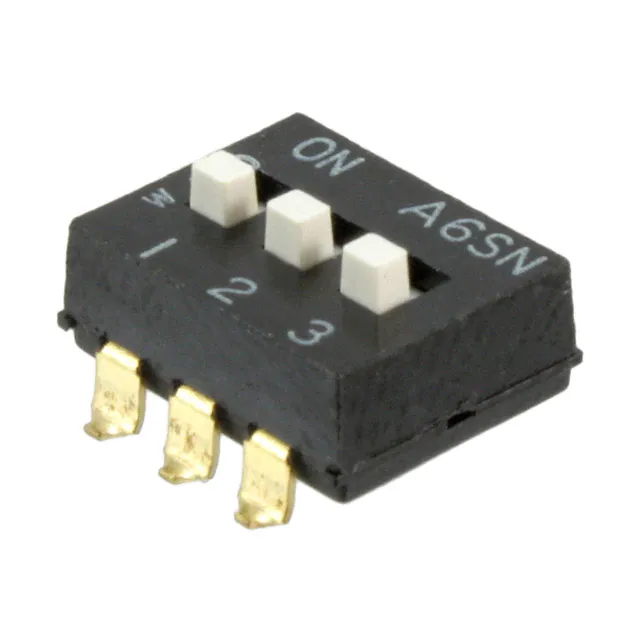

A6SN-3104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
180 |
|
数据手册 |
A6SN | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6S-5102-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
707 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6H-2101-R100SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,170 |
|
数据手册 |
A6H | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -20°C ~ 70°C |
