DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

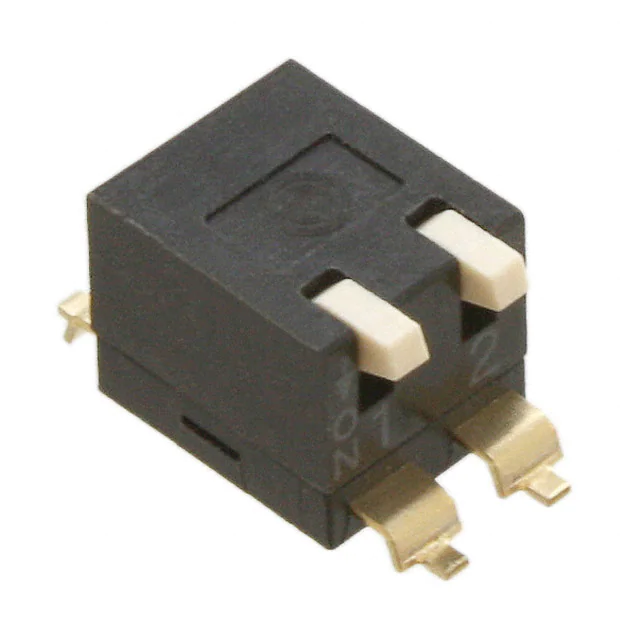

A6SR-2104-PSWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
356 |
|
数据手册 |
A6SR | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6SR-2101-PSWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
224 |
|
数据手册 |
A6SR | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6SR-4101-PSWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
564 |
|
数据手册 |
A6SR | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6T-2102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
259 |
|
数据手册 |
A6T | Tray | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

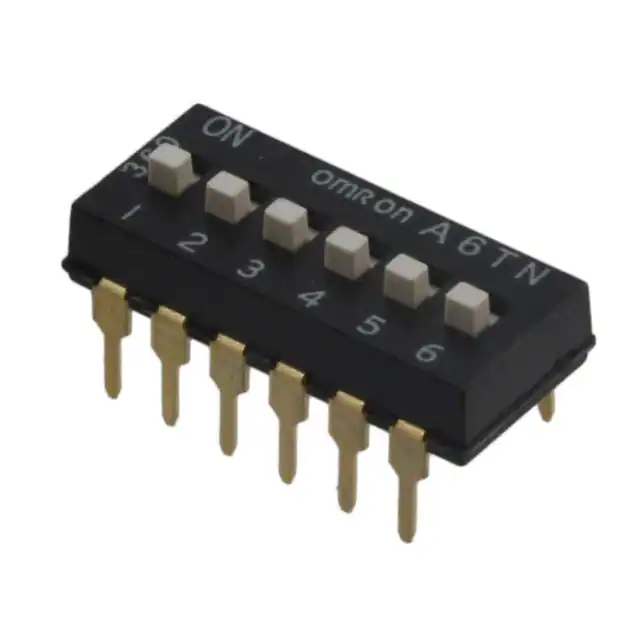

A6TN-6104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
164 |
|
数据手册 |
A6TN | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

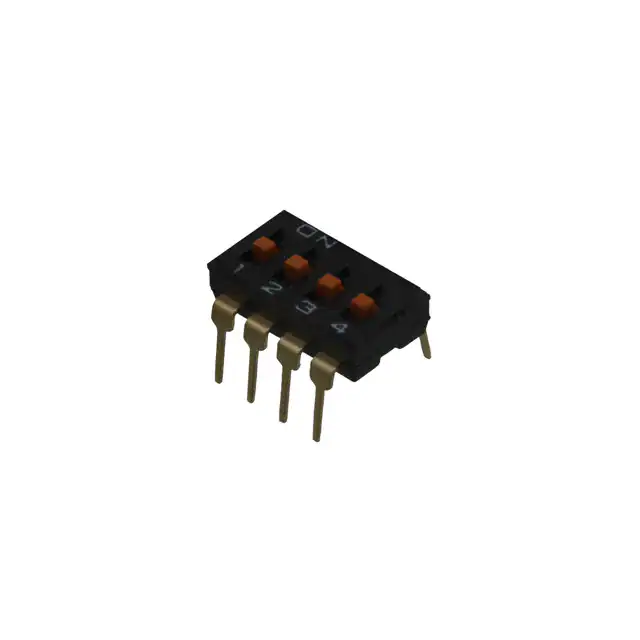

A6T-4104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
227 |
|
数据手册 |
A6T | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6SN-2104-PSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
548 |
|
数据手册 |
A6SN | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

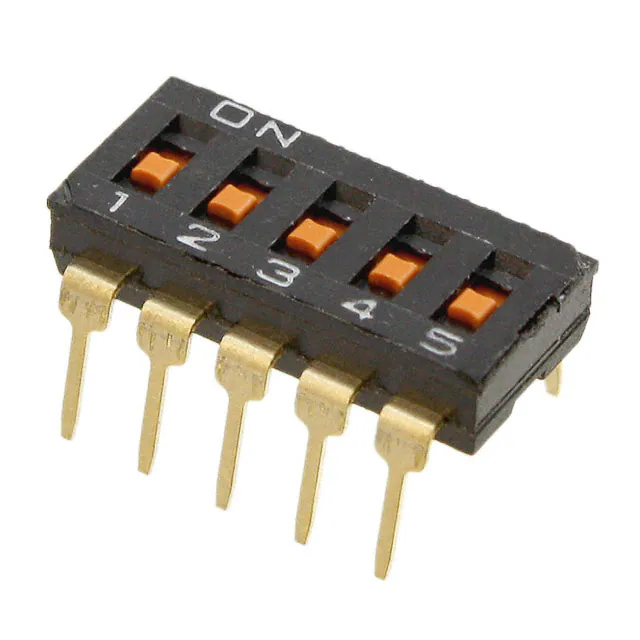

A6T-5101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
210 |
|
数据手册 |
A6T | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6TN-8101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
107 |
|
数据手册 |
A6TN | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

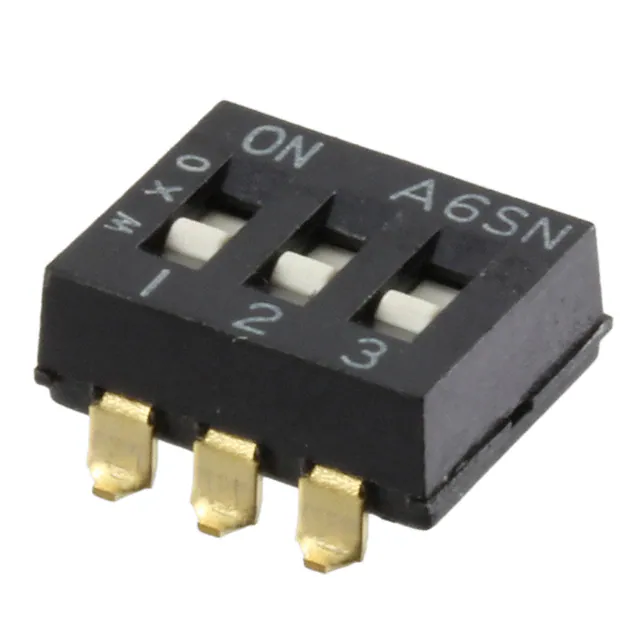

A6SN-3101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
146 |
|
数据手册 |
A6SN | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
