DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6ER-4101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
3,552 |
|
数据手册 |
A6ER | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-4104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,877 |
|
数据手册 |
A6ER | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6ER-5101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,731 |
|
数据手册 |
A6ER | Tray | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-6101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,026 |
|
数据手册 |
A6ER | Tray | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

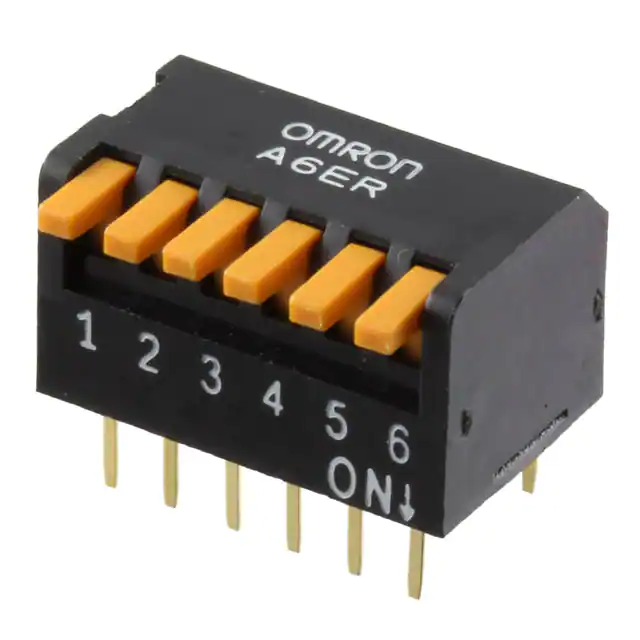

A6ER-6104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,937 |
|
数据手册 |
A6ER | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6ER-7101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,605 |
|
数据手册 |
A6ER | Tray | Obsolete | SPST | 7 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|

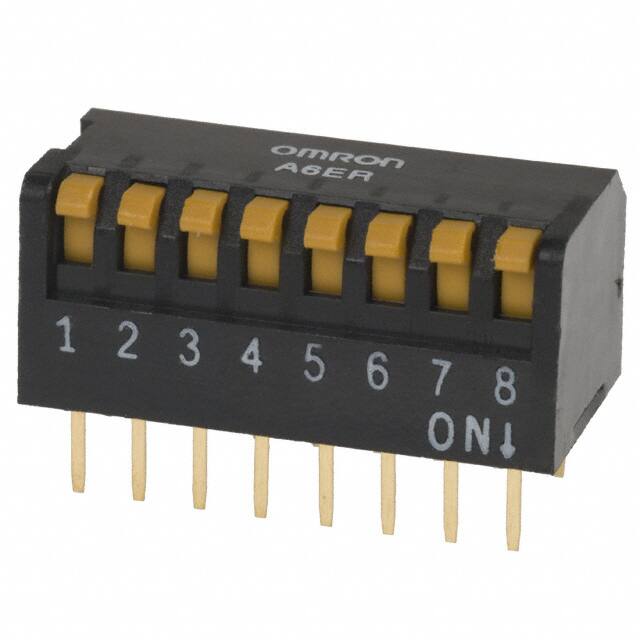

A6ER-8101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,217 |
|
数据手册 |
A6ER | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-8104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,272 |
|
数据手册 |
A6ER | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6ER-9101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,707 |
|
数据手册 |
A6ER | Bag | Obsolete | SPST | 9 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6ER-9104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,719 |
|
数据手册 |
A6ER | Tray | Obsolete | SPST | 9 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
