DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6E-7104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
3,232 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

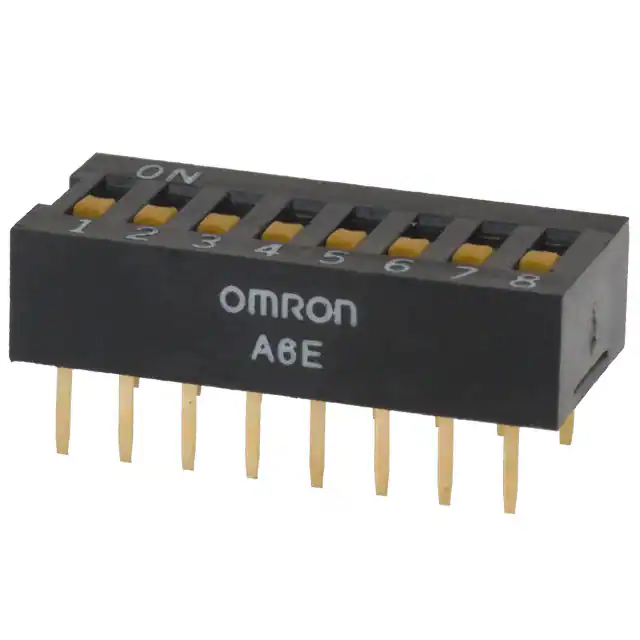

A6E-8101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,438 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

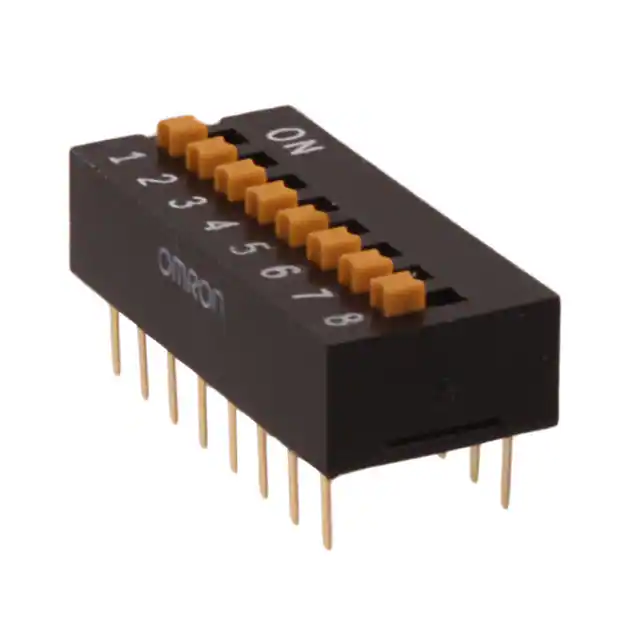

A6E-8104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,498 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6E-9101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
3,175 |
|
数据手册 |
A6E | Tray | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

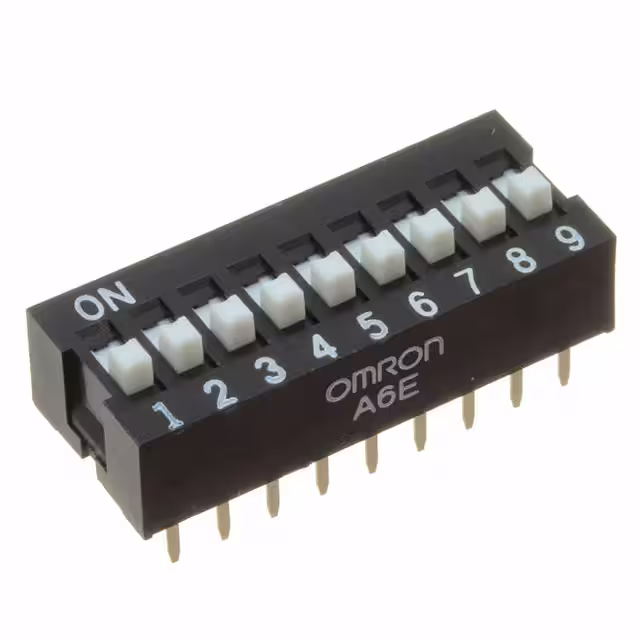

A6E-9104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,380 |
|
数据手册 |
A6E | Tray | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-0101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,377 |
|
数据手册 |
A6ER | Tray | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

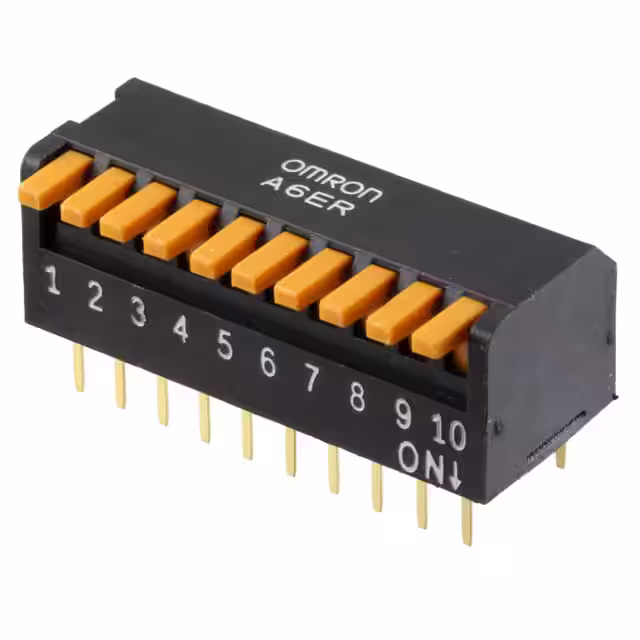

A6ER-0104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,746 |
|
数据手册 |
A6ER | Tray | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

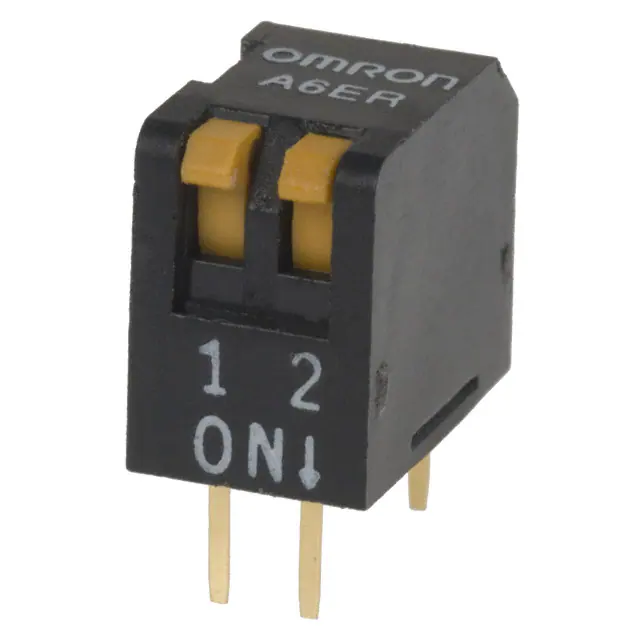

A6ER-2101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,597 |
|
数据手册 |
A6ER | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

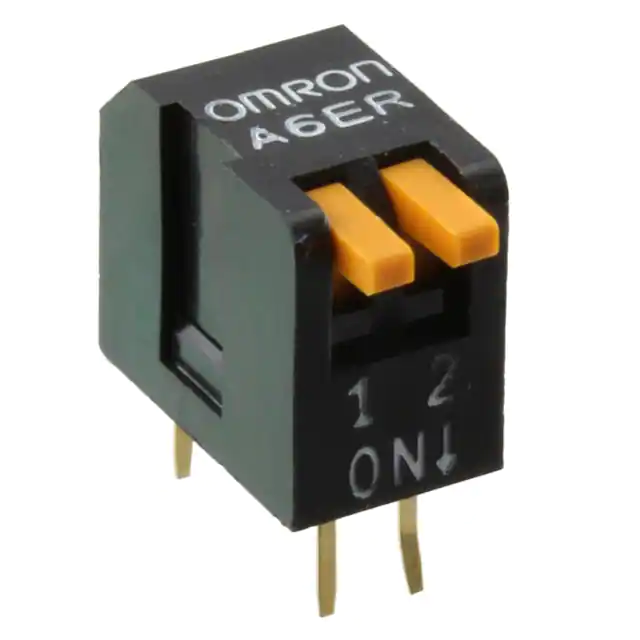

A6ER-2104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,750 |
|
数据手册 |
A6ER | Tray | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-3104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,960 |
|
数据手册 |
A6ER | Tray | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
