DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6E-2101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,608 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

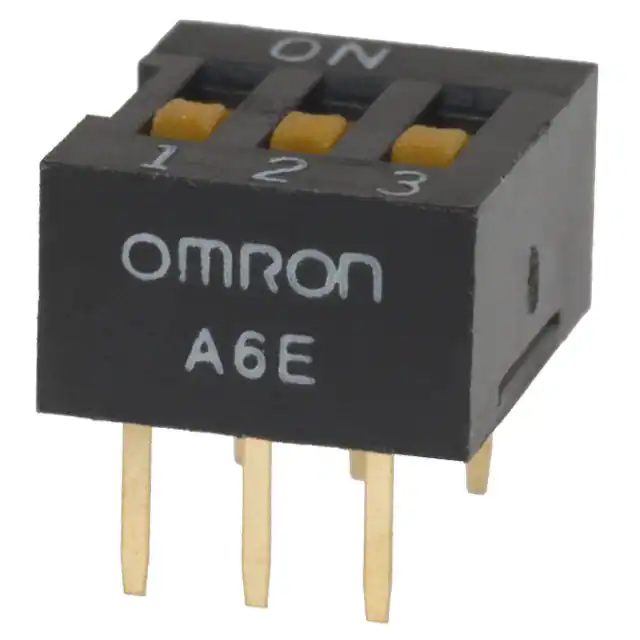

A6E-3101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,028 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

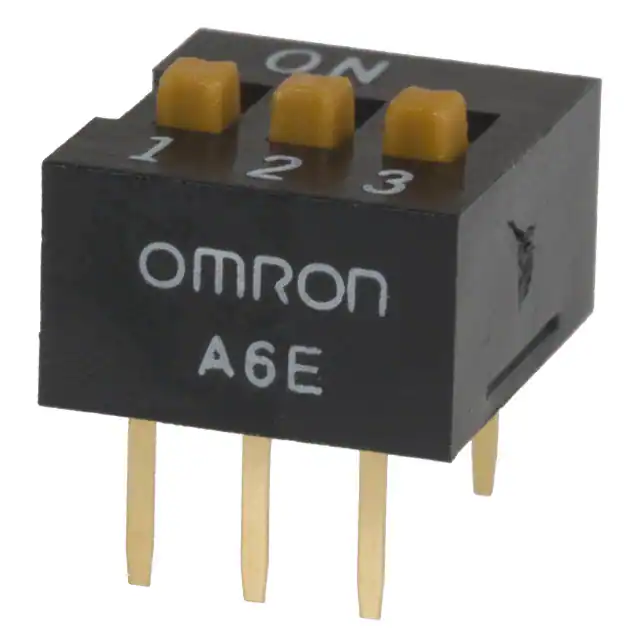

A6E-3104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,317 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-4101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,502 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-4104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,558 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-5101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,283 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-5104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,743 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-6101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,866 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

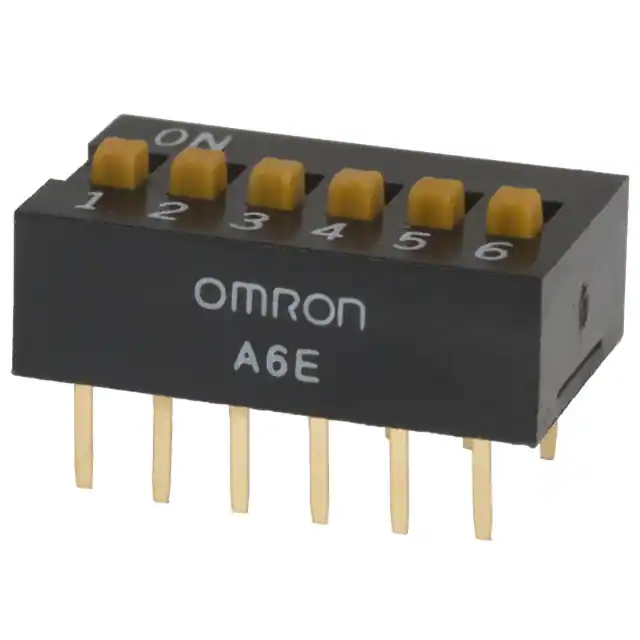

A6E-6104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,101 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

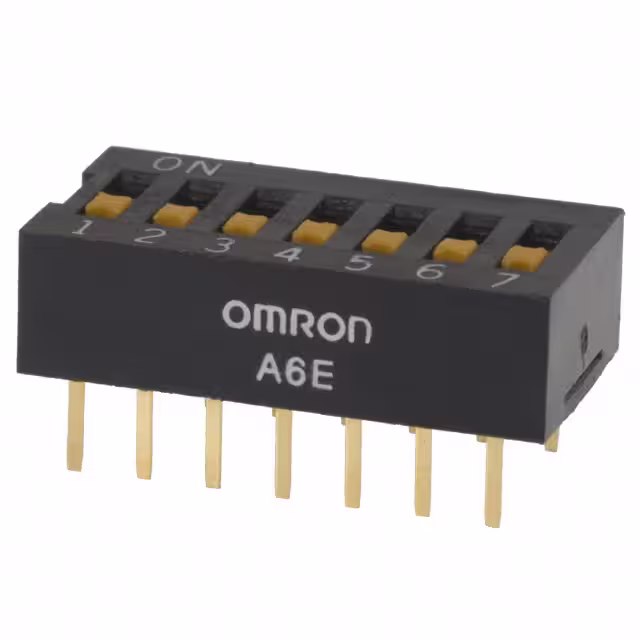

A6E-7101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,907 |
|
数据手册 |
A6E | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
