上传BOM单
DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6S-2102-PMHSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
777 |
|
数据手册 |
A6S-H | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6R-102RFSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
1,535 |
|
数据手册 |
A6R | Tray | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|

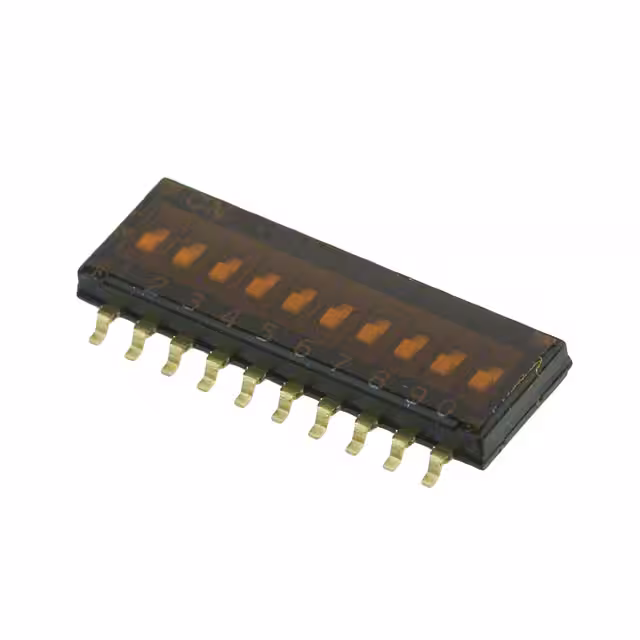

A6H-0102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,508 |
|
数据手册 |
A6H | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|

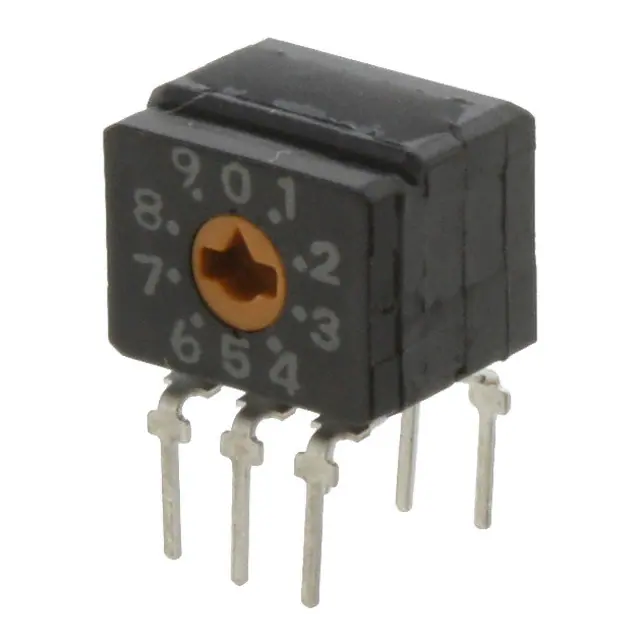

A6CV-10RSWITCH ROTARY DIP BCD 0.1A 30V Omron Electronics Inc-EMC Div |
1,038 |
|
数据手册 |
A6C | Bulk | Active | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | - | - | 0.358" (9.10mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

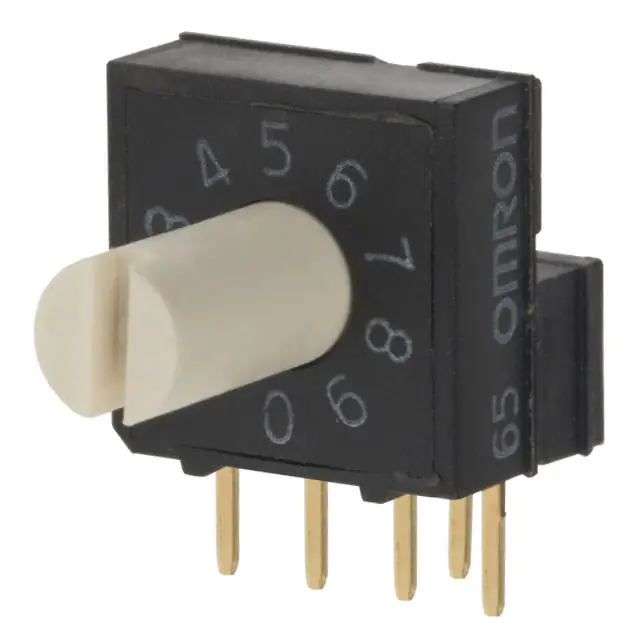

A6RV-101RSSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
102 |
|
数据手册 |
A6RV | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|
A6RS-161RS-PSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
295 |
|
数据手册 |
A6RS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|

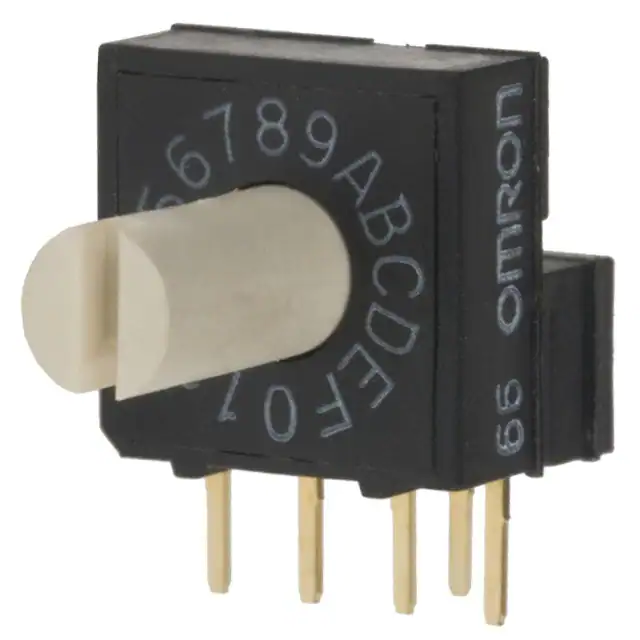

A6RV-161RSSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
165 |
|
数据手册 |
A6RV | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|

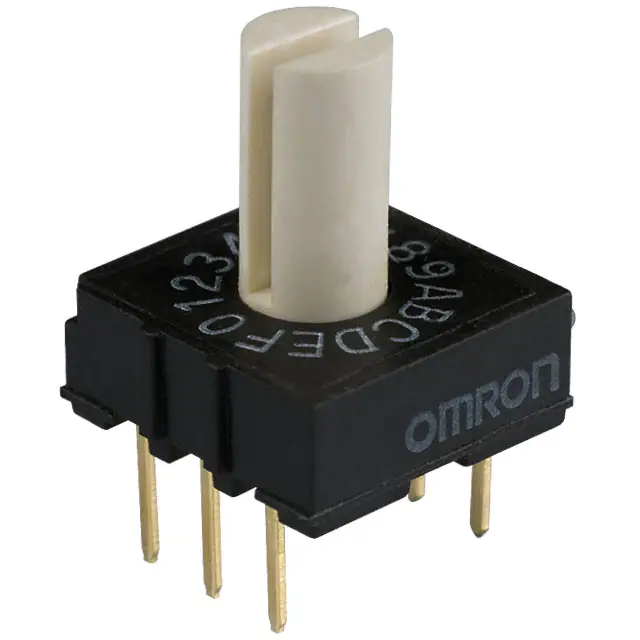

A6R-162RSSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
605 |
|
数据手册 |
A6R | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.465" (11.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
.jpg)
|

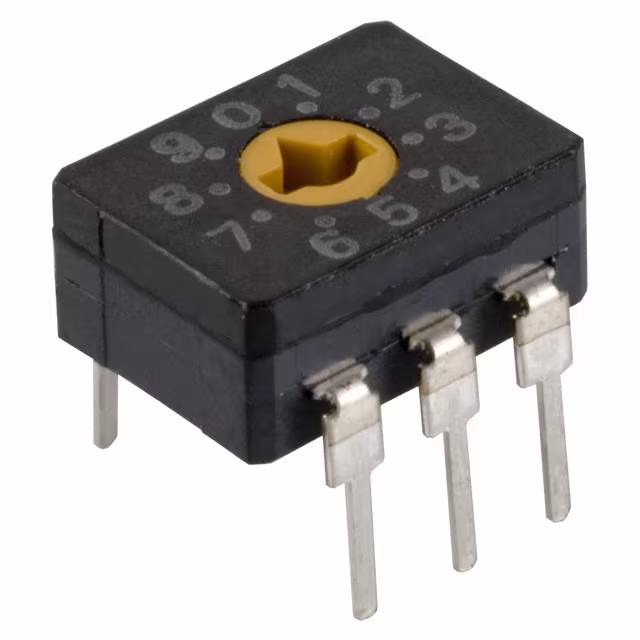

A6C-10R(N)SWITCH ROTARY DIP BCD 0.1A 30V Omron Electronics Inc-EMC Div |
843 |
|
数据手册 |
A6C | Tube | Active | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

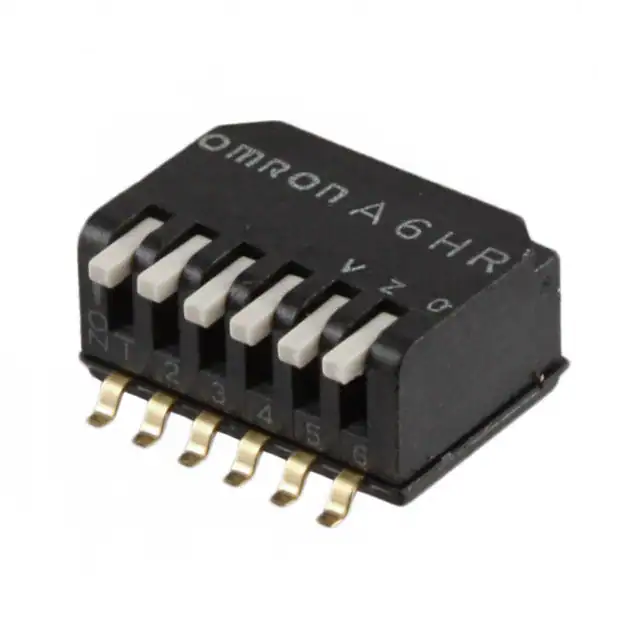

A6HR-6104-PMSWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
807 |
|
数据手册 |
A6HR | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
