DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6D-2100SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
133 |
|
数据手册 |
A6D | Tube | Active | SPST | 2 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
A6HR-8104-PSWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,768 |
|
数据手册 |
A6HR | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
A6D-7100SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
108 |
|
数据手册 |
A6D | Tube | Active | SPST | 7 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

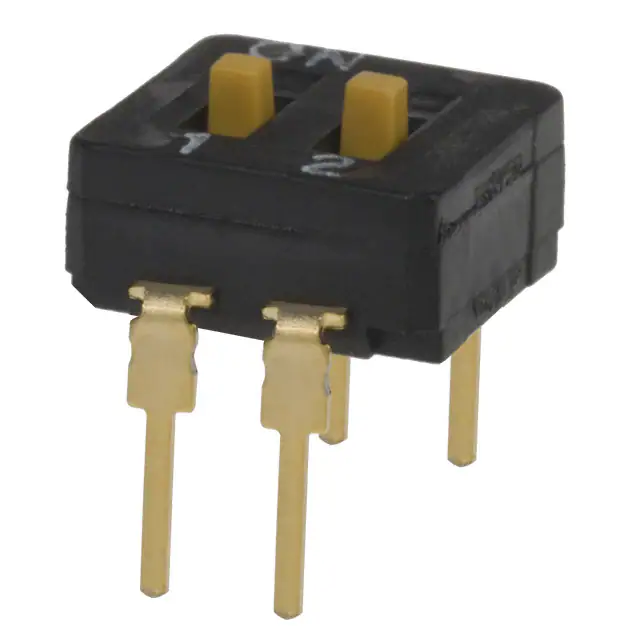

A6D-2103SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
582 |
|
数据手册 |
A6D | Tube | Active | SPST | 2 | 30mA | 30VDC | Slide (Standard) | Raised | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

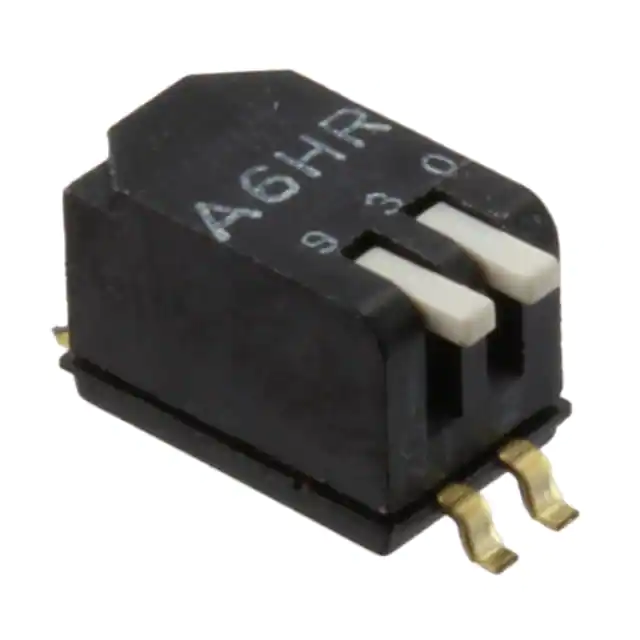

A6HR-2104-PMSWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
472 |
|
数据手册 |
A6HR | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|

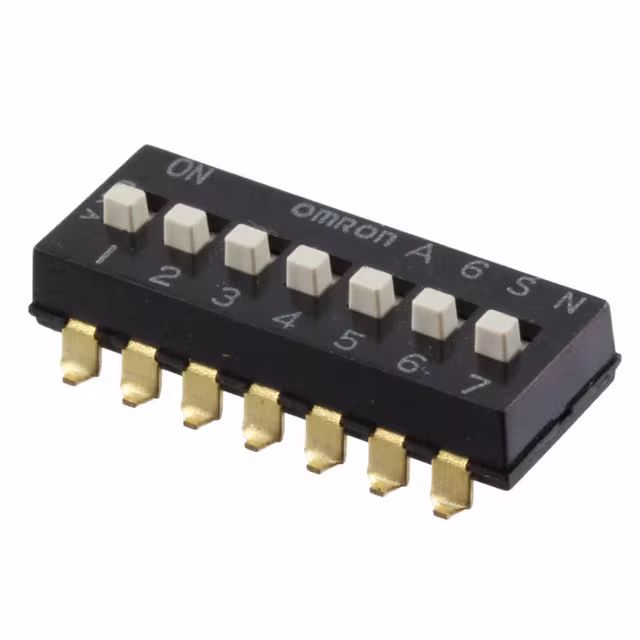

A6SN-7104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
129 |
|
数据手册 |
A6SN | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6D-6100SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
119 |
|
数据手册 |
A6D | Tube | Active | SPST | 6 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

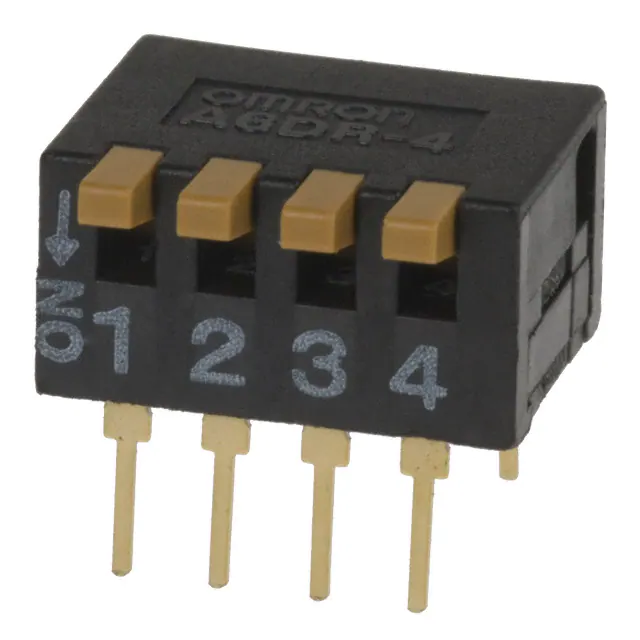

A6DR-4100SWITCH PIANO DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
798 |
|
数据手册 |
A6DR | Tube | Active | SPST | 4 | 30mA | 30VDC | Piano | Raised | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
A6R-101RFSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
255 |
|
数据手册 |
A6R | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|
A6HF-0102-PMSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
133 |
|
数据手册 |
A6HF | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
