DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6HF-6102-PSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,509 |
|
数据手册 |
A6HF | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
A6S-7104-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
424 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

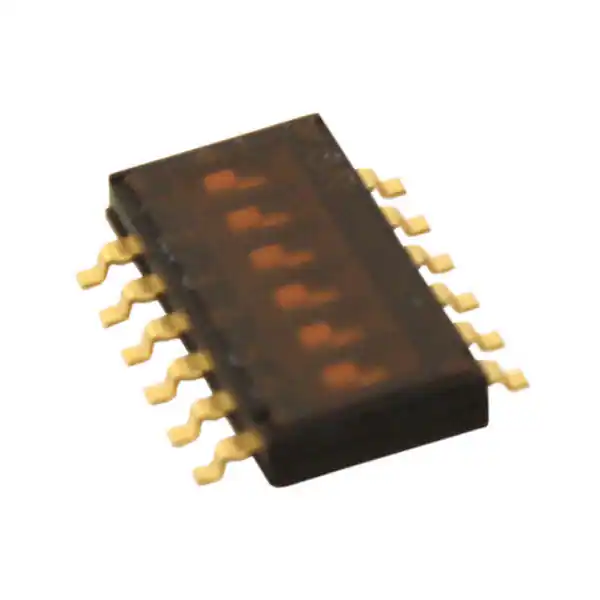

A6H-6102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
5,964 |
|
数据手册 |
A6H | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|

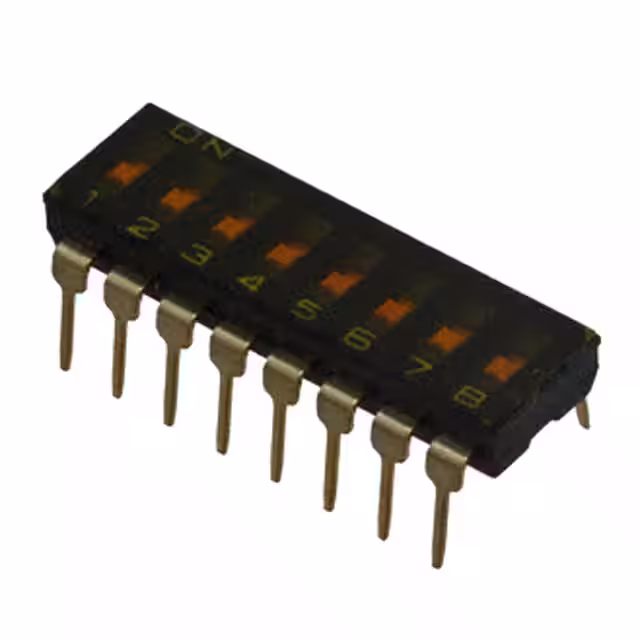

A6T-8102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
3,521 |
|
数据手册 |
A6T | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6SN-8102-PSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
342 |
|
数据手册 |
A6SN | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

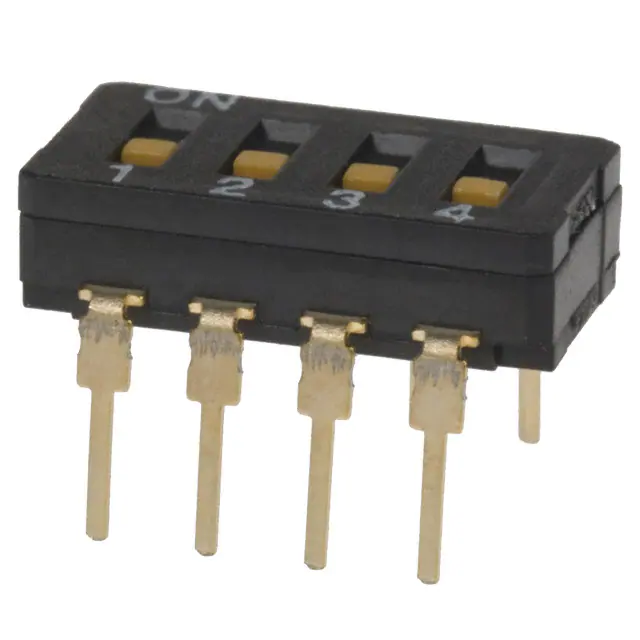

A6D-4100SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
116 |
|
数据手册 |
A6D | Tube | Active | SPST | 4 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

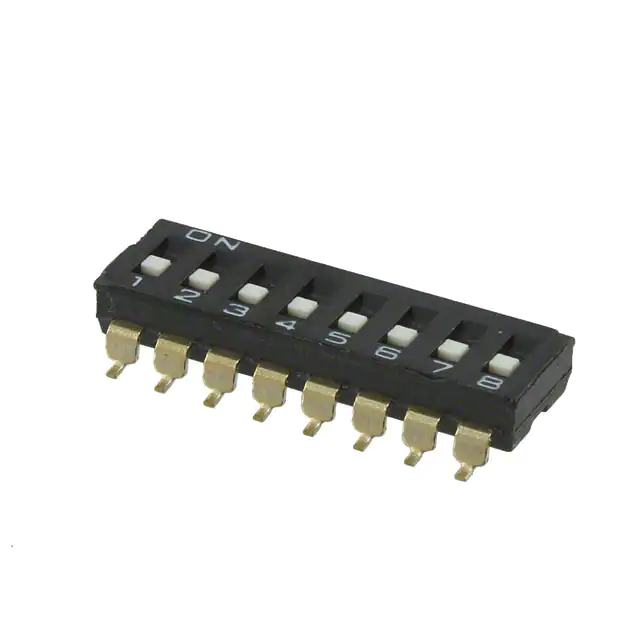

A6S-8101-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
224 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6E-5101-NSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
125 |
|
数据手册 |
A6E-N | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-0104-PMHSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,188 |
|
数据手册 |
A6S-H | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6HF-8102-PSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,489 |
|
数据手册 |
A6HF | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
