DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

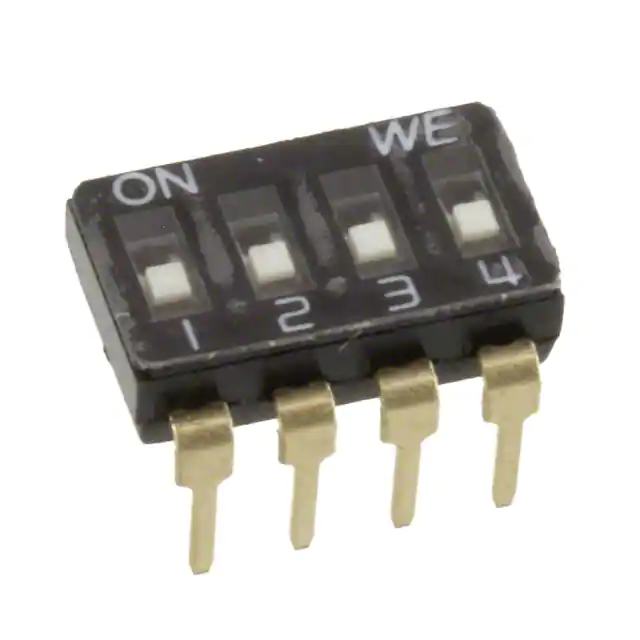

418127160904SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3,842 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

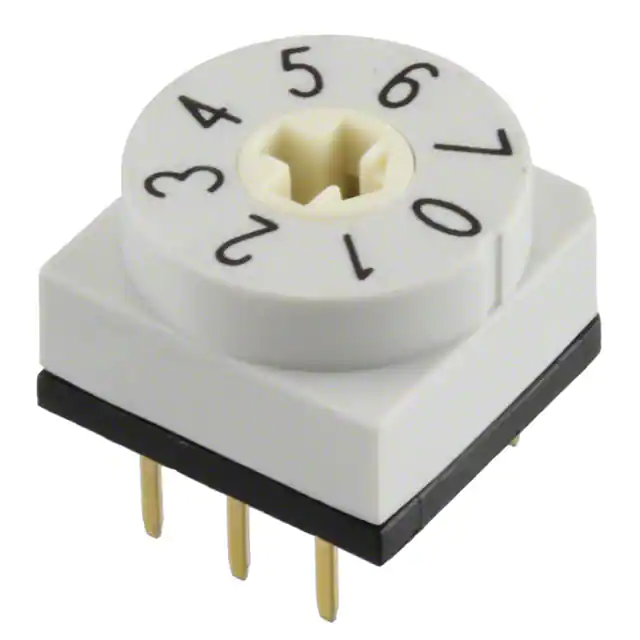

428527520909SW ROTARY DIP OCT COMP 0.15A 24V Würth Elektronik |
1,394 |
|
数据手册 |
WS-ROTV | Tube | Active | Octal Complement | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428527320911SW ROTARY DIP BCD COMP 0.15A 24V Würth Elektronik |
4,174 |
|
数据手册 |
WS-ROTV | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

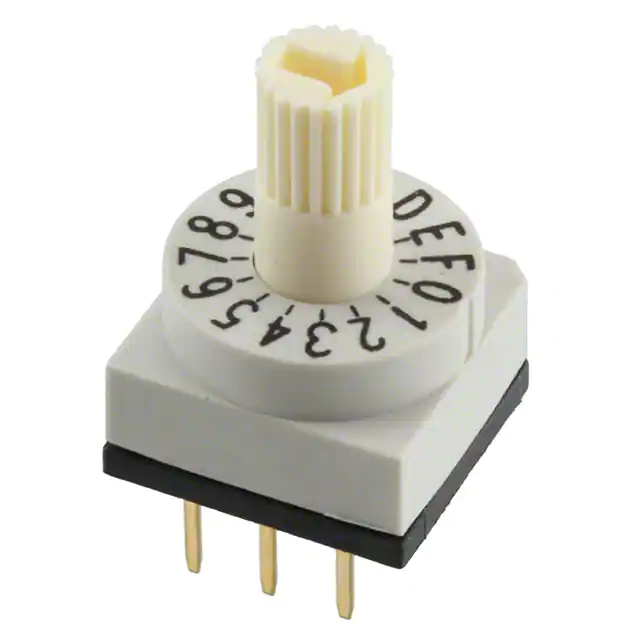

428527420917SW ROTARY DIP HEX COMP 0.15A 24V Würth Elektronik |
1,820 |
|
数据手册 |
WS-ROTV | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

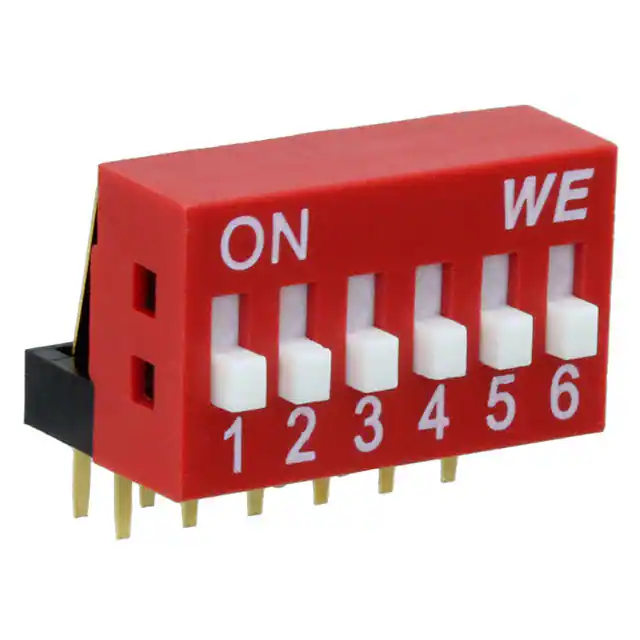

418217270906ASWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3,558 |
|
数据手册 |
WS-DITU | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

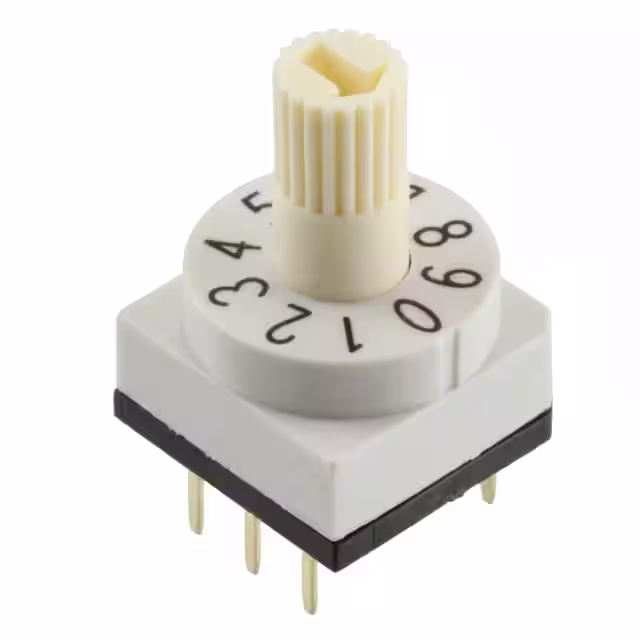

428527420911SW ROTARY DIP BCD COMP 0.15A 24V Würth Elektronik |
3,908 |
|
数据手册 |
WS-ROTV | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428527320908SW ROTARY DIP OCTAL 0.15A 24V Würth Elektronik |
3,518 |
|
数据手册 |
WS-ROTV | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
428527420910SWITCH ROTARY DIP BCD 0.15A 24V Würth Elektronik |
4,791 |
|
数据手册 |
WS-ROTV | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

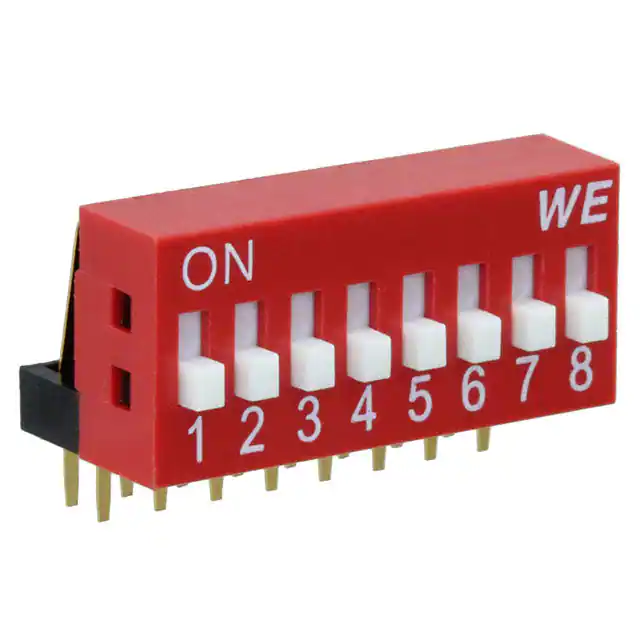

418217270908ASWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
1,914 |
|
数据手册 |
WS-DITU | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
428427320916SWITCH ROTARY DIP HEX 0.15A 24V Würth Elektronik |
1,373 |
|
数据手册 |
WS-ROTU | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
