DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

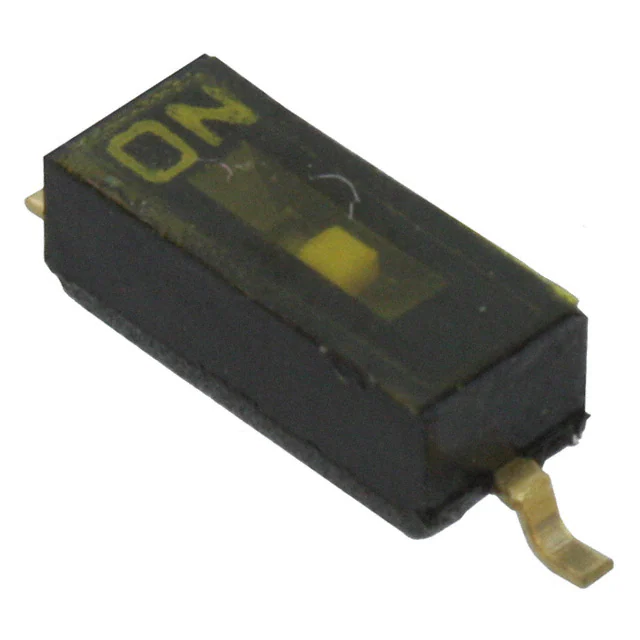

416131160801SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
2,861 |
|
数据手册 |
WS-DISV | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
428527320909SW ROTARY DIP OCT COMP 0.15A 24V Würth Elektronik |
4,283 |
|
数据手册 |
WS-ROTV | Tube | Active | Octal Complement | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428527420916SWITCH ROTARY DIP HEX 0.15A 24V Würth Elektronik |
3,362 |
|
数据手册 |
WS-ROTV | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

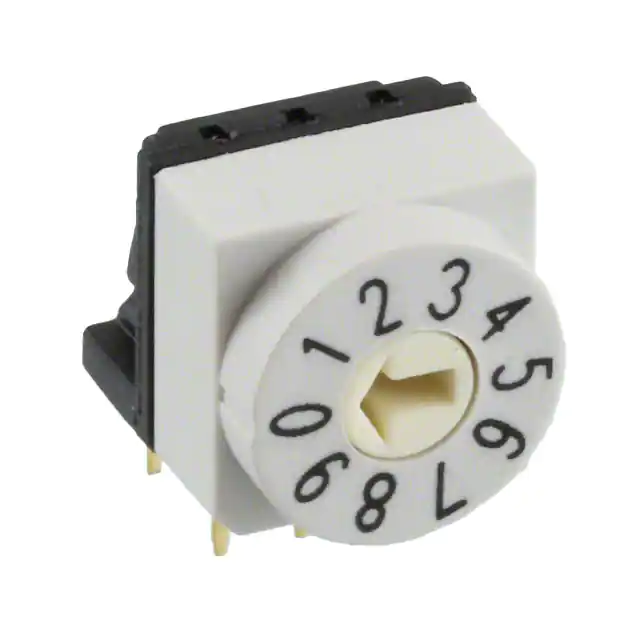

428427320910SWITCH ROTARY DIP BCD 0.15A 24V Würth Elektronik |
3,735 |
|
数据手册 |
WS-ROTU | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

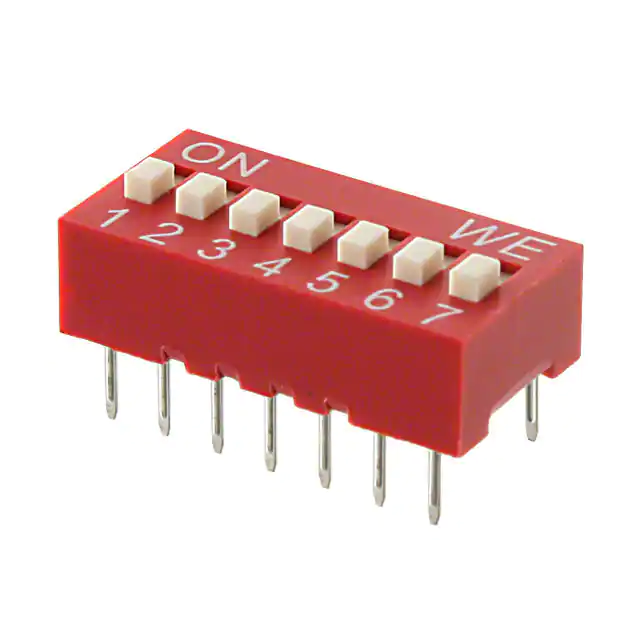

418117270907SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3,177 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418117170906SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
1,192 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.224" (5.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418127270908SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
4,983 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
418117170912SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
1,509 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.224" (5.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

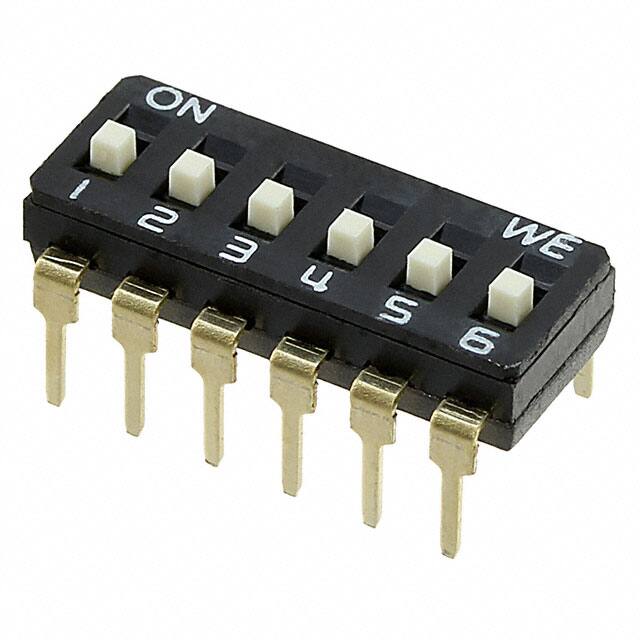

418127270906SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3,552 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

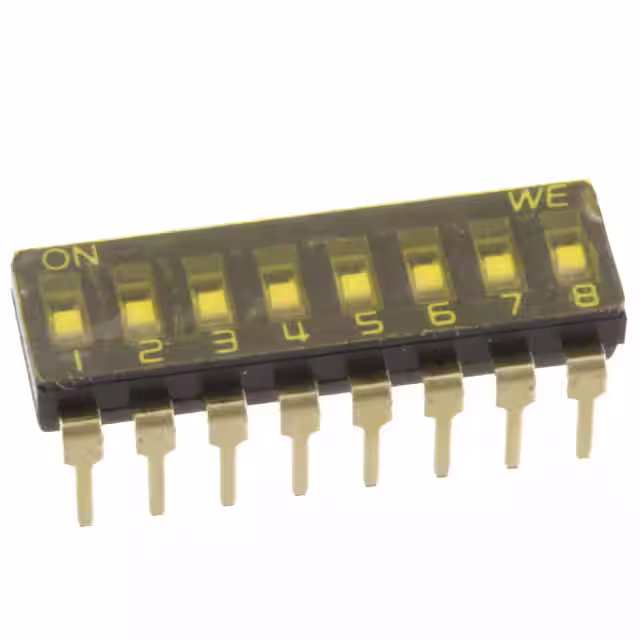

418127160908SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
1,616 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
