DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
418117270912SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3,880 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

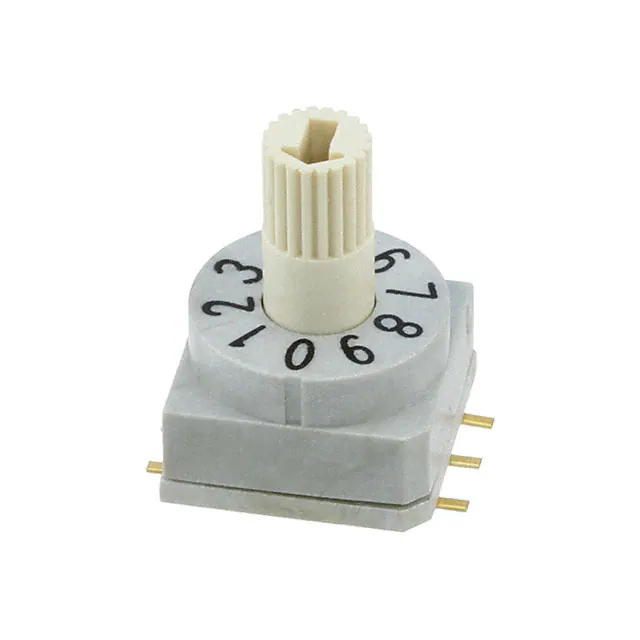

428521420910SWITCH ROTARY DIP BCD 0.15A 24V Würth Elektronik |
4,056 |
|
数据手册 |
WS-ROSV | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

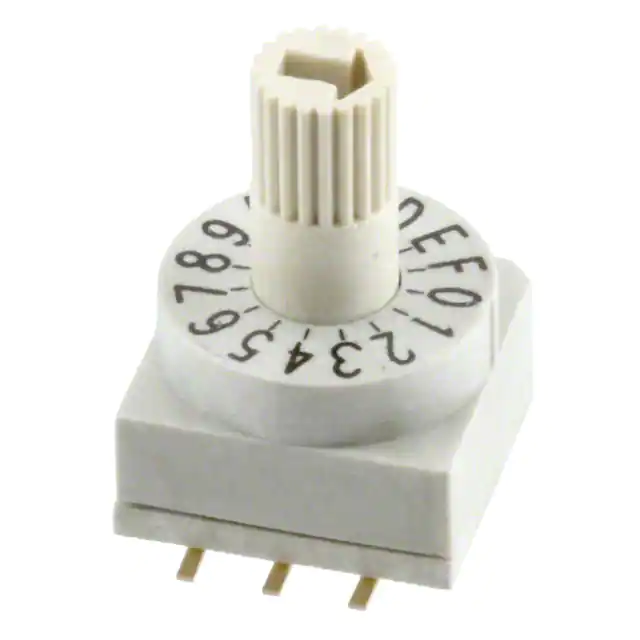

428521420916SWITCH ROTARY DIP HEX 0.15A 24V Würth Elektronik |
2,641 |
|
数据手册 |
WS-ROSV | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
418217270910ASWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
2,804 |
|
数据手册 |
WS-DITU | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418127270910SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3,896 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418127270912SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
4,041 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

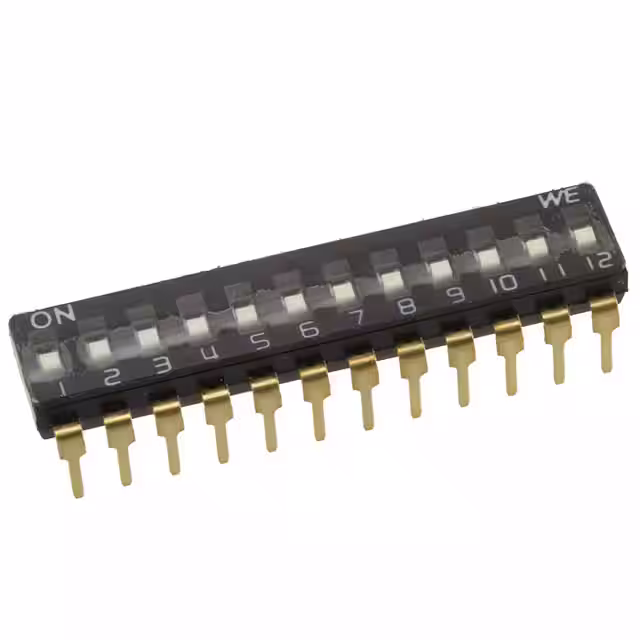

418127160912SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
1,514 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

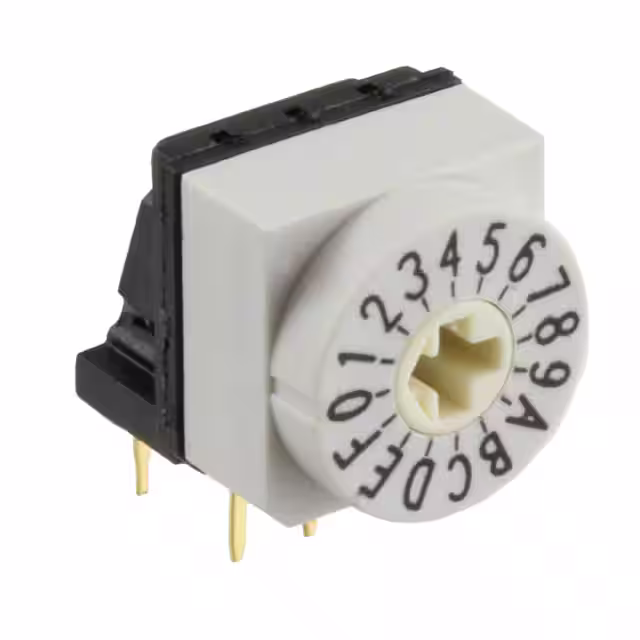

429427520917SW ROTARY DIP HEX COMP 0.15A 24V Würth Elektronik |
4,262 |
|
数据手册 |
WS-ROTU | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

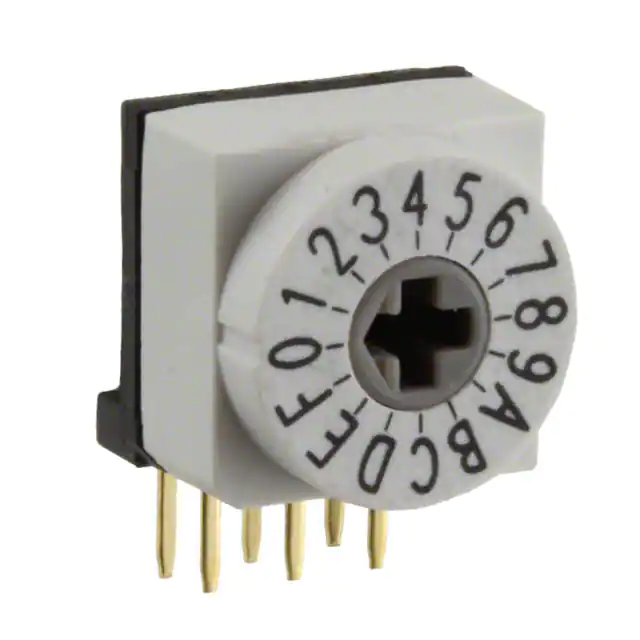

428427520916SWITCH ROTARY DIP HEX 0.15A 24V Würth Elektronik |
1,856 |
|
数据手册 |
WS-ROTU | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

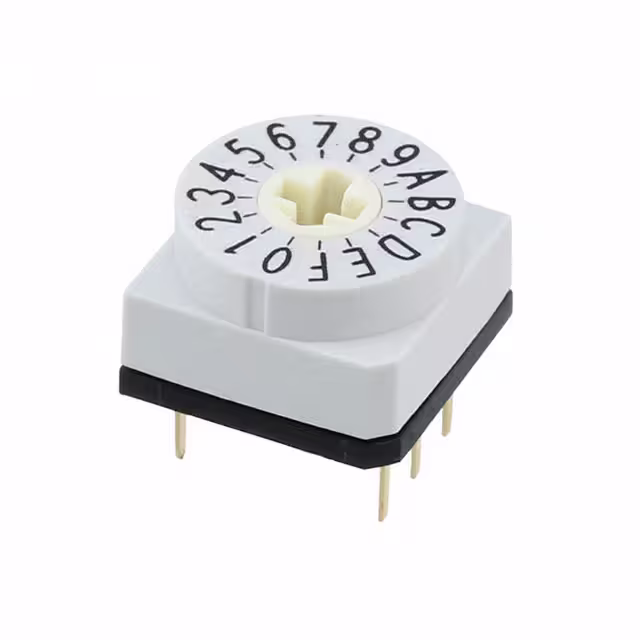

428527520917SW ROTARY DIP HEX COMP 0.15A 24V Würth Elektronik |
3,995 |
|
数据手册 |
WS-ROTV | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
