DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
428521520816SWITCH ROTARY DIP HEX 0.15A 24V Würth Elektronik |
590 |
|
数据手册 |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428427520910SWITCH ROTARY DIP BCD 0.15A 24V Würth Elektronik |
195 |
|
数据手册 |
WS-ROTU | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
428521320811SW ROTARY DIP BCD COMP 0.15A 24V Würth Elektronik |
1,133 |
|
数据手册 |
WS-ROSV | Tape & Reel (TR) | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
428521520810SWITCH ROTARY DIP BCD 0.15A 24V Würth Elektronik |
396 |
|
数据手册 |
WS-ROSV | Tape & Reel (TR) | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428521320817SW ROTARY DIP HEX COMP 0.15A 24V Würth Elektronik |
186 |
|
数据手册 |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428542320811SW ROTARY DIP BCD COMP 0.1A 42V Würth Elektronik |
986 |
|
数据手册 |
WS-ROSV | Tape & Reel (TR) | Active | BCD Complement | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|

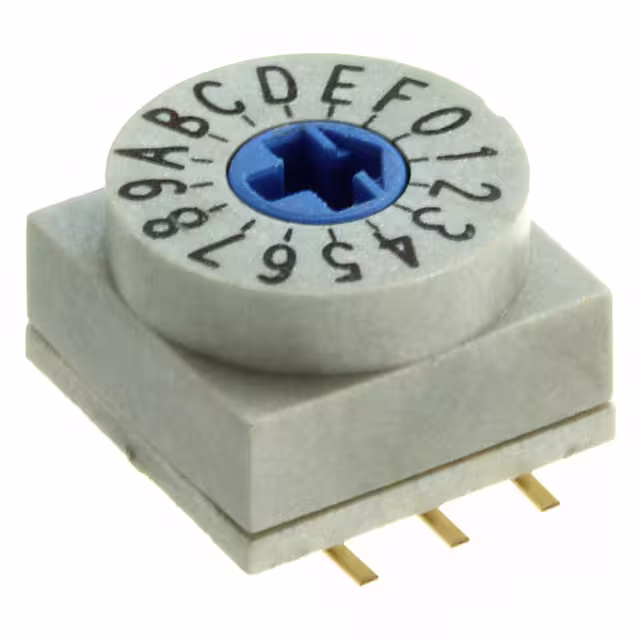

428521520817SW ROTARY DIP HEX COMP 0.15A 24V Würth Elektronik |
1,138 |
|
数据手册 |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

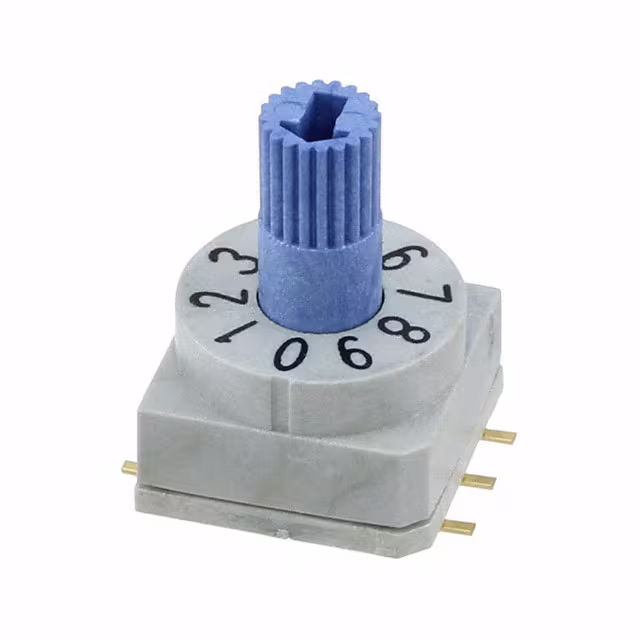

428521420911SW ROTARY DIP BCD COMP 0.15A 24V Würth Elektronik |
138 |
|
数据手册 |
WS-ROSV | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
428521520811SW ROTARY DIP BCD COMP 0.15A 24V Würth Elektronik |
513 |
|
数据手册 |
WS-ROSV | Tape & Reel (TR) | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

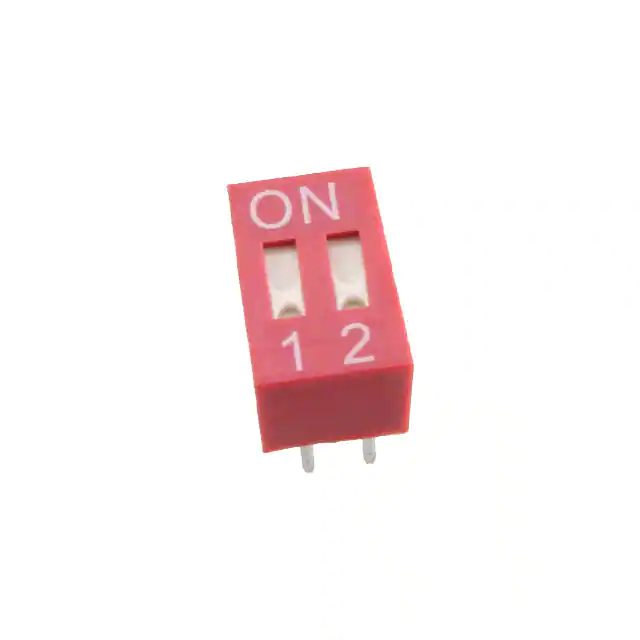

418117170902SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
4,367 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.224" (5.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
