上传BOM单
DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GDS08S04SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,996 |
|
数据手册 |
GDS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
1825006-8SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
6,269 |
|
数据手册 |
GDS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold Alloy | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

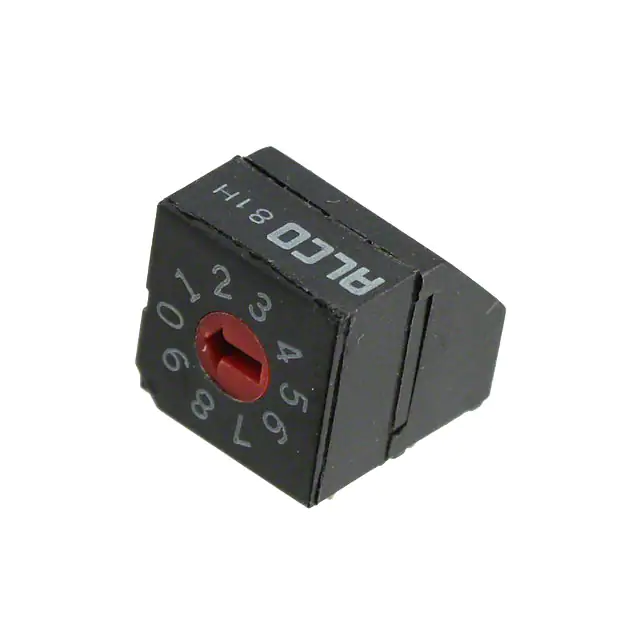

1825008-2SWITCH ROTARY DIP BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,067 |
|
数据手册 |
DRD | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
1-1571983-3SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
19,656 |
|
数据手册 |
GDH | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
1825360-1SWITCH SLIDE DIP SPST 0.1A 24V TE Connectivity ALCOSWITCH Switches |
1,860 |
|
数据手册 |
ADE | Tube | Active | SPST | 2 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

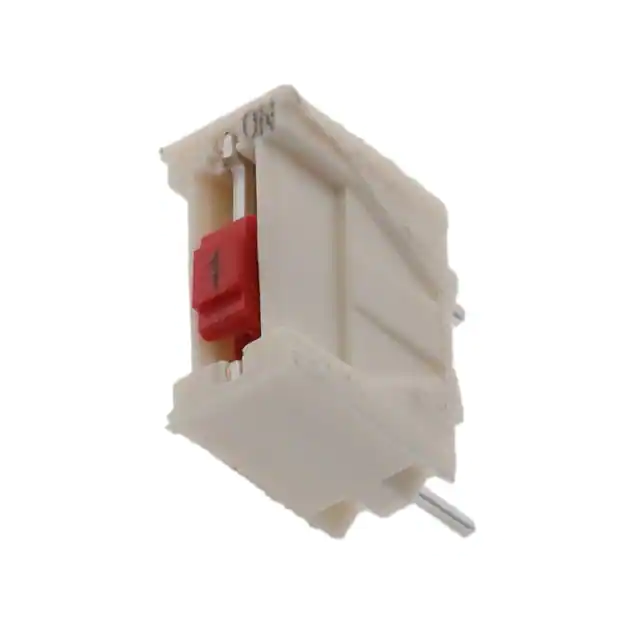

5161390-1SWITCH STANDARD DIP SPST TE Connectivity ALCOSWITCH Switches |
4,401 |
|
数据手册 |
- | Box | Active | SPST | 1 | - | - | Standard | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
ADE06S04SWITCH SLIDE DIP SPST 0.1A 24V TE Connectivity ALCOSWITCH Switches |
6,975 |
|
数据手册 |
ADE | Tube | Active | SPST | 6 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
2-1825059-3SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
19,924 |
|
数据手册 |
ADF | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
1825057-6SWITCH SLIDE DIP SPST 0.1A 24V TE Connectivity ALCOSWITCH Switches |
8,395 |
|
数据手册 |
ADE | Tube | Active | SPST | 7 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

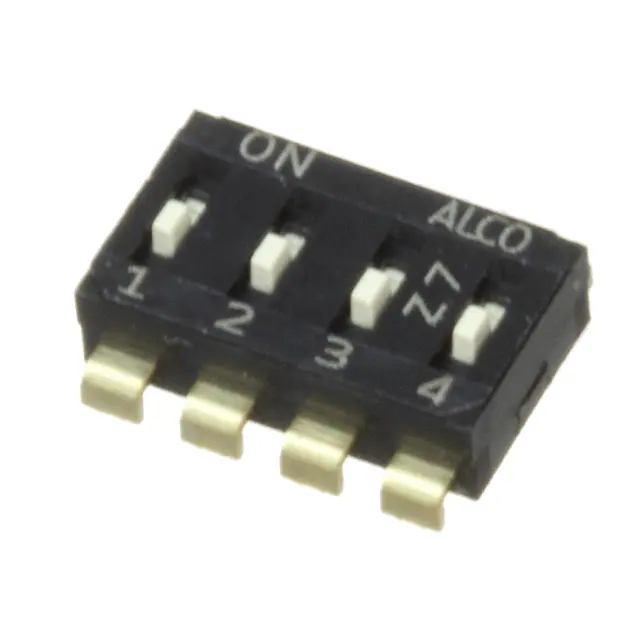

EDS04SNNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
700 |
|
数据手册 |
EDS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
