DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1571983-5SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,267 |
|
数据手册 |
GDH | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
EDSP06SGLNNTR04SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,484 |
|
数据手册 |
EDSP | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
5161390-4SWITCH STANDARD DIP SPST TE Connectivity ALCOSWITCH Switches |
559 |
|
数据手册 |
- | Box | Active | SPST | 4 | - | - | Standard | Raised | - | - | - | Through Hole | - | - | No | - | - |
|

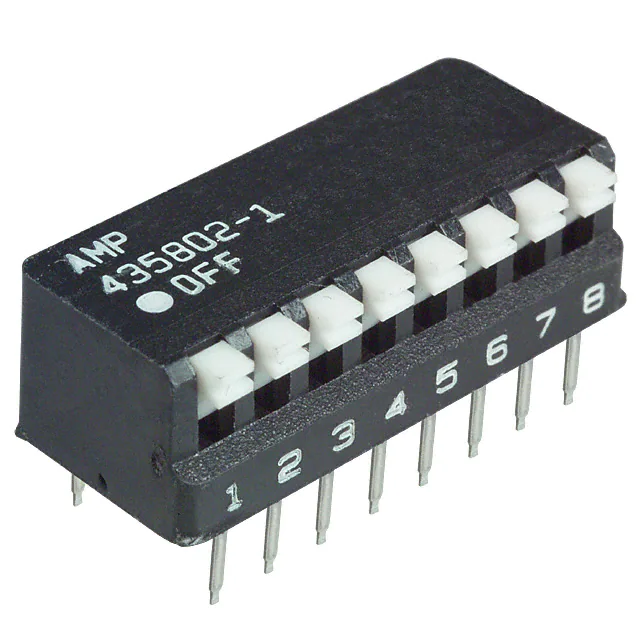

5435802-1SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
3,348 |
|
数据手册 |
7000 | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|

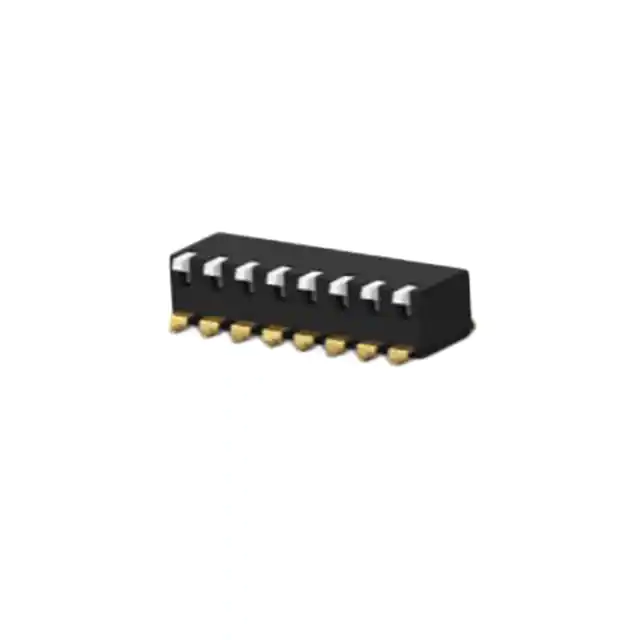

EDSP08SGLNNTR04SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,696 |
|
数据手册 |
EDSP | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
MRSSV0DG16THTSW ROTARY DIP GRY CODE 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,402 |
|
数据手册 |
MRSS | Tube | Active | Gray Code | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

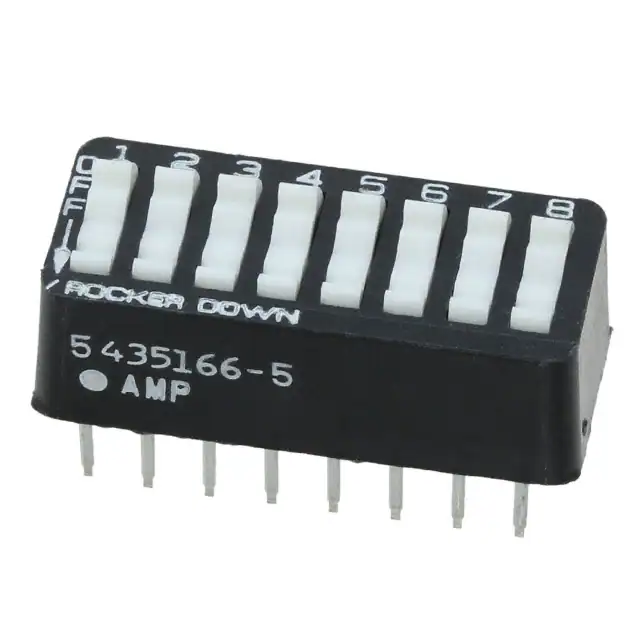

5435166-5SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
5,104 |
|
数据手册 |
7000 | Tube | Active | SPST | 8 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|

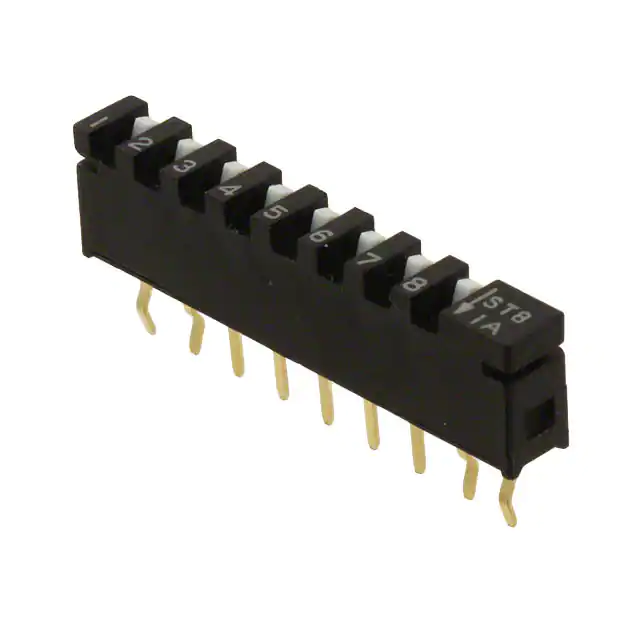

STV08SWITCH SLIDE DIP SPST 0.01A 5V TE Connectivity ALCOSWITCH Switches |
440 |
|
数据手册 |
STV | Tube | Active | SPST | 8 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
MRSSV1DR16SMGWTSWITCH ROTARY DIP HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,885 |
|
数据手册 |
MRSS | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1825002-7SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
5,007 |
|
数据手册 |
ADF | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
