| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

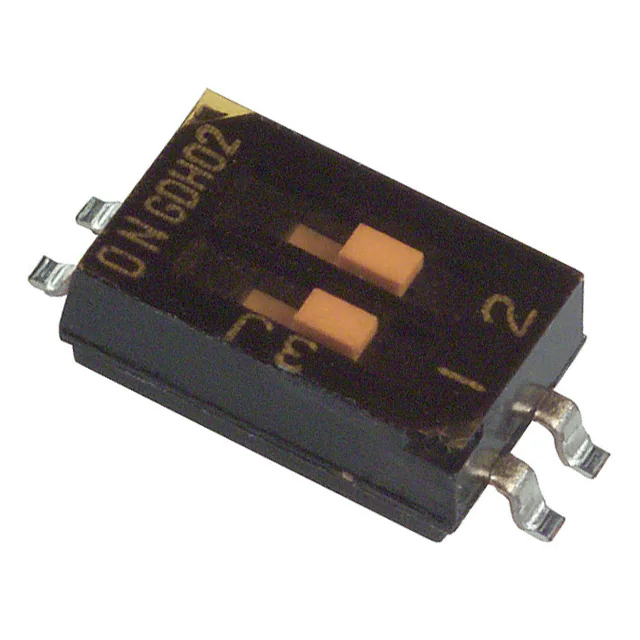

1571983-1SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
21,763 |
|
数据手册 |
GDH | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
2-1825058-5SWITCH SLIDE DIP SPST 0.1A 24V TE Connectivity ALCOSWITCH Switches |
2,826 |
|
数据手册 |
ADE | Tube | Active | SPST | 10 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

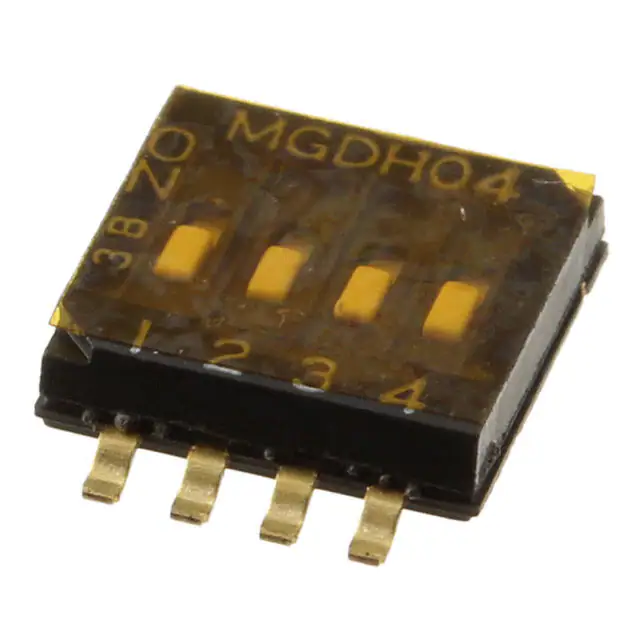

1825140-2SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
16,902 |
|
数据手册 |
MGDH | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.067" (1.70mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Tape Seal | -30°C ~ 85°C |
|

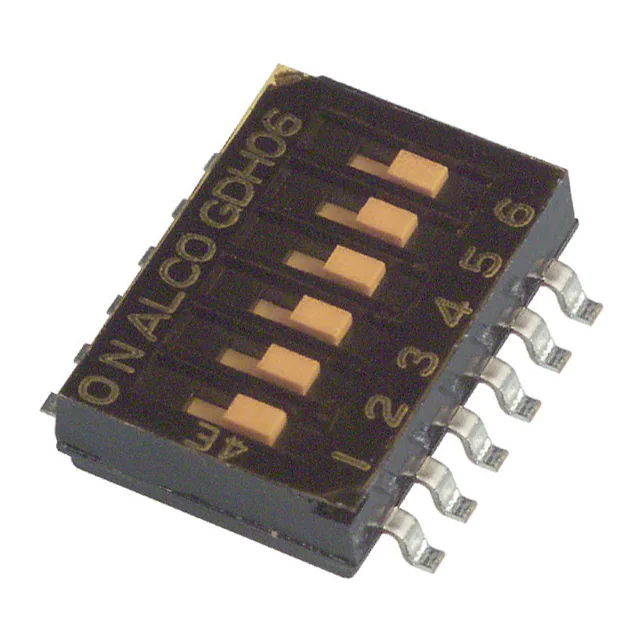

1571983-8SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
6,065 |
|
数据手册 |
GDH | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|

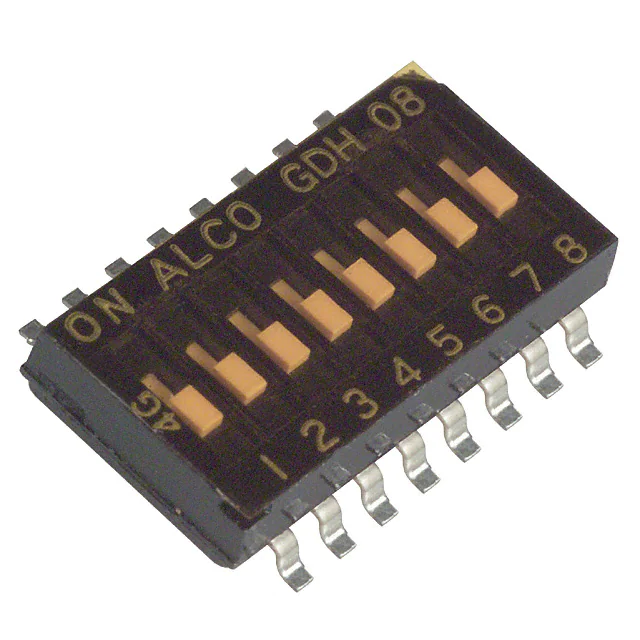

1-1571983-0SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
16,563 |
|
数据手册 |
GDH | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
1571983-3SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
18,092 |
|
数据手册 |
GDH | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
1825008-4SWITCH ROTARY DIP HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
12,128 |
|
数据手册 |
DRD | Bulk | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

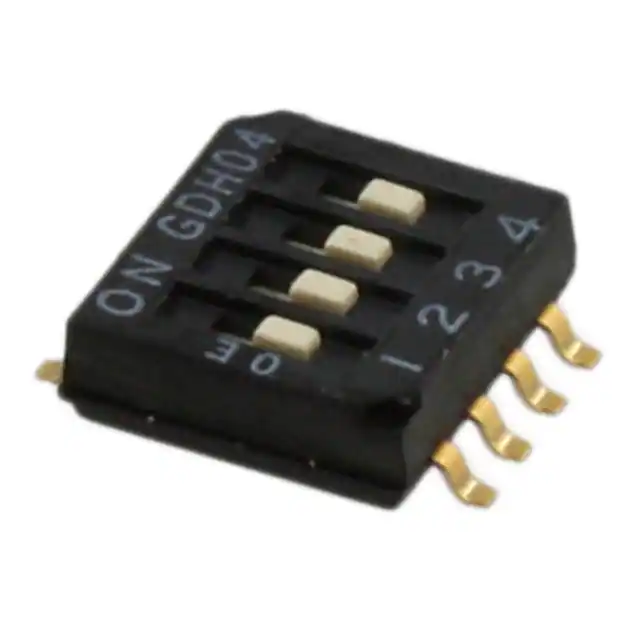

1571983-5SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
114,952 |
|
数据手册 |
GDH | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|

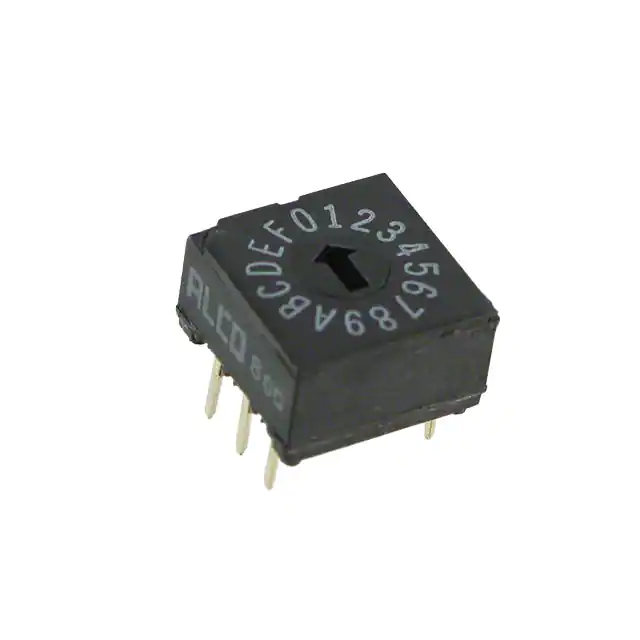

DRD16E04SWITCH ROTARY DIP HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,866 |
|
数据手册 |
DRD | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
1-1825007-1SW ROTARY DIP HEX COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
14,773 |
|
数据手册 |
DRD | Tube | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
