箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

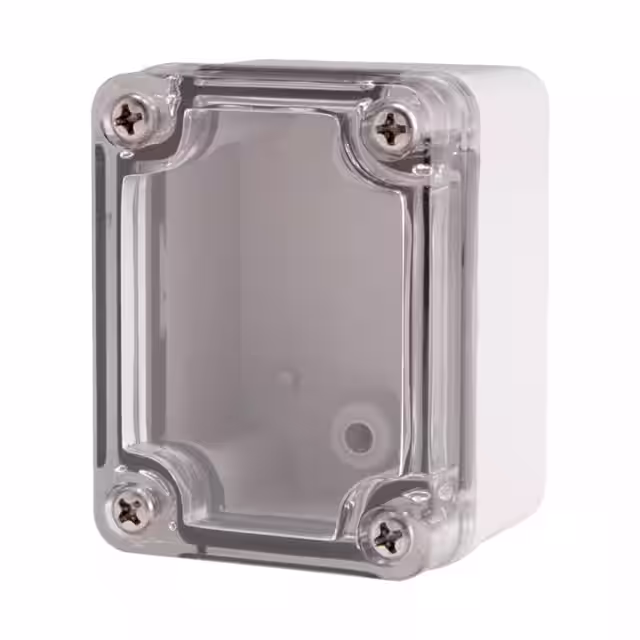

BC-ATS-050604BOX ABS CLEAR 2.56"L X 1.97"W Boxco |
3,478 |
|
数据手册 |
S | Bulk | Active | Box | 2.559" L x 1.969" W (65.00mm x 50.00mm) | 1.772" (45.00mm) | 5.04in² (32.5cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
BC-ATS-060905BOX ABS CLEAR 3.74"L X 2.56"W Boxco |
3,530 |
|
数据手册 |
S | Bulk | Active | Box | 3.740" L x 2.559" W (95.00mm x 65.00mm) | 2.165" (55.00mm) | 9.57in² (61.8cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

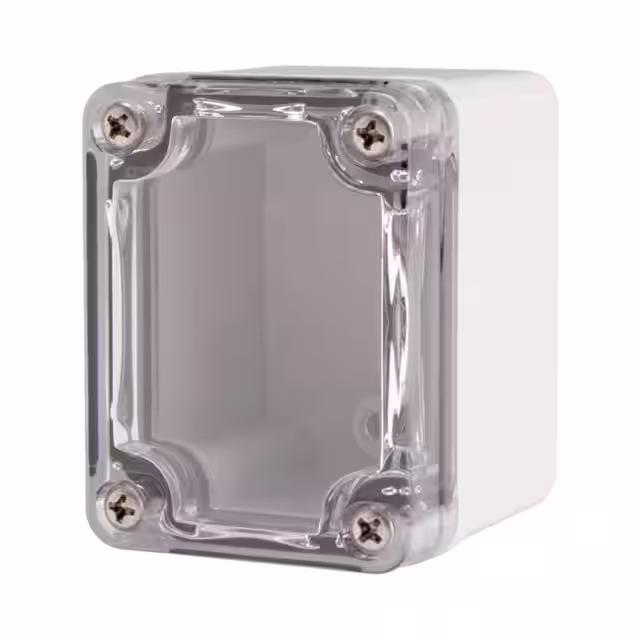

BC-ATS-050605BOX ABS CLEAR 2.56"L X 1.97"W Boxco |
1,092 |
|
数据手册 |
S | Bulk | Active | Box | 2.559" L x 1.969" W (65.00mm x 50.00mm) | 2.165" (55.00mm) | 5.04in² (32.5cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

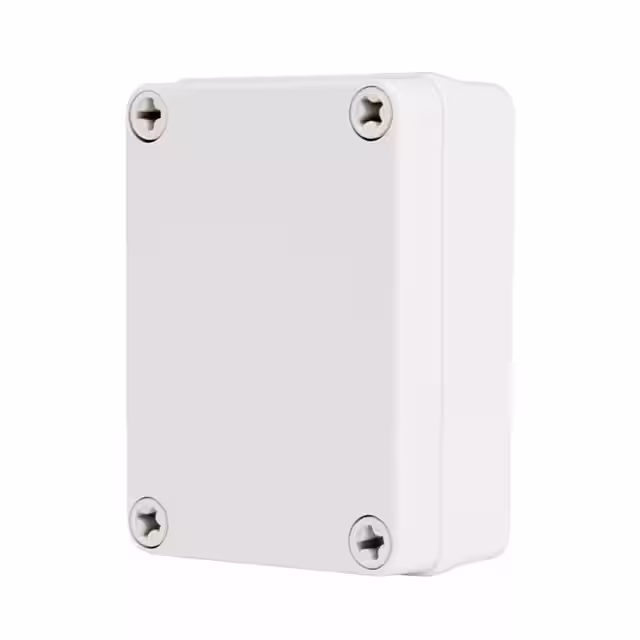

BC-AGS-081104BOX ABS LGT GRY 4.33"L X 3.15"W Boxco |
2,292 |
|
数据手册 |
S | Bulk | Active | Box | 4.331" L x 3.150" W (110.00mm x 80.00mm) | 1.772" (45.00mm) | 13.6in² (88cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

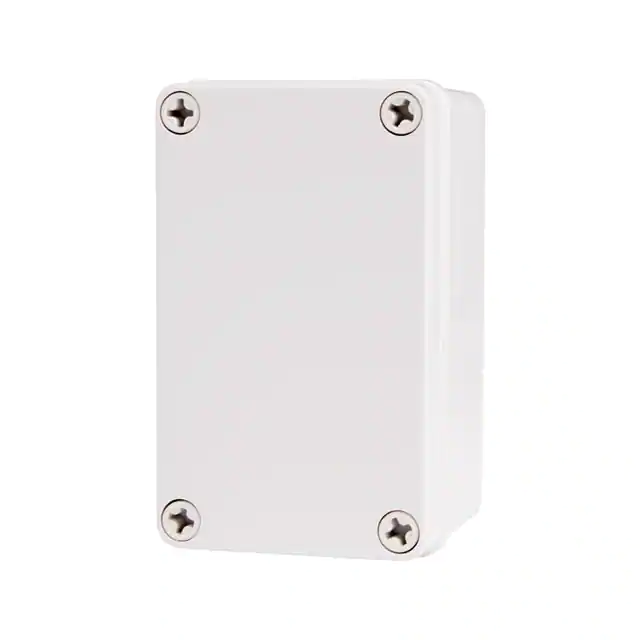

BC-AGS-081307BOX ABS LGT GRY 5.12"L X 3.15"W Boxco |
4,545 |
|
数据手册 |
S | Bulk | Active | Box | 5.118" L x 3.150" W (130.00mm x 80.00mm) | 2.756" (70.00mm) | 16.1in² (104cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

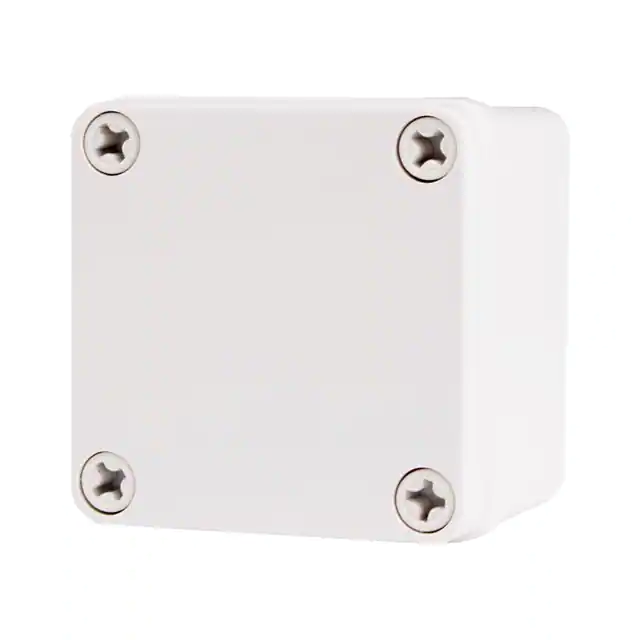

BC-AGS-080806BOX ABS LGT GRY 3.15"L X 3.15"W Boxco |
1,104 |
|
数据手册 |
S | Bulk | Active | Box | 3.150" L x 3.150" W (80.00mm x 80.00mm) | 2.362" (60.00mm) | 9.92in² (64.0cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
BC-ATS-081107BOX ABS CLEAR 4.33"L X 3.15"W Boxco |
2,670 |
|
数据手册 |
S | Bulk | Active | Box | 4.331" L x 3.150" W (110.00mm x 80.00mm) | 2.756" (70.00mm) | 13.6in² (88cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
BC-CTS-050604BOX PLASTIC CLR 2.56"L X 1.97"W Boxco |
2,426 |
|
数据手册 |
S | Bulk | Active | Box | 2.559" L x 1.969" W (65.00mm x 50.00mm) | 1.772" (45.00mm) | 5.04in² (32.5cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-CGS-050604BOX PLAS LGT GRY 2.56"L X 1.97"W Boxco |
2,548 |
|
数据手册 |
S | Bulk | Active | Box | 2.559" L x 1.969" W (65.00mm x 50.00mm) | 1.772" (45.00mm) | 5.04in² (32.5cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

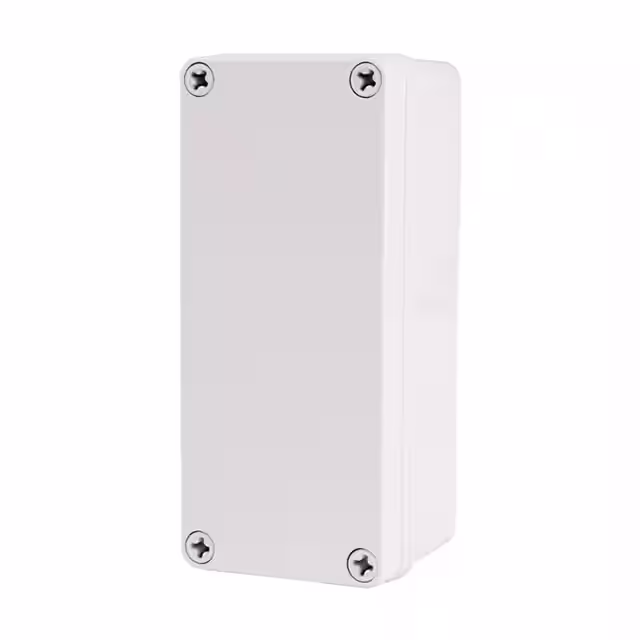

BC-AGS-081807BOX ABS LGT GRY 7.09"L X 3.15"W Boxco |
4,044 |
|
数据手册 |
S | Bulk | Active | Box | 7.087" L x 3.150" W (180.00mm x 80.00mm) | 2.756" (70.00mm) | 22.3in² (144cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
