上传BOM单
箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BC-CTP-203015BOX PLAS CLEAR 11.81"L X 7.87"W Boxco |
2,070 |
|
数据手册 |
P | Bulk | Active | Box | 11.811" L x 7.874" W (300.00mm x 200.00mm) | 5.906" (150.00mm) | 93.0in² (600cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-ATP-303015BOX ABS CLEAR 11.81"L X 11.81"W Boxco |
1,096 |
|
数据手册 |
P | Bulk | Active | Box | 11.811" L x 11.811" W (300.00mm x 300.00mm) | 5.906" (150.00mm) | 140in² (900cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-CTS-192818BOX PLAS CLEAR 11.02"L X 7.48"W Boxco |
4,490 |
|
数据手册 |
S | Bulk | Active | Box | 11.024" L x 7.480" W (280.00mm x 190.00mm) | 7.087" (180.00mm) | 82.5in² (532cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-ATP-303018BOX ABS CLEAR 11.81"L X 11.81"W Boxco |
4,938 |
|
数据手册 |
P | Bulk | Active | Box | 11.811" L x 11.811" W (300.00mm x 300.00mm) | 7.087" (180.00mm) | 140in² (900cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-AL-151309BOX ALUM GRAY 5.91"L X 5.2"W Boxco |
3,103 |
|
数据手册 |
AE | Bulk | Active | Box | 5.906" L x 5.197" W (150.00mm x 132.00mm) | 3.543" (90.00mm) | 30.7in² (198cm²) | Lift-Off Screw Cover | Metal, Aluminum | Gray | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | - |
|
BC-AGP-353515BOX ABS LGT GRY 13.78"LX13.78"W Boxco |
2,239 |
|
数据手册 |
P | Bulk | Active | Box | 13.780" L x 13.780" W (350.00mm x 350.00mm) | 5.906" (150.00mm) | 190in² (1225cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-ATP-283813BOX ABS CLEAR 14.96"L X 11.02"W Boxco |
4,676 |
|
数据手册 |
P | Bulk | Active | Box | 14.961" L x 11.024" W (380.00mm x 280.00mm) | 5.118" (130.00mm) | 165in² (1064cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-AL-122208BOX ALUM GRAY 8.66"L X 4.72"W Boxco |
2,524 |
|
数据手册 |
AE | Bulk | Active | Box | 8.661" L x 4.724" W (220.00mm x 120.00mm) | 3.189" (81.00mm) | 40.9in² (264cm²) | Lift-Off Screw Cover | Metal, Aluminum | Gray | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | - |
|

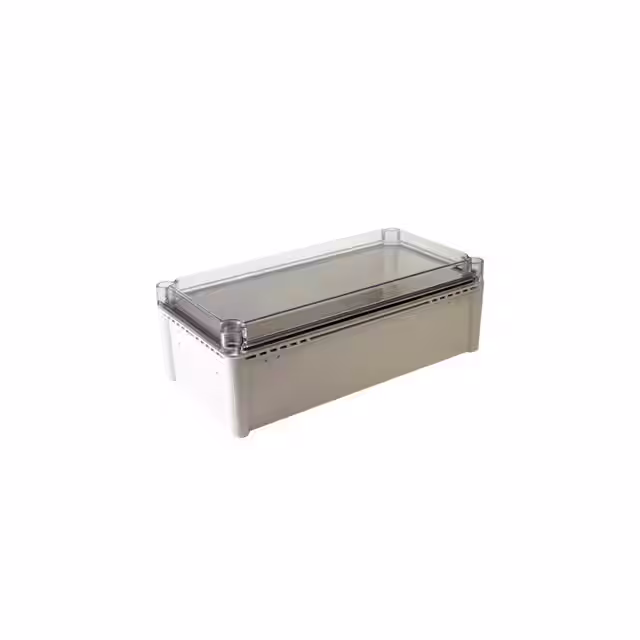

BC-CTS-193813BOX PLAS CLEAR 14.96"L X 7.48"W Boxco |
4,819 |
|
数据手册 |
S | Bulk | Active | Box | 14.961" L x 7.480" W (380.00mm x 190.00mm) | 5.118" (130.00mm) | 112in² (722cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

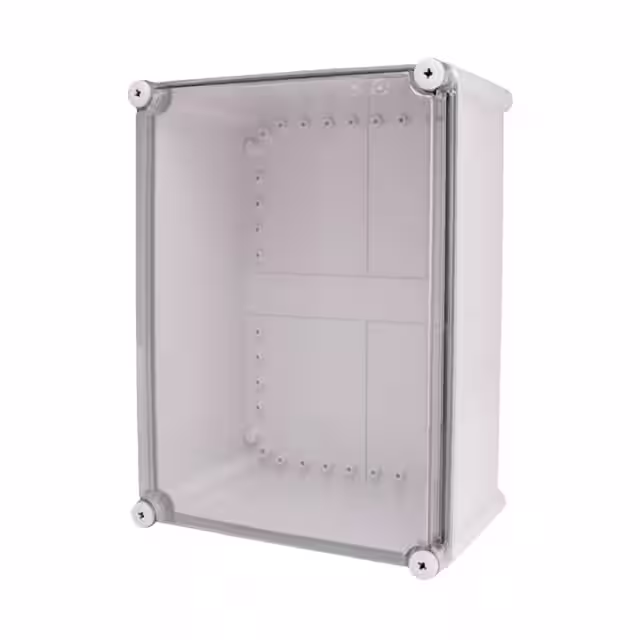

BC-ATS-283818BOX ABS CLEAR 14.96"L X 11.02"W Boxco |
4,459 |
|
数据手册 |
S | Bulk | Active | Box | 14.961" L x 11.024" W (380.00mm x 280.00mm) | 7.087" (180.00mm) | 165in² (1064cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
