上传BOM单
箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BC-CTP-162610BOX PLASTIC CLR 10.24"L X 6.3"W Boxco |
1,980 |
|
数据手册 |
P | Bulk | Active | Box | 10.236" L x 6.299" W (260.00mm x 160.00mm) | 3.937" (100.00mm) | 64.5in² (416cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

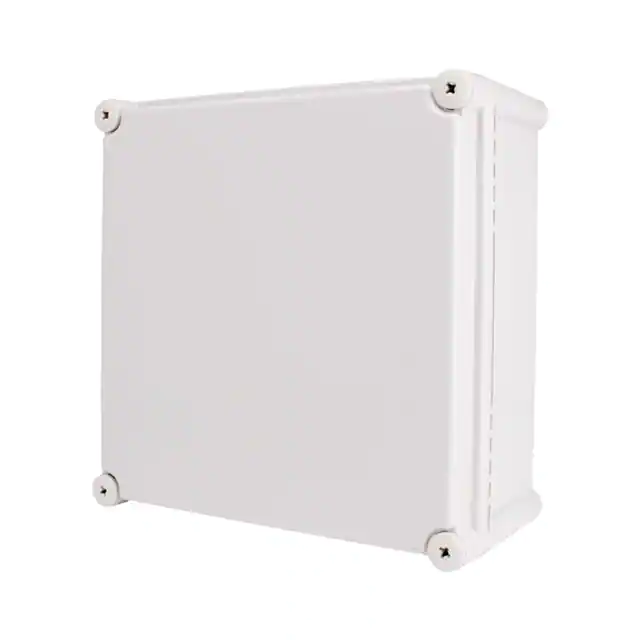

BC-AGS-282813BOX ABS LGT GRY 11.02"LX11.02"W Boxco |
4,572 |
|
数据手册 |
S | Bulk | Active | Box | 11.024" L x 11.024" W (280.00mm x 280.00mm) | 5.118" (130.00mm) | 122in² (784cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

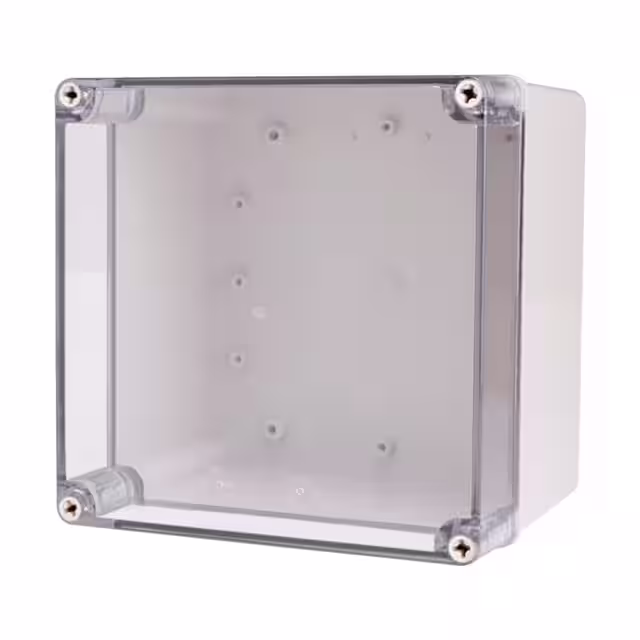

BC-ATS-202016BOX ABS CLEAR 7.87"L X 7.87"W Boxco |
4,576 |
|
数据手册 |
S | Bulk | Active | Box | 7.874" L x 7.874" W (200.00mm x 200.00mm) | 6.299" (160.00mm) | 62.0in² (400cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

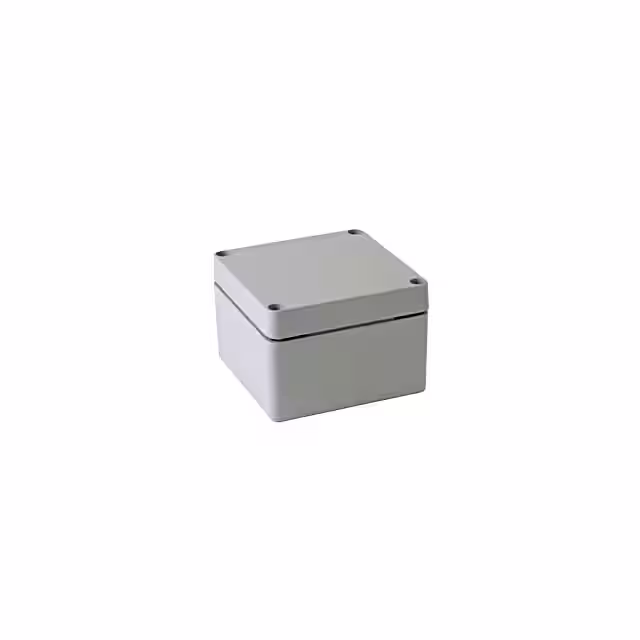

BC-AL-101008BOX ALUM GRAY 3.94"L X 3.94"W Boxco |
4,264 |
|
数据手册 |
AE | Bulk | Active | Box | 3.937" L x 3.937" W (100.00mm x 100.00mm) | 3.189" (81.00mm) | 15.5in² (100cm²) | Lift-Off Screw Cover | Metal, Aluminum | Gray | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | - |
|
BC-CGS-152016BOX PC GRAY 7.874"L X 5.906"W Boxco |
3,683 |
|
数据手册 |
S | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 6.299" (160.00mm) | 46.5in² (300cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-CTS-152016BOX PLASTIC CLR 7.87"L X 5.91"W Boxco |
1,319 |
|
数据手册 |
S | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 6.299" (160.00mm) | 46.5in² (300cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-AGP-203015BOX ABS LGT GRY 11.81"L X 7.87"W Boxco |
3,972 |
|
数据手册 |
P | Bulk | Active | Box | 11.811" L x 7.874" W (300.00mm x 200.00mm) | 5.906" (150.00mm) | 93.0in² (600cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

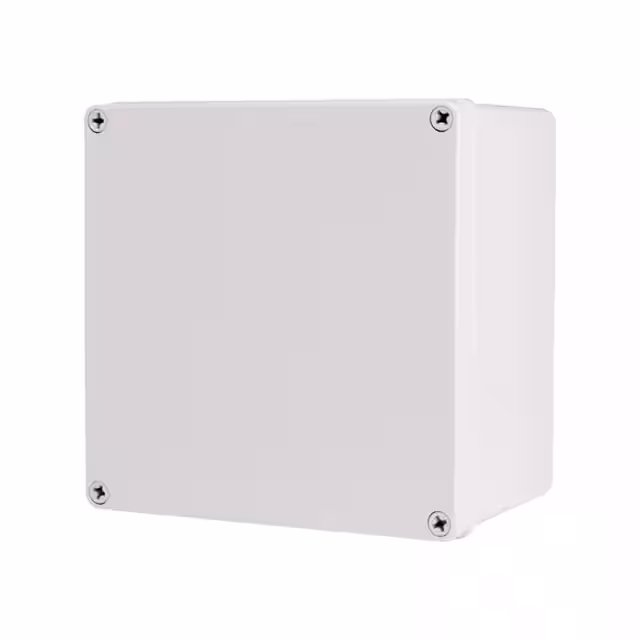

BC-CGS-202013BOX PLAS LGT GRY 7.87"L X 7.87"W Boxco |
2,518 |
|
数据手册 |
S | Bulk | Active | Box | 7.874" L x 7.874" W (200.00mm x 200.00mm) | 5.118" (130.00mm) | 62.0in² (400cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

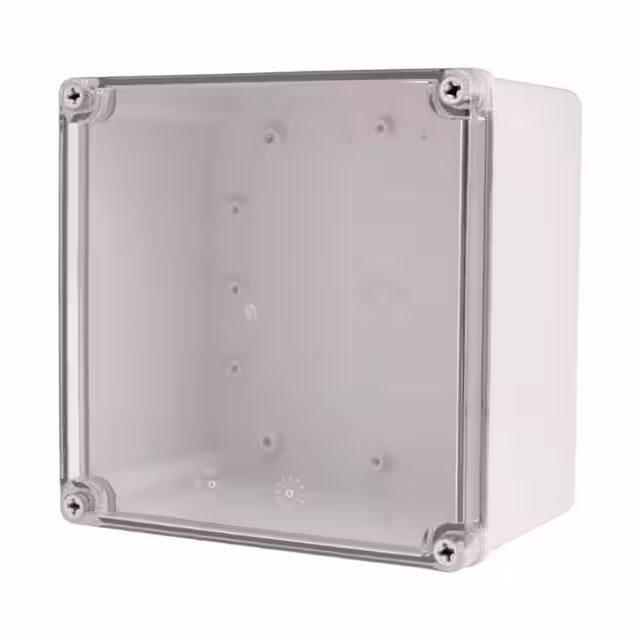

BC-CTS-202013BOX PLASTIC CLR 7.87"L X 7.87"W Boxco |
3,071 |
|
数据手册 |
S | Bulk | Active | Box | 7.874" L x 7.874" W (200.00mm x 200.00mm) | 5.118" (130.00mm) | 62.0in² (400cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

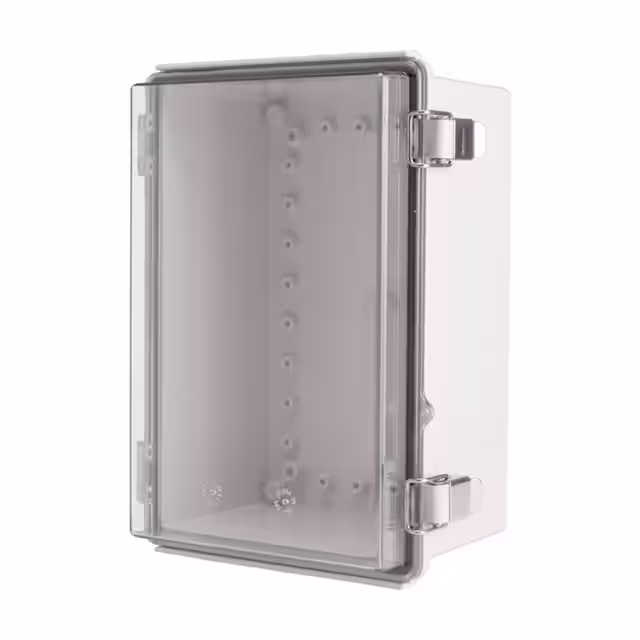

BC-ATP-192814BOX ABS CLEAR 11.02"L X 7.48"W Boxco |
1,390 |
|
数据手册 |
P | Bulk | Active | Box | 11.024" L x 7.480" W (280.00mm x 190.00mm) | 5.512" (140.00mm) | 82.5in² (532cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
