箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BC-CTS-080806BOX PLASTIC CLR 3.15"L X 3.15"W Boxco |
2,531 |
|
数据手册 |
S | Bulk | Active | Box | 3.150" L x 3.150" W (80.00mm x 80.00mm) | 2.362" (60.00mm) | 9.92in² (64.0cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

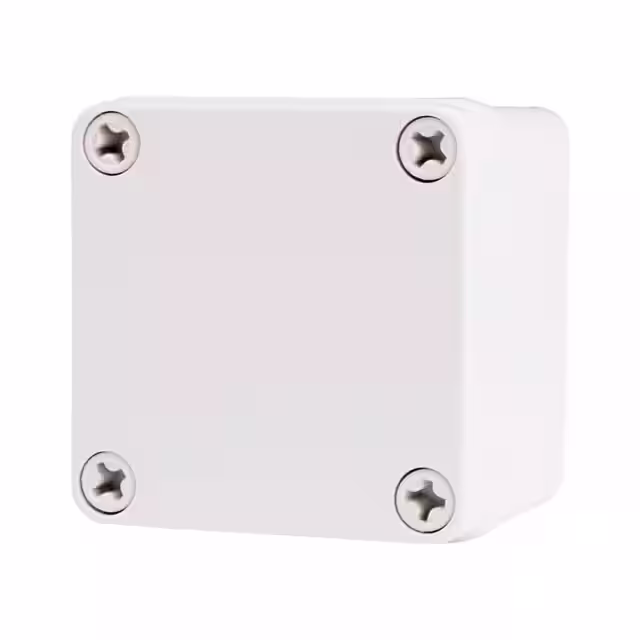

BC-CGS-080806BOX PLAS LGT GRY 3.15"L X 3.15"W Boxco |
1,079 |
|
数据手册 |
S | Bulk | Active | Box | 3.150" L x 3.150" W (80.00mm x 80.00mm) | 2.362" (60.00mm) | 9.92in² (64.0cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-CTS-071005BOX PLASTIC CLR 4.13"L X 2.95"W Boxco |
1,695 |
|
数据手册 |
S | Bulk | Active | Box | 4.134" L x 2.953" W (105.00mm x 75.00mm) | 2.165" (55.00mm) | 12.2in² (79cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

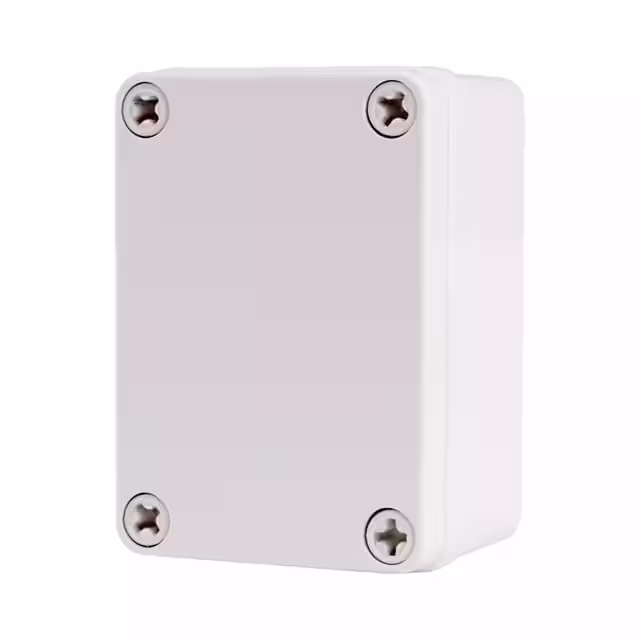

BC-CGS-071005BOX PLAS LGT GRY 4.13"L X 2.95"W Boxco |
1,009 |
|
数据手册 |
S | Bulk | Active | Box | 4.134" L x 2.953" W (105.00mm x 75.00mm) | 2.165" (55.00mm) | 12.2in² (79cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-CTS-081108BOX PLASTIC CLR 4.33"L X 3.15"W Boxco |
4,880 |
|
数据手册 |
S | Bulk | Active | Box | 4.331" L x 3.150" W (110.00mm x 80.00mm) | 3.346" (85.00mm) | 13.6in² (88cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-ATP-091208BOX ABS CLEAR 4.72"L X 3.54"W Boxco |
4,807 |
|
数据手册 |
P | Bulk | Active | Box | 4.724" L x 3.543" W (120.00mm x 90.00mm) | 3.346" (85.00mm) | 16.7in² (108cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-ATS-081605BOX ABS CLEAR 6.3"L X 3.15"W Boxco |
4,010 |
|
数据手册 |
S | Bulk | Active | Box | 6.299" L x 3.150" W (160.00mm x 80.00mm) | 2.165" (55.00mm) | 19.8in² (128cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

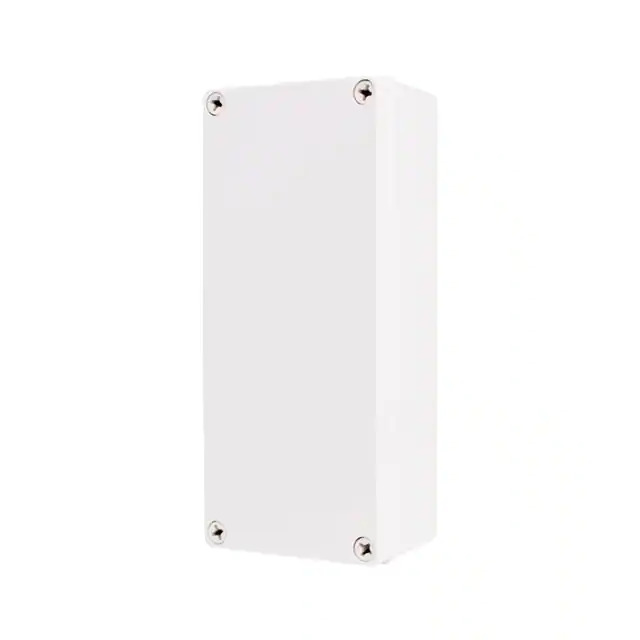

BC-AGS-102307BOX ABS LGT GRY 9.06"L X 3.94"W Boxco |
1,546 |
|
数据手册 |
S | Bulk | Active | Box | 9.055" L x 3.937" W (230.00mm x 100.00mm) | 2.756" (70.00mm) | 35.6in² (230cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

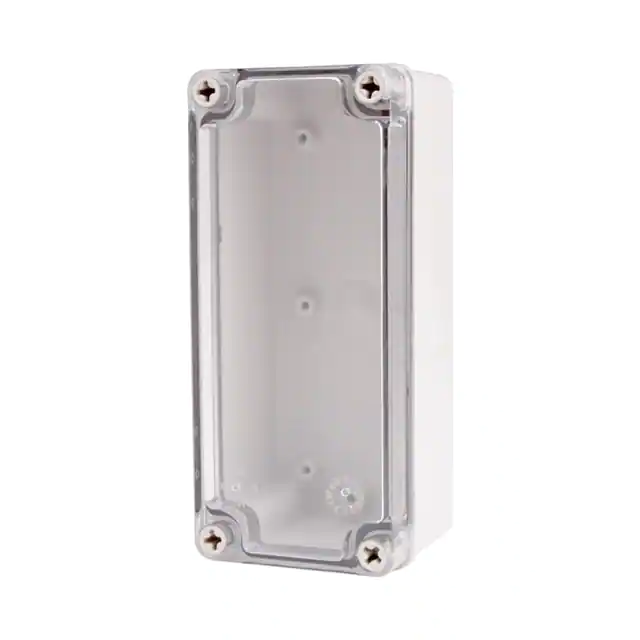

BC-ATS-081808BOX ABS CLEAR 7.09"L X 3.15"W Boxco |
4,195 |
|
数据手册 |
S | Bulk | Active | Box | 7.087" L x 3.150" W (180.00mm x 80.00mm) | 3.346" (85.00mm) | 22.3in² (144cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

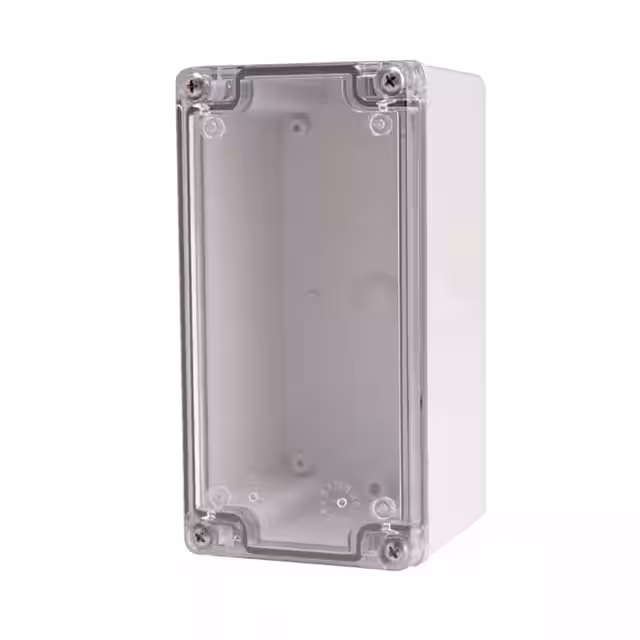

BC-ATS-081608BOX ABS CLEAR 6.3"L X 3.15"W Boxco |
3,809 |
|
数据手册 |
S | Bulk | Active | Box | 6.299" L x 3.150" W (160.00mm x 80.00mm) | 3.346" (85.00mm) | 19.8in² (128cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
