箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
252,ALBOX ABS ALMOND 5.62"L X 3.25"W Serpac |
3,858 |
|
数据手册 |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.000" (50.80mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
252I,ALBOX ABS ALMOND 5.62"L X 3.25"W Serpac |
4,615 |
|
数据手册 |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.000" (50.80mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|

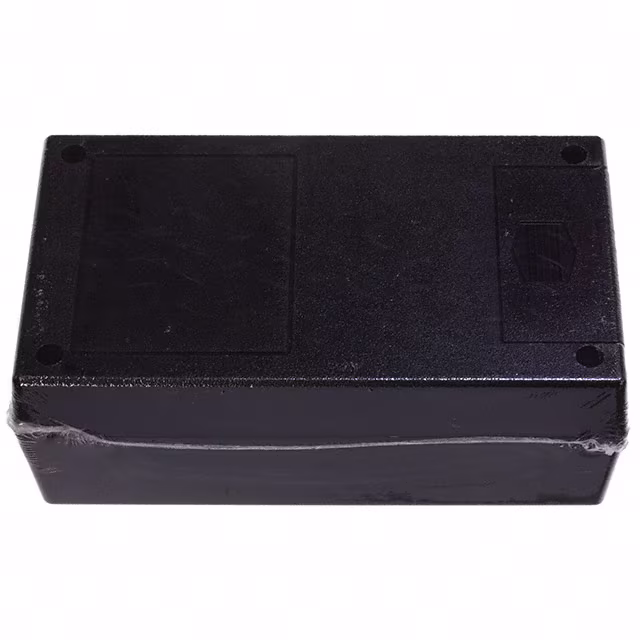

252I,BKBOX ABS BLACK 5.62"L X 3.25"W Serpac |
2,501 |
|
数据手册 |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.000" (50.80mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|

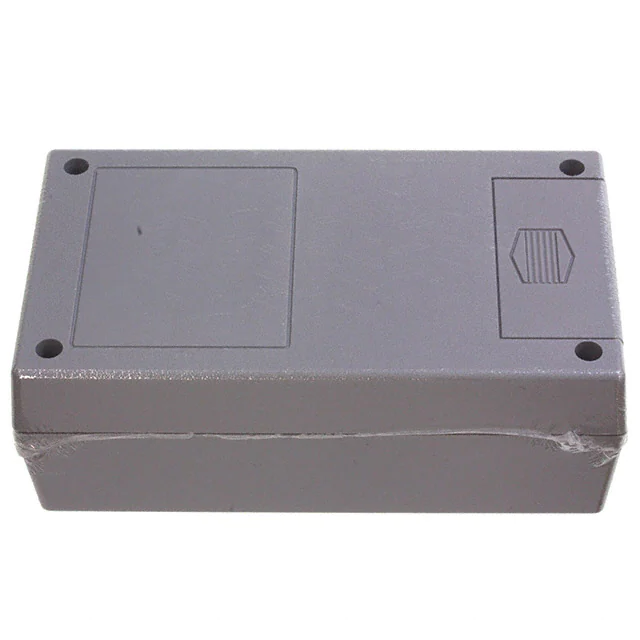

252I,GYBOX ABS GRAY 5.62"L X 3.25"W Serpac |
1,662 |
|
数据手册 |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.000" (50.80mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
153RAC,BKBOX ABS BLACK 5.62"L X 3.25"W Serpac |
3,805 |
|
数据手册 |
- | Box | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.500" (63.50mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP40, NEMA 1 | UL94 HB |
|
153RIAC,BKBOX ABS BLACK 5.62"L X 3.25"W Serpac |
1,039 |
|
数据手册 |
- | Box | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.500" (63.50mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP40, NEMA 1 | UL94 HB |
|
WM092,ALBOX ABS ALMOND 9.5"L X 6.34"W Serpac |
3,649 |
|
数据手册 |
WM | Box | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 1.600" (40.64mm) | 60.2in² (388cm²) | Cover Included | Plastic, ABS | Almond | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
WM092,GYBOX ABS GRAY 9.5"L X 6.34"W Serpac |
1,848 |
|
数据手册 |
WM | Box | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 1.600" (40.64mm) | 60.2in² (388cm²) | Cover Included | Plastic, ABS | Gray | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
WM092I,ALBOX ABS ALMOND 9.5"L X 6.34"W Serpac |
1,292 |
|
数据手册 |
WM | Box | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 1.600" (40.64mm) | 60.2in² (388cm²) | Cover Included | Plastic, ABS | Almond | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|

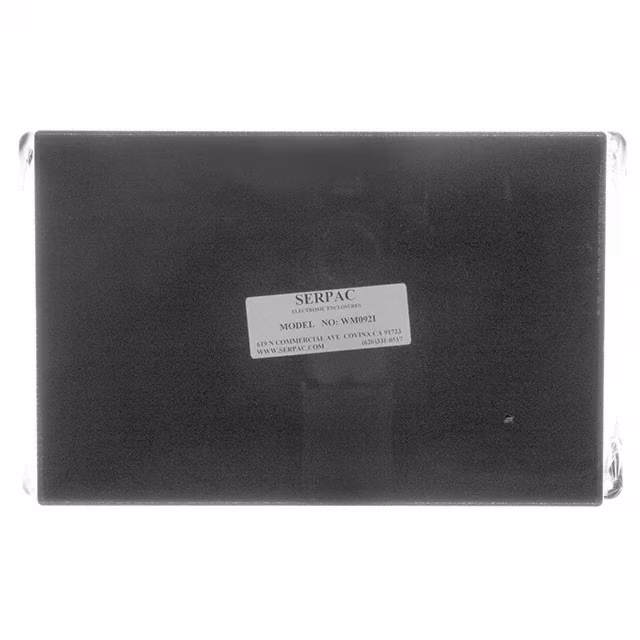

WM092I,BKBOX ABS BLACK 9.5"L X 6.34"W Serpac |
3,918 |
|
数据手册 |
WM | Box | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 1.600" (40.64mm) | 60.2in² (388cm²) | Cover Included | Plastic, ABS | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
