箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
233W,GYBOX ABS GRAY 4.38"L X 3.25"W Serpac |
2,680 |
|
数据手册 |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 2.500" (63.50mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
233WI,ALBOX ABS ALMOND 4.38"L X 3.25"W Serpac |
3,425 |
|
数据手册 |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 2.500" (63.50mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
233WI,BKBOX ABS BLACK 4.38"L X 3.25"W Serpac |
4,086 |
|
数据手册 |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 2.500" (63.50mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
233WI,GYBOX ABS GRAY 4.38"L X 3.25"W Serpac |
1,155 |
|
数据手册 |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 2.500" (63.50mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
251,GYBOX ABS GRAY 5.62"L X 3.25"W Serpac |
4,515 |
|
数据手册 |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 1.500" (38.10mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
1532AA,BKBOX ABS BLACK 5.62"L X 3.25"W Serpac |
3,552 |
|
数据手册 |
- | Box | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.500" (63.50mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP40, NEMA 1 | UL94 HB |
|
153RI4AA,BKBOX ABS BLACK 5.62"L X 3.25"W Serpac |
3,202 |
|
数据手册 |
- | Box | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.500" (63.50mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP40, NEMA 1 | UL94 HB |
|

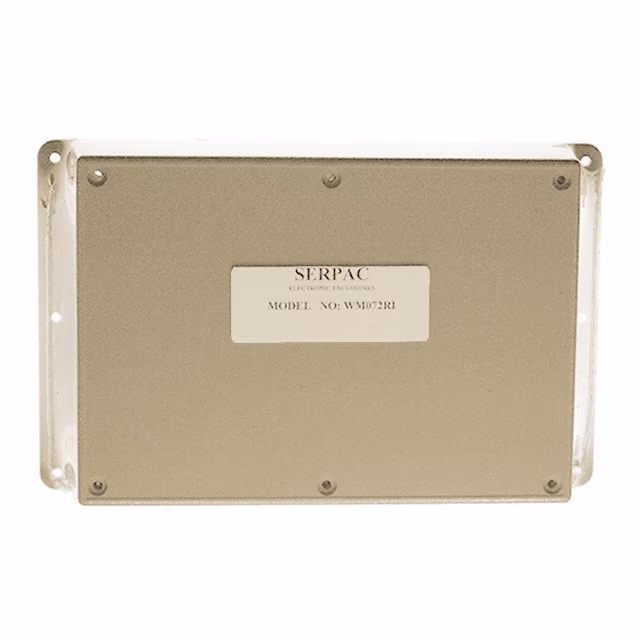

WM072RI,ALBOX ABS ALMOND 6.88"L X 4.88"W Serpac |
1,785 |
|
数据手册 |
WM | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.600" (40.64mm) | 33.6in² (217cm²) | Cover Included | Plastic, ABS | Almond | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
WM072RI,BKBOX ABS BLACK 6.88"L X 4.88"W Serpac |
2,416 |
|
数据手册 |
WM | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.600" (40.64mm) | 33.6in² (217cm²) | Cover Included | Plastic, ABS | Black | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|

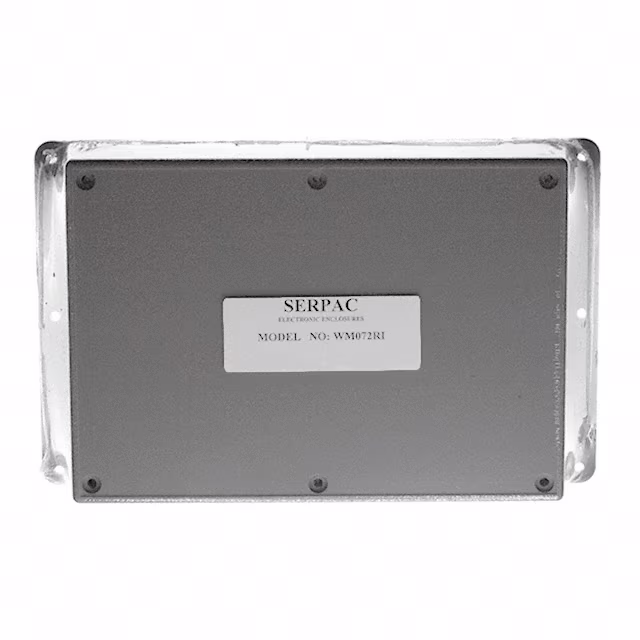

WM072RI,GYBOX ABS GRAY 6.88"L X 4.88"W Serpac |
1,725 |
|
数据手册 |
WM | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.600" (40.64mm) | 33.6in² (217cm²) | Cover Included | Plastic, ABS | Gray | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
