箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

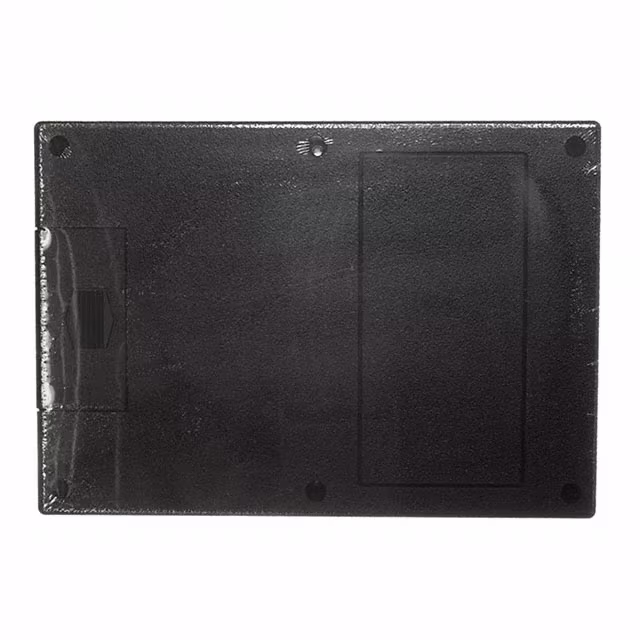

273RI,BKBOX ABS BLACK 6.88"L X 4.88"W Serpac |
2,138 |
|
数据手册 |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.500" (63.50mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V, Front Access, PCB Supports | IP40, NEMA 1 | UL94 HB |
|

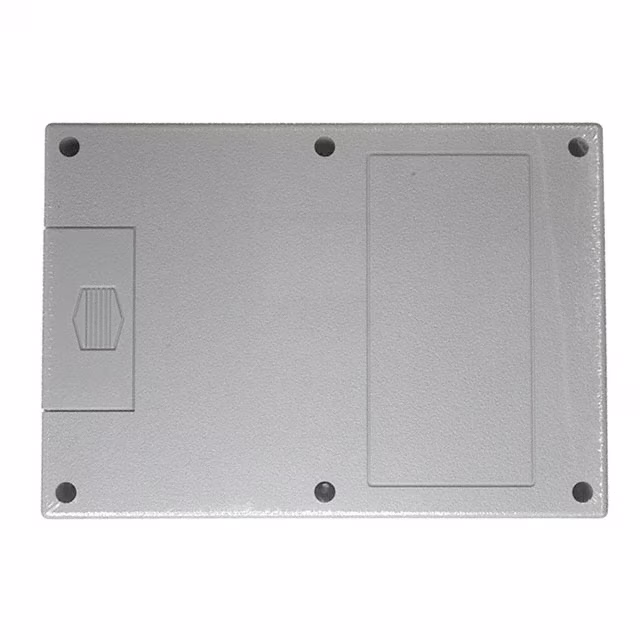

273RI,GYBOX ABS GRAY 6.88"L X 4.88"W Serpac |
1,204 |
|
数据手册 |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.500" (63.50mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, Front Access, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
172RC,ALBOX PLSTC AMD/CL 6.88"L X 4.88"W Serpac |
2,607 |
|
数据手册 |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.000" (50.80mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, Polycarbonate | Almond, Clear Cover/Door | 0.100" (2.54mm) | Front Access, PCB Supports | IP40, NEMA 1 | - |
|
172RC,BKBOX PLAS BLK/CLR 6.88"L X 4.88"W Serpac |
4,422 |
|
数据手册 |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.000" (50.80mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, Polycarbonate | Black, Clear Cover/Door | 0.100" (2.54mm) | Front Access, PCB Supports | IP40, NEMA 1 | - |
|
172RC,GYBOX PLASTIC 6.88"L X 4.88"W Serpac |
1,290 |
|
数据手册 |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.000" (50.80mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.100" (2.54mm) | Front Access, PCB Supports | IP40, NEMA 1 | - |
|

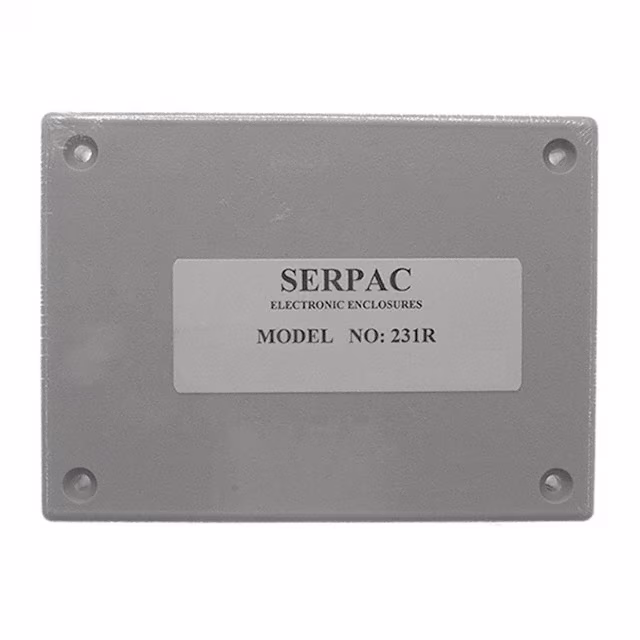

231R,ALBOX ABS ALMOND 4.38"L X 3.25"W Serpac |
4,355 |
|
数据手册 |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.500" (38.10mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | Battery Compartment, 9V, Front Access, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
231R,BKBOX ABS BLACK 4.38"L X 3.25"W Serpac |
3,933 |
|
数据手册 |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.500" (38.10mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V, Front Access, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
231R,GYBOX ABS GRAY 4.38"L X 3.25"W Serpac |
1,601 |
|
数据手册 |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.500" (38.10mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, Front Access, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
231RI,ALBOX ABS ALMOND 4.38"L X 3.25"W Serpac |
3,207 |
|
数据手册 |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.500" (38.10mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | Battery Compartment, 9V, Front Access, PCB Supports | IP40, NEMA 1 | UL94 HB |
|

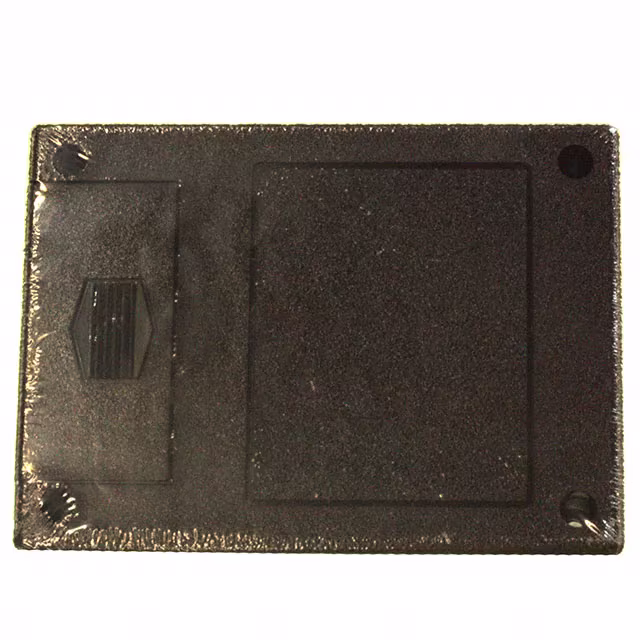

231RI,BKBOX ABS BLACK 4.38"L X 3.25"W Serpac |
2,232 |
|
数据手册 |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.500" (38.10mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V, Front Access, PCB Supports | IP40, NEMA 1 | UL94 HB |
