汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC776-1X-12C-D-XRELAY AUTOMOTIVE SPST 130A 12V |
3,887 |
|
数据手册 |
PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-24C-R-XRELAY AUTOMOTIVE SPST 130A 24V |
4,085 |
|
数据手册 |
PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-12C-R-XRELAY AUTOMOTIVE SPST 130A 12V |
3,764 |
|
数据手册 |
PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-24C-D-XRELAY AUTOMOTIVE SPST 130A 24V |
1,567 |
|
数据手册 |
PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
7-1414968-8RELAY AUTOMOTIVE SPST 130A 12V |
3,542 |
|
数据手册 |
- | Bulk | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | Resistor | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
AEBN11112RELAY AUTOMOTIVE SPST 100A 12V |
4,010 |
|
数据手册 |
AEB | Bulk | Active | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 100 A | 60VDC - Max | 9 VDC | 0.5 VDC | 50 ms | 30 ms | - | Chassis Mount | Wire Leads | -40°C ~ 85°C |
|
|
5-1415002-5V23132E2001B200 |
4,424 |
|
数据手册 |
- | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | - | - | 17.2 VDC | 1.2 VDC | 25 ms | 8 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
AEV31012RELAY AUTOMOTIVE SPST 10A 12V |
1,089 |
|
数据手册 |
AEV | Bulk | Last Time Buy | Non Latching | 103 mA | 12VDC | SPST-NO (1 Form A) | 10 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Through Hole | PC Pin | -40°C ~ 80°C |
|
|
AEV31024RELAY AUTOMOTIVE SPST 10A 24V |
3,173 |
|
数据手册 |
AEV | Bulk | Last Time Buy | Non Latching | 52 mA | 24VDC | SPST-NO (1 Form A) | 10 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Through Hole | PC Pin | -40°C ~ 80°C |
|

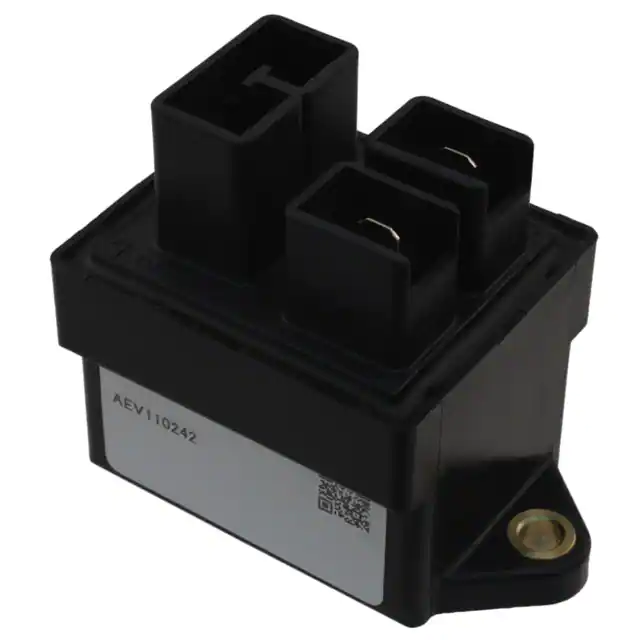

AEV110242RELAY AUTOMOTIVE SPST 10A 24V |
3,599 |
|
数据手册 |
AEV | Bulk | Last Time Buy | Non Latching | 52 mA | 24VDC | SPST-NO (1 Form A) | 10 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 80°C |
|
|
ACNL111RELAY AUTOMOTIVE SPST 150A 12V |
3,475 |
|
数据手册 |
CN-L | Bulk | Active | Latching, Single Coil | 2.5 A | 12VDC | SPST-NO (1 Form A) | 150 A | 14VDC - Nom | 7 VDC | - | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Plug In | -40°C ~ 125°C |
|
|
AEVH900122RELAY AUTOMOTIVE SPST 100A 12V |
1,582 |
|
数据手册 |
AEV | Bulk | Active | Non Latching | 453 mA | 12VDC | SPST-NO (1 Form A) | 100 A | 450VDC - Nom | 9 VDC | 0.5 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|

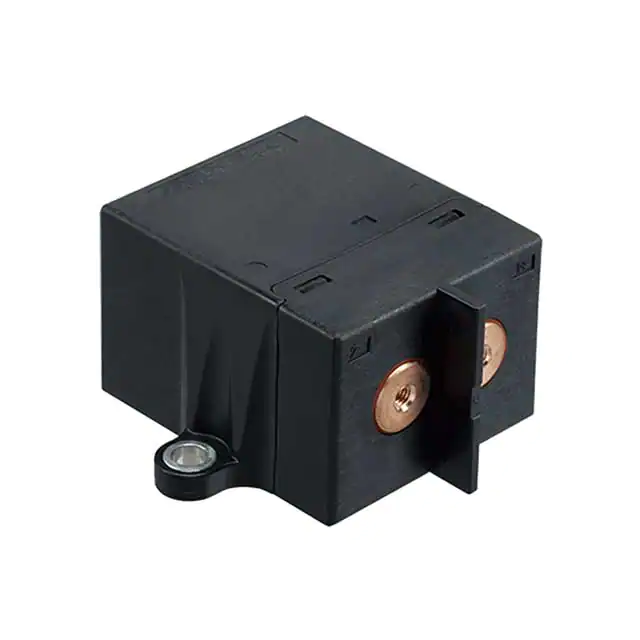

AEVS960122RELAY AUTO SPST-NO 60A 12V |
4,484 |
|
数据手册 |
AEVS | Bulk | Active | Non Latching | 375 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 50 ms | - | Chassis Mount | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C |
|

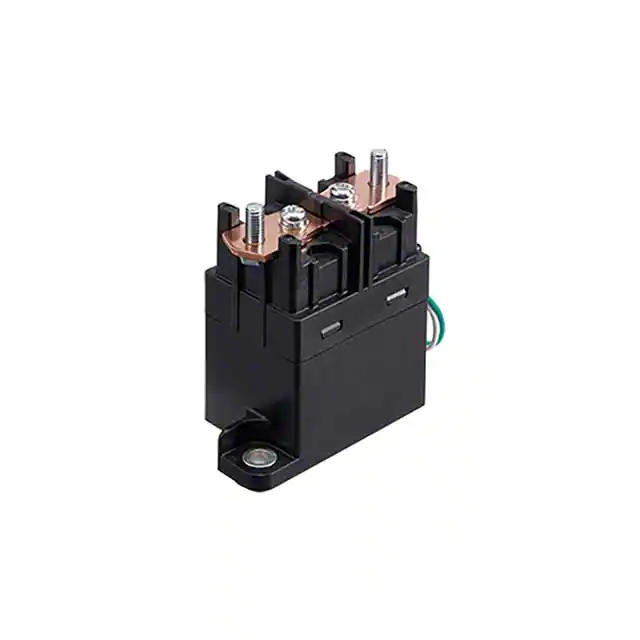

AEVS16012RELAY AUTO SPST-NO 60A 12V |
4,675 |
|
数据手册 |
AEVS | Bulk | Active | Non Latching | 375 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 50 ms | - | Chassis Mount | Screw Terminal, Wire Leads | -40°C ~ 80°C |
|

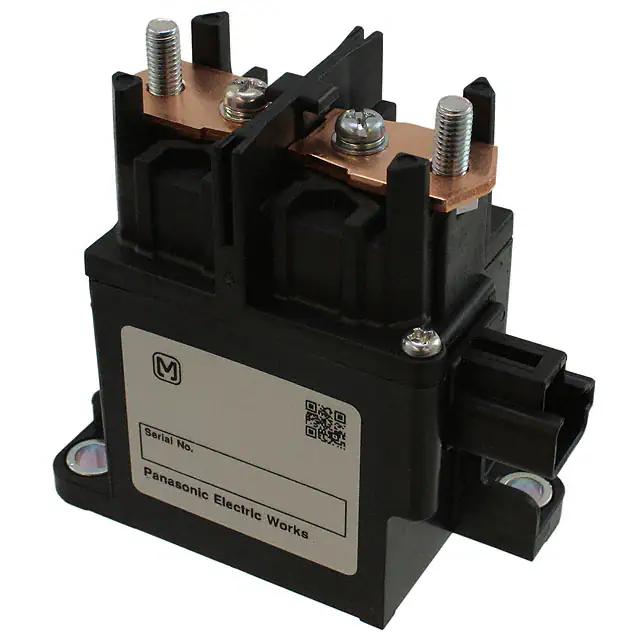

AEV18024RELAY AUTOMOTIVE SPST 80A 24V |
4,921 |
|
数据手册 |
AEV | Bulk | Active | Non Latching | 176 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Stud | -40°C ~ 80°C |
|
AEV17024RELAY AUTOMOTIVE SPST 200V 24V |
1,583 |
|
数据手册 |
AEV | Bulk | Last Time Buy | Non Latching | 250 mA | 24VDC | SPST-NO (1 Form A) | 200 A | 450VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Wire Leads | -40°C ~ 80°C |
|

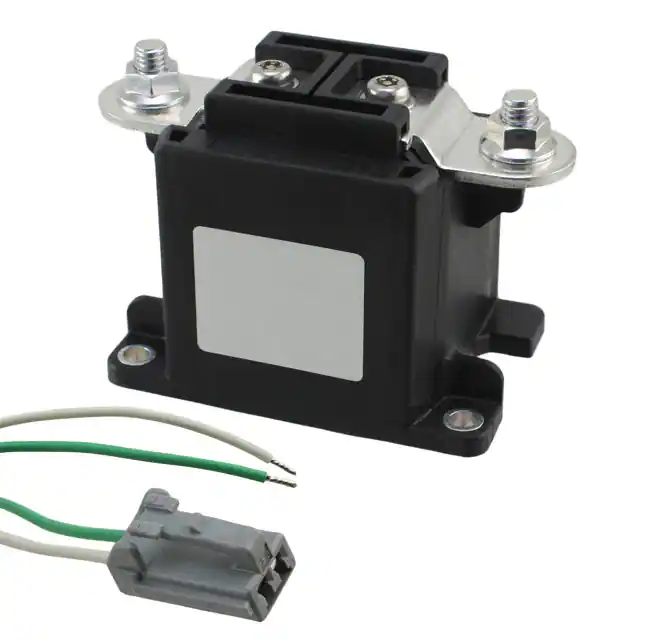

AEV19012WRELAY AUTOMOTIVE SPST 300A 12V |
4,153 |
|
数据手册 |
AEV | Tray | Active | Non Latching | 3.2 A | 12VDC | SPST-NO (1 Form A) | 300 A | 450VDC - Nom | 9 VDC | 2 VDC | 30 ms | 10 ms | - | Chassis Mount | Stud | -40°C ~ 85°C |
|

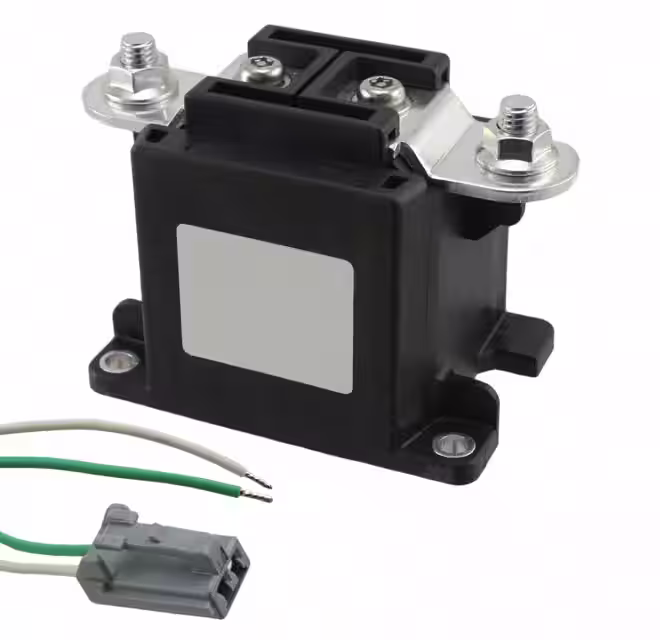

AEV19024WRELAY AUTOMOTIVE SPST 300A 24V |
3,014 |
|
数据手册 |
AEV | Tray | Active | Non Latching | 1.9 A | 24VDC | SPST-NO (1 Form A) | 300 A | 450VDC - Nom | 18 VDC | 4 VDC | 30 ms | 10 ms | - | Chassis Mount | Stud | -40°C ~ 85°C |
|
G8JN-1C7T-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
1,612 |
|
数据手册 |
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
G8JN-1C7T-MF-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
2,020 |
|
数据手册 |
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
