汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB1AH-T-24VCB RELAY HR 1 FORM A 24V |
3,132 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1AHF-D-12VCB RELAY 1 FORM A 12V |
4,436 |
|
数据手册 |
CB | Tube | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
CB1AH-T-R-24VCB RELAY HR 1 FORM A 24V |
3,784 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1AH-TR-M-24VCB RELAY, HIGH HEAT RESISTANCE, |
4,611 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1-T-R-B-12VCB RELAY WITH ISO TERMINAL |
2,703 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
CB1AH-T-M-24VCB RELAY HR 1 FORM A 24V |
2,683 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AHF-R-M-12VCB RELAY 1 FORM A 12V |
4,308 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 85°C |
|
|
CB1AH-R-M-24VCB RELAY 1 FORM A 24V |
4,493 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 85°C |
|
|
CB1AH-D-24VRELAY AUTOMOTIVE 70A |
4,539 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
CB1-T-D-WM-12VRELAY AUTOMOTIVE SPDT 40A 12V |
4,219 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A3K1CCQ12VDC1.6RELAY AUTOMOTIVE SPDT 150A 12V |
2,477 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1AH-D-M-24VCB RELAY 1 FORM A 24V |
2,730 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 85°C |
|
|
CB1AHF-D-M-24VCB RELAY 1 FORM A 24V |
1,219 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 85°C |
|
|
A3K1CCQ12VDC1.6RRELAY AUTOMOTIVE SPDT 150A 12V |
4,904 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1CCQ24VDC1.6RELAY AUTOMOTIVE SPDT 150A 24V |
3,866 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1CCQ12VDC1.6DRELAY AUTOMOTIVE SPDT 150A 12V |
3,618 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Magnetic Blowout | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
VF7-41F11RELAY AUTOMOTIVE SPST 70A 12V |
1,491 |
|
数据手册 |
VF7 | Bulk | Obsolete | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

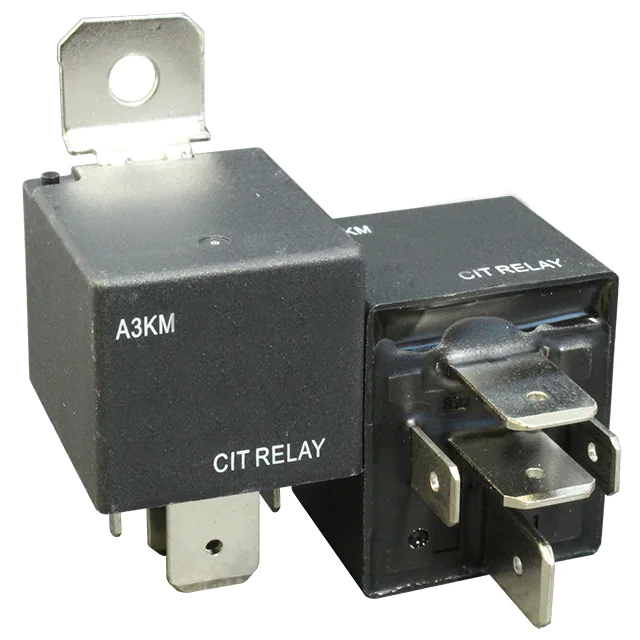

A3KM1CCQ12VDC1.6RELAY AUTOMOTIVE SPDT 150A 12V |
3,603 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1CCQ24VDC1.6RRELAY AUTOMOTIVE SPDT 150A 24V |
4,540 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1CCQ24VDC1.6DRELAY AUTOMOTIVE SPDT 150A 24V |
2,895 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Magnetic Blowout | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
