汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

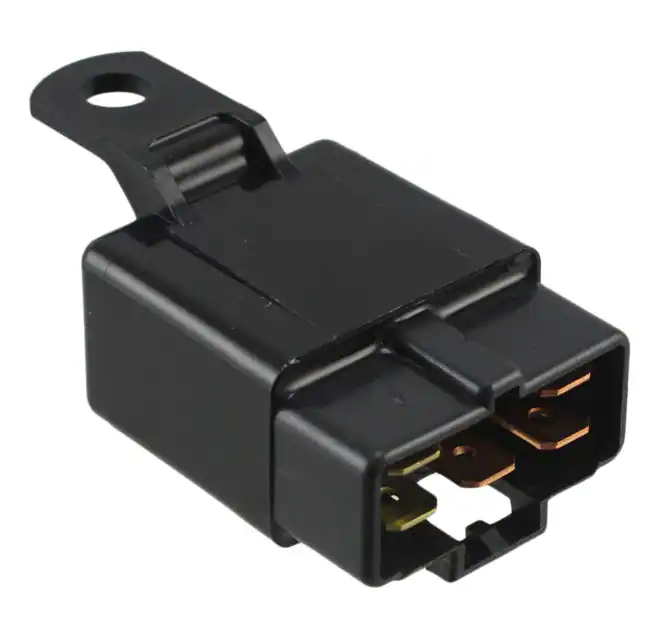

CA1A-DC12V-ARELAY AUTOMOTIVE SPST 30A 12V |
3,361 |
|
数据手册 |
CA | Tray | Obsolete | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
|
CA1A-DC24V-NRELAY AUTOMOTIVE SPST 10A 24V |
4,066 |
|
数据手册 |
CA | Tray | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 10 A | 30VDC - Max | 16 VDC | 1.2 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
|
CA1B-DC12V-NRELAY AUTOMOTIVE SPST 20A 12V |
1,250 |
|
数据手册 |
CA | Tray | Obsolete | Non Latching | 150 mA | 12VDC | SPST-NC (1 Form B) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
CB1-D-12VRELAY AUTOMOTIVE SPDT 40A 12V |
1,051 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1-D-24VRELAY AUTOMOTIVE SPDT 20A 24V |
4,507 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CB1-D-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
2,381 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1-D-M-24VRELAY AUTOMOTIVE SPDT 20A 24V |
1,387 |
|
数据手册 |
CB | Tube | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CB1-D-P-12VRELAY AUTOMOTIVE SPDT 40A 12V |
2,792 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CB1A-D-12VRELAY AUTOMOTIVE SPST 40A 12V |
4,799 |
|
数据手册 |
CB | Tube | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1A-D-24VRELAY AUTOMOTIVE SPST 20A 24V |
2,619 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1A-D-M-12VRELAY AUTOMOTIVE SPST 40A 12V |
1,698 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1A-D-M-24VRELAY AUTOMOTIVE SPST 20A 24V |
3,634 |
|
数据手册 |
CB | Tube | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AF-D-24VRELAY AUTOMOTIVE SPST 20A 24V |
4,076 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AF-D-M-12VRELAY AUTOMOTIVE SPST 40A 12V |
4,478 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AF-D-P-12VRELAY AUTOMOTIVE SPST 40A 12V |
1,163 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CB1F-D-24VRELAY AUTOMOTIVE SPDT 20A 24V |
3,381 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

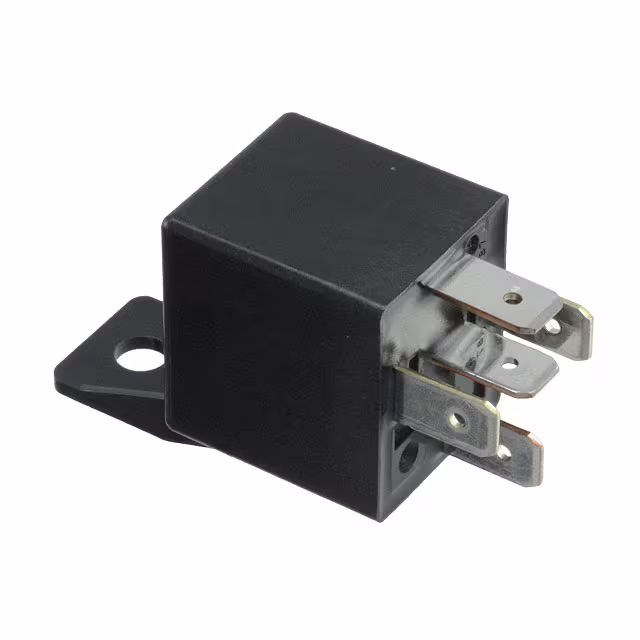

CB1F-D-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
4,417 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1F-D-M-24VRELAY AUTOMOTIVE SPDT 20A 24V |
2,943 |
|
数据手册 |
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

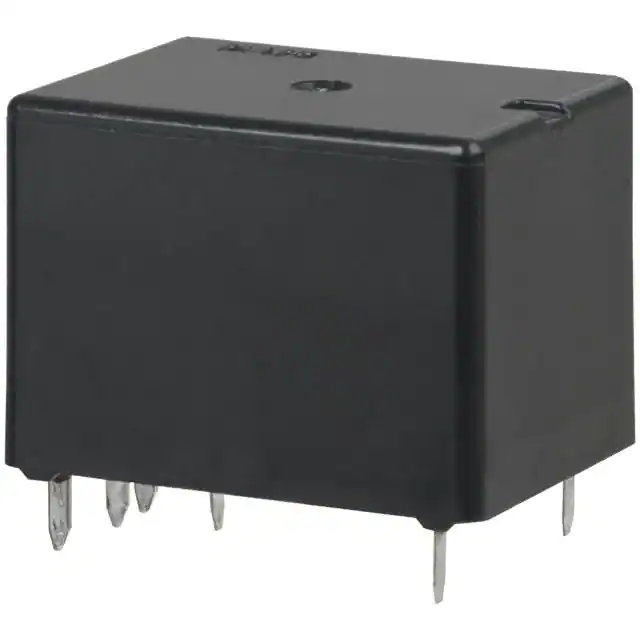

CF2-12VRELAY AUTOMOTIVE SPDT 10A 12V |
4,466 |
|
数据手册 |
CF | Tube | Obsolete | Non Latching | 53 mA | 12VDC | SPDT (1 Form C) x 2 | 10 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
CM1-D-12VRELAY AUTOMOTIVE SPDT 35A 12V |
4,498 |
|
数据手册 |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 15 ms | Diode, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
