汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1414686-0RELAY AUTOMOTIVE SPDT 40A 12V TE Connectivity Potter & Brumfield Relays |
1,958 |
|
数据手册 |
SRF-A | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
7-1393303-3RELAY AUTOMOTIVE SPST 12V TE Connectivity Potter & Brumfield Relays |
3,038 |
|
数据手册 |
F7 | Box | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | - | - | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|

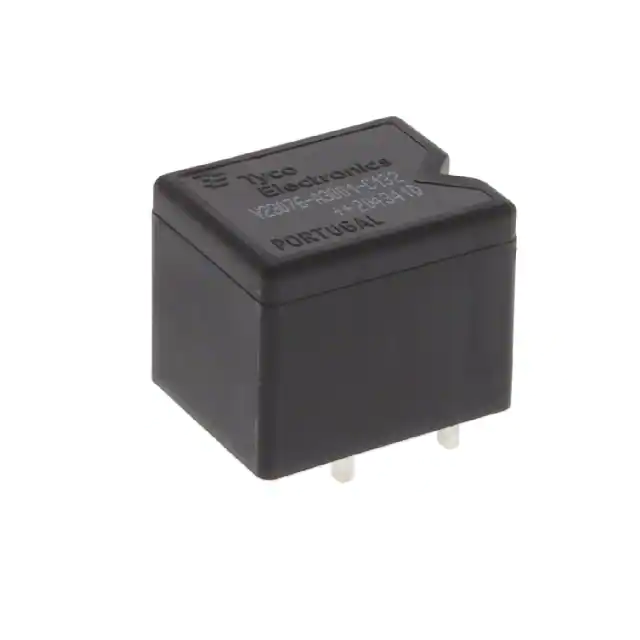

1-1414310-0RELAY AUTOMOTIVE SPST 40A 12V TE Connectivity Potter & Brumfield Relays |
2,831 |
|
数据手册 |
- | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 45 A | - | 6.9 VDC | 1.2 VDC | - | - | - | - | - | -40°C ~ 85°C |
|

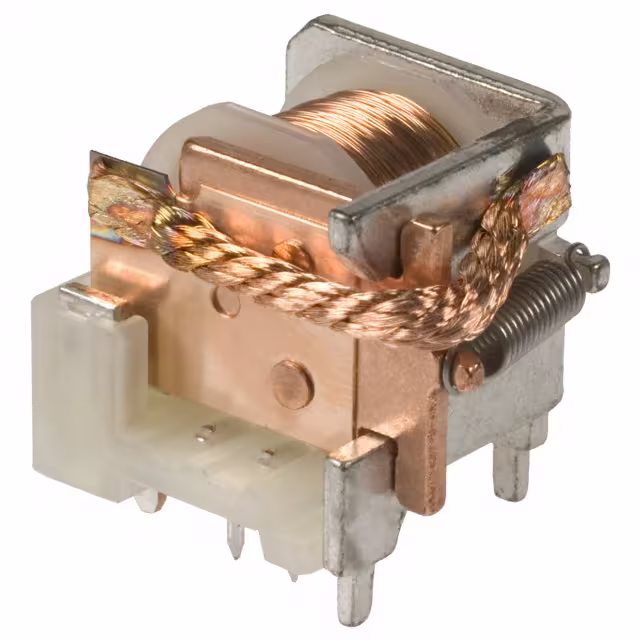

VKP-11F42RELAY AUTOMOTIVE SPST 40A 12V TE Connectivity Potter & Brumfield Relays |
1,716 |
|
数据手册 |
VKP | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Max | 6.8 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
VKP-15F42RELAY AUTOMOTIVE SPDT 40A 12V TE Connectivity Potter & Brumfield Relays |
1,669 |
|
数据手册 |
VKP | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Max | 6.8 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
VKP-35F42RELAY AUTOMOTIVE SPDT 40A 12V TE Connectivity Potter & Brumfield Relays |
3,806 |
|
数据手册 |
VKP | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Max | 6.8 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
VKP-35F52RELAY AUTOMOTIVE SPDT 40A 12V TE Connectivity Potter & Brumfield Relays |
3,577 |
|
数据手册 |
VKP | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Max | 6.8 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
1432886-1VFMA-15F71-S01, RELAY TE Connectivity Potter & Brumfield Relays |
2,757 |
|
数据手册 |
VFMA | Box | Obsolete | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | - | 7.2 VDC | 1.2 VDC | - | - | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
VF7-11H12RELAY AUTOMOTIVE SPST 70A 24V TE Connectivity Potter & Brumfield Relays |
3,694 |
|
数据手册 |
VF7 | Bulk | Obsolete | Non Latching | 83.3 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 14.4 VDC | 2.4 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
6-1393292-2V23074A2002A402 TE Connectivity Potter & Brumfield Relays |
3,871 |
|
数据手册 |
V23074, AXICOM | Bulk | Obsolete | Non Latching | 55.8 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | 14.4 VDC | 3.6 VDC | 6 ms | 3 ms | Diode | Socketable | Plug In | -40°C ~ 125°C |
