汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

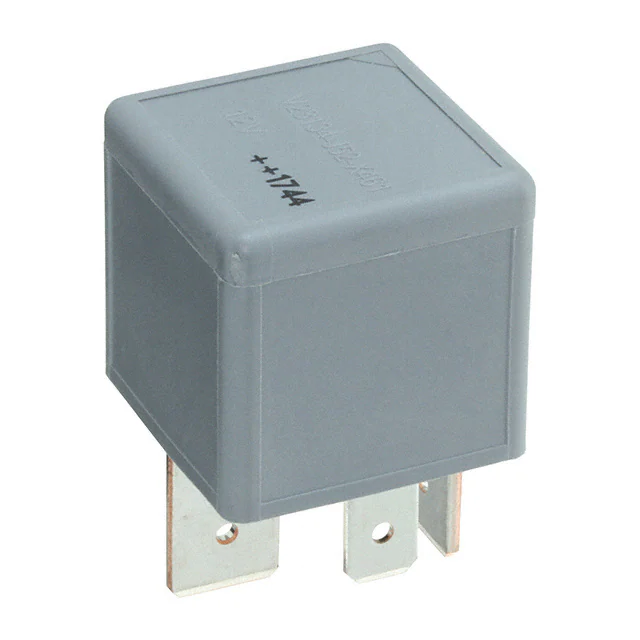

1-1414469-0RELAY GEN PURPOSE SPST 70A 12V TE Connectivity Potter & Brumfield Relays |
184 |
|
数据手册 |
- | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|

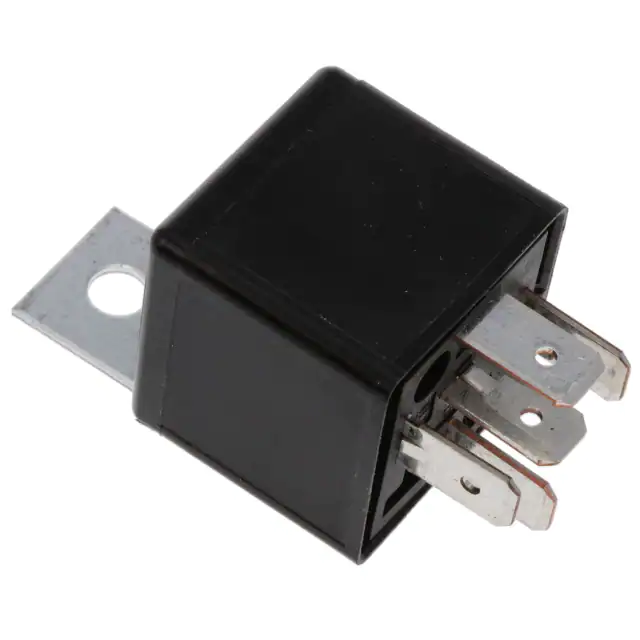

V23134A1052C643RELAY AUTOMOTIVE SPDT 40A 12V TE Connectivity Potter & Brumfield Relays |
121 |
|
数据手册 |
F4 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Max | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

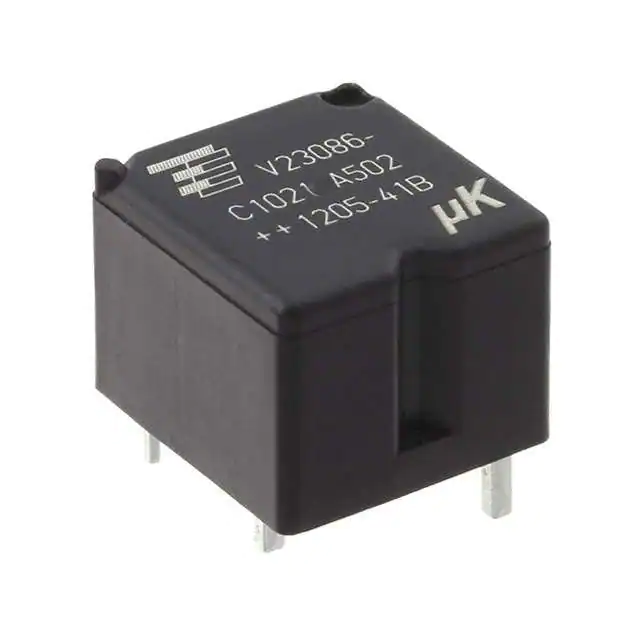

1-1414760-0AUTOMOTIVE RELAYS TE Connectivity Potter & Brumfield Relays |
1,960 |
|
数据手册 |
Micro Relay K | Box | Active | Non Latching | 55.2 mA | 10VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
1-1393277-9RELAY AUTOMOTIVE SPST 40A 24V TE Connectivity Potter & Brumfield Relays |
438 |
|
数据手册 |
V23076 | Bulk | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 14.1 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
2359392-1RELAY V23074A1002A402-EV-CBOX TE Connectivity Potter & Brumfield Relays |
342 |
|
数据手册 |
Micro Relay A | Box | Active | Non Latching | 55.8 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 32VDC - Max | 14.4 VDC | 3.6 VDC | 6 ms | 3 ms | Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
4-1393306-6RELAY AUTOMOTIVE SPST 70A 12V TE Connectivity Potter & Brumfield Relays |
209 |
|
数据手册 |
VF7 | Bulk | Active | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
4-1393303-8RELAY GEN PURPOSE SPST 40A 12V TE Connectivity Potter & Brumfield Relays |
1,370 |
|
数据手册 |
F4 | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
V23134-A4052-X543RELAY AUTOMOTIVE SPDT TE Connectivity Potter & Brumfield Relays |
388 |
|
数据手册 |
VF4 | Bulk | Active | Non Latching | 151 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
3-1904131-5RELAY GEN PURPOSE SPDT 40A 12V TE Connectivity Potter & Brumfield Relays |
141 |
|
数据手册 |
VF4 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
VF7-11H11RELAY AUTOMOTIVE SPST 70A 24V TE Connectivity Potter & Brumfield Relays |
1,183 |
|
数据手册 |
VF7 | Bulk | Active | Non Latching | 83.3 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 14.4 VDC | 2.4 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
