汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1432872-1RELAY AUTOMOTIVE SPDT 40A 6V TE Connectivity Potter & Brumfield Relays |
153 |
|
数据手册 |
- | Bulk | Obsolete | Non Latching | - | 6VDC | SPDT (1 Form C) | 40 A | 12VDC | - | - | - | - | - | Through Hole | PC Pin | - |
|
VFMA-15F41RELAY AUTOMOTIVE SPDT 12V TE Connectivity Potter & Brumfield Relays |
1,816 |
|
数据手册 |
VFM | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | - | - | 7.2 VDC | 1.2 VDC | - | - | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
VFMA-11F41VFMA-11F41=VFMA TE Connectivity Potter & Brumfield Relays |
3,381 |
|
数据手册 |
VFMA | Bulk | Obsolete | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | - | 7.2 VDC | 1.2 VDC | - | - | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
5-1904006-1V23234B0001X001-EV-144 TE Connectivity Potter & Brumfield Relays |
2,456 |
|
数据手册 |
- | Box | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
2-1904025-3V23234A0004X051-EV-100 TE Connectivity Potter & Brumfield Relays |
438 |
|
数据手册 |
Power Relay B | Bulk | Obsolete | Non Latching | 94 mA | 24VDC | SPDT (1 Form C) | 50 A | 24VDC - Nom | 16 VDC | 3 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
VF7-11F11RELAY AUTOMOTIVE SPST 70A 12V TE Connectivity Potter & Brumfield Relays |
1,138 |
|
数据手册 |
VF7 | Bulk | Obsolete | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
VF7-11F12RELAY AUTOMOTIVE SPST 70A 12V TE Connectivity Potter & Brumfield Relays |
483 |
|
数据手册 |
VF7 | Bulk | Active | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
1-1414687-0RELAY AUTOMOTIVE SPDT 40A 12V TE Connectivity Potter & Brumfield Relays |
2,902 |
|
数据手册 |
SRF-A | Bulk | Active | Non Latching | 151 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

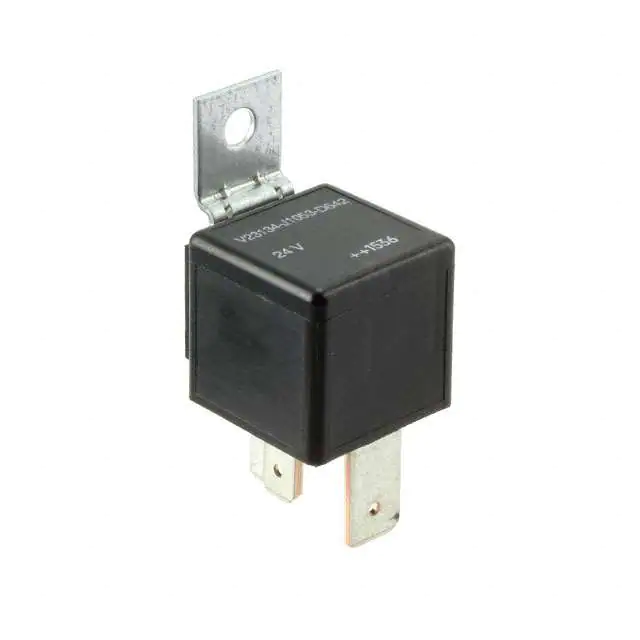

1-1393304-1RELAY AUTOMOTIVE SPST-NO 70A 24V TE Connectivity Potter & Brumfield Relays |
2,164 |
|
数据手册 |
F7 | Bulk | Active | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
V23134A4064X551-EV-CBOXRELAY GEN PURPOSE SPDT 60A 24V TE Connectivity Potter & Brumfield Relays |
1,468 |
|
数据手册 |
F4 | Bulk | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 28VDC - Nom | 14.4 VDC | 2.4 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
