汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC7150-1C-C2-12C-N-XRELAY AUTOMOTIVE SPDT 150A 12V Picker Components |
296 |
|
数据手册 |
- | Bag | Active | Non Latching | 240 mA | 12VDC | SPDT (1 Form C) | 150 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
PC792A-1AA-C-12S-N-XRELAY AUTOMOTIVE SPST 40A 12V Picker Components |
167 |
|
数据手册 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

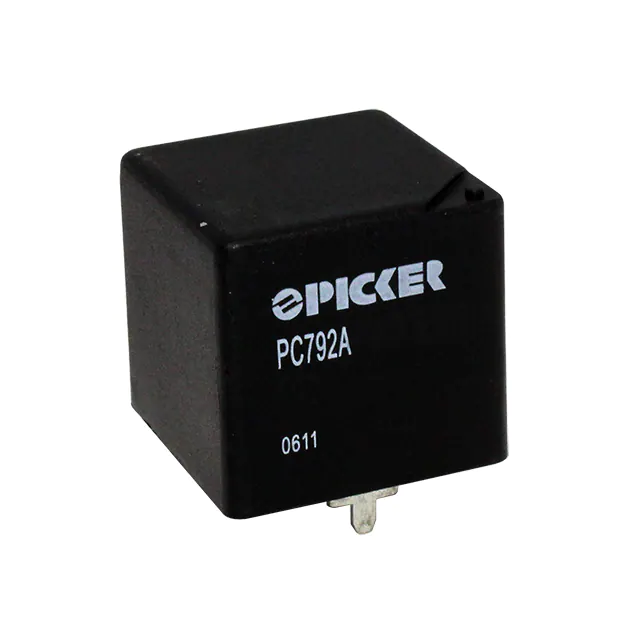

PC792A-1C-P-12S-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
193 |
|
数据手册 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
PC792A-1C-C-24C-N-XRELAY AUTOMOTIVE SPDT 40A 24V Picker Components |
356 |
|
数据手册 |
- | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | - | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

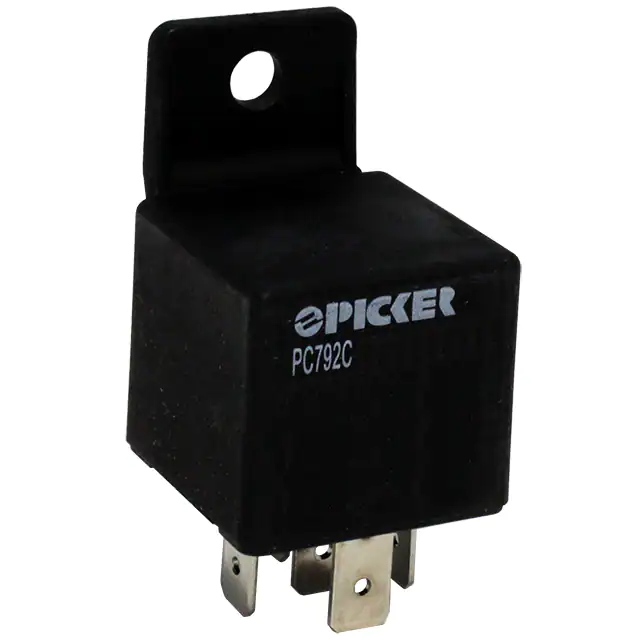

PC792C-1C-C1-12C-RN-XRELAY AUTOMOTIVE SPDT 50A 12V Picker Components |
907 |
|
数据手册 |
- | Box | Active | Non Latching | 168 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

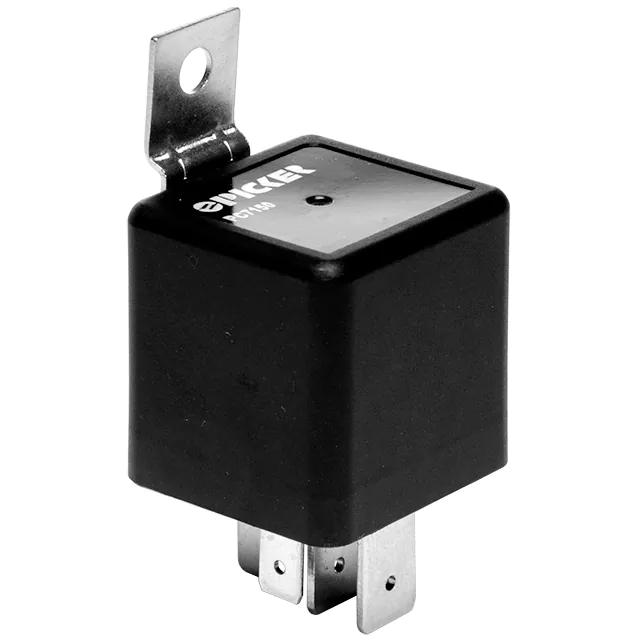

PC7150-1A-C2-24C-RN-XRELAY AUTOMOTIVE SPST 75A 24V Picker Components |
169 |
|
数据手册 |
- | Bag | Active | Non Latching | 132 mA | 24VDC | SPST-NO (1 Form A) | 75 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
PC776-1X-12C-XRELAY AUTOMOTIVE SPST 130A 12V Picker Components |
139 |
|
数据手册 |
- | Bag | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (1 Form A) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

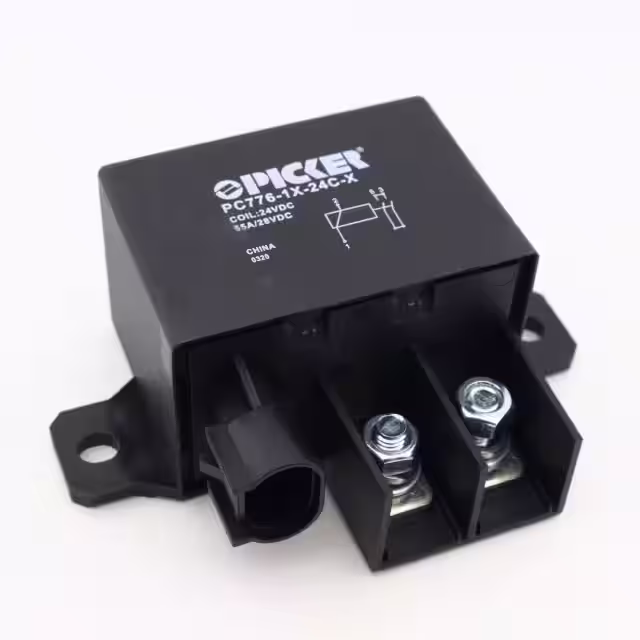

PC776-1X-24C-XRELAY AUTOMOTIVE SPST 130A 24V Picker Components |
4,676 |
|
数据手册 |
- | Bag | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (1 Form A) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

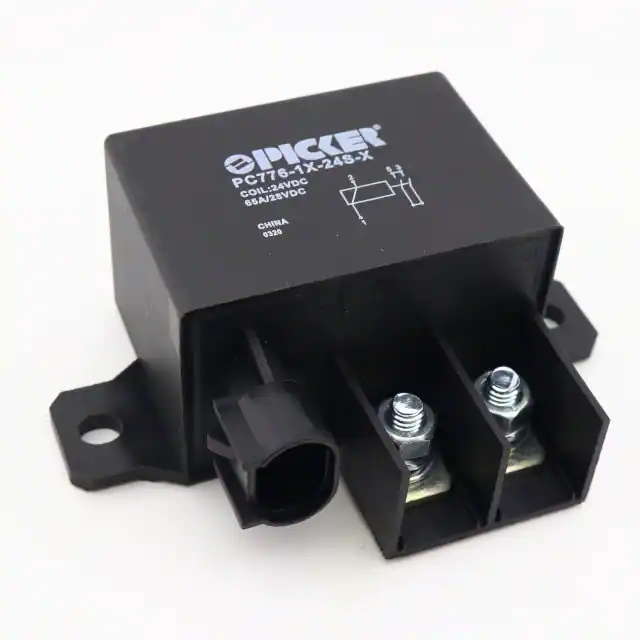

PC776-1X-24S-XRELAY AUTOMOTIVE SPST 130A 24V Picker Components |
2,344 |
|
数据手册 |
- | Bag | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (1 Form A) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
PC775-1A-24C-D-XRELAY AUTOMOTIVE SPST 37A 24V Picker Components |
3,989 |
|
数据手册 |
PC775 | Bag | Active | Non Latching | 120 mA | 24VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 15.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
