汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

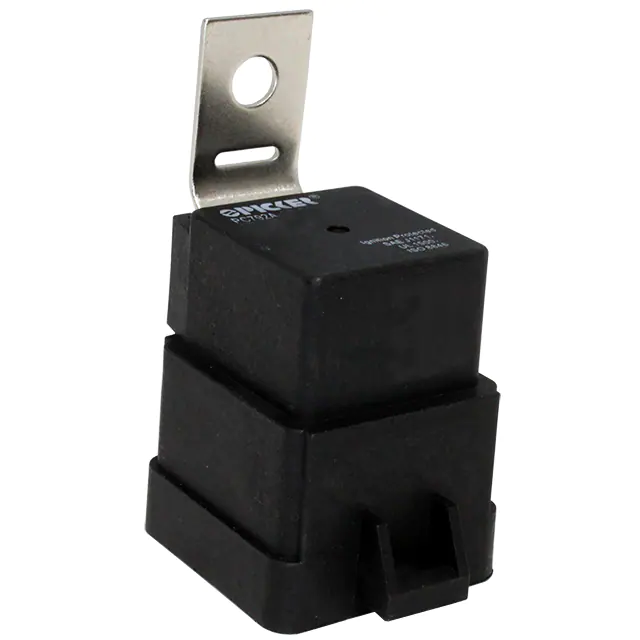

PC792A-1C-C3-12S-RN-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
2,820 |
|
数据手册 |
- | Bag | Active | Non Latching | 150.9 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C3-12S-DN-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
1,204 |
|
数据手册 |
- | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC795-1C-C2-12S-N-XRELAY AUTOMOTIVE SPDT 80A 12V Picker Components |
2,383 |
|
数据手册 |
- | Bag | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
PC7150-1A-C2-12C-RN-XRELAY AUTOMOTIVE SPST 150A 12V Picker Components |
1,218 |
|
数据手册 |
- | Bag | Active | Non Latching | 258 mA | 12VDC | SPST-NO (1 Form A) | 150 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
PC775-1A-12C-XRELAY AUTOMOTIVE SPST 75A 12V Picker Components |
1,013 |
|
数据手册 |
PC775 | Bulk | Active | Non Latching | 240 mA | 12VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 7.8 VDC | 2.4 VDC | 7 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
PC775-1A-12C-D2-XRELAY AUTOMOTIVE SPST 75A 12V Picker Components |
134 |
|
数据手册 |
PC775 | Bag | Active | Non Latching | 240 mA | 12VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 7.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
PC775-1A-12C-D-XRELAY AUTOMOTIVE SPST 75A 12V Picker Components |
166 |
|
数据手册 |
PC775 | Bulk | Active | Non Latching | 240 mA | 12VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 7.8 VDC | 2.4 VDC | 7 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

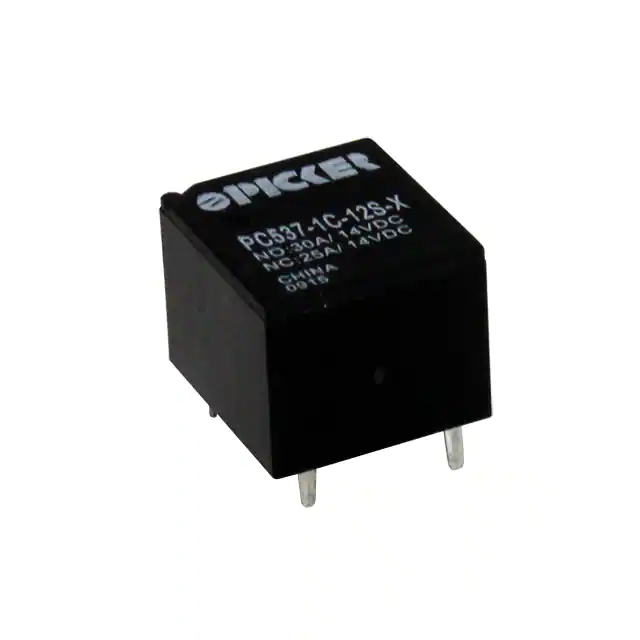

PC537-1C-12S-XRELAY AUTOMOTIVE SPDT 30A 12V Picker Components |
1,393 |
|
数据手册 |
- | Tube | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | - | 28VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
PC792A-1C-C-12C-N-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
670 |
|
数据手册 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C1-12S-N-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
1,633 |
|
数据手册 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
