汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

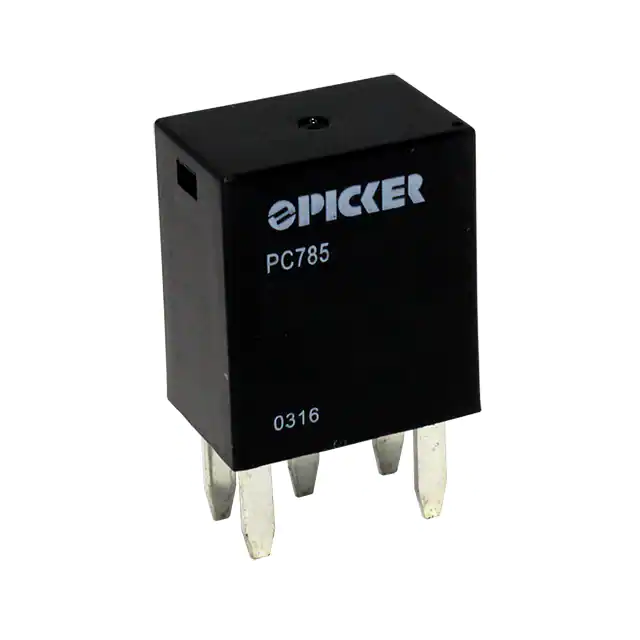

PC785-1A-12S-R-XRELAY AUTOMOTIVE SPST 35A 12V Picker Components |
666 |
|
数据手册 |
- | Tube | Active | Non Latching | 127.7 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Socketable | Plug In | -40°C ~ 125°C |
|

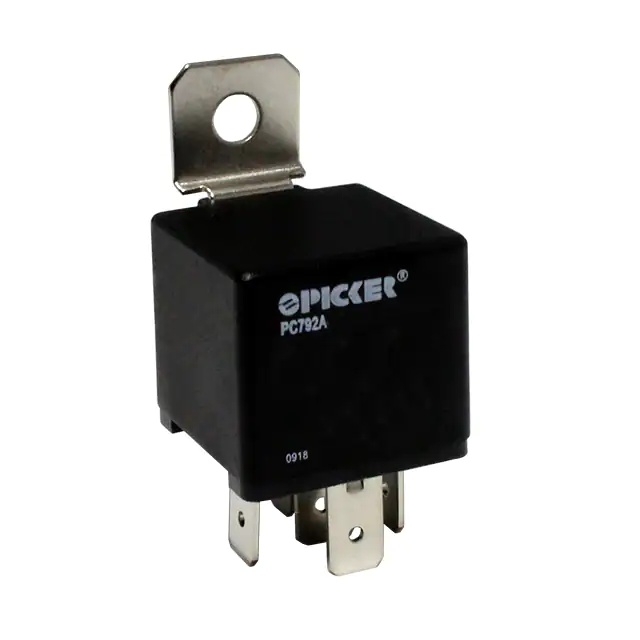

PC792A-1C-C2-12C-N-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
283 |
|
数据手册 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C-12S-DN-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
2,070 |
|
数据手册 |
- | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
PC792A-1C-C2-24C-N-XRELAY AUTOMOTIVE SPDT 20A 24V Picker Components |
870 |
|
数据手册 |
- | Bag | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 20 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C1-24S-RN-XRELAY AUTOMOTIVE SPDT 20A 24V Picker Components |
846 |
|
数据手册 |
- | Bag | Active | Non Latching | 75.6 mA | 24VDC | SPDT (1 Form C) | 20 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792C-1A-C-12C-N-XRELAY AUTOMOTIVE SPST 50A 12V Picker Components |
2,932 |
|
数据手册 |
- | Bag | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792C-1C-C1-24C-N-XRELAY AUTOMOTIVE SPDT 50A 24V Picker Components |
353 |
|
数据手册 |
- | Box | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | - | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C3-12S-N-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
625 |
|
数据手册 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC795-1A-C1-12S-RN-XRELAY AUTOMOTIVE SPST 80A 12V Picker Components |
231 |
|
数据手册 |
- | Bag | Active | Non Latching | 168 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
PC795-1C-P-12S-XRLEAY AUTOMOTIVE SPDT 80A 12V Picker Components |
118 |
|
数据手册 |
- | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
