铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPA271M0EBCAP ALUM POLY 270UF 20% 2.5V SMD |
3,347 |
|
数据手册 |
SPA | Bulk | Obsolete | Polymer | 270 µF | ±20% | 2.5 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
RHS0G152MCN1GSCAP ALUM POLY 1500UF 20% 4V SMD |
1,905 |
|
数据手册 |
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 4 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 470 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

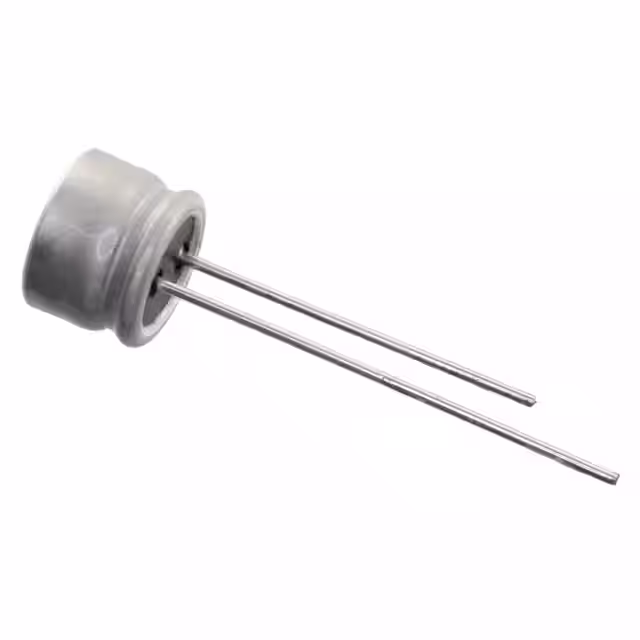

PLF1D390MCL2TDCAP ALUM POLY 39UF 20% 20V TH |
2,484 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 39 µF | ±20% | 20 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
UPE1E471MP30812RSUCAP ALUM POLY 470UF 20% 25V TH |
1,707 |
|
数据手册 |
UPE | Active | Polymer | 470 µF | ±20% | 25 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | ||
|
MAL218697306E3CAP ALUM POLY 1500UF 20% 6.3V |
4,081 |
|
数据手册 |
186 CPNT | Box | Active | Polymer | 1500 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 255 mA @ 120 Hz | 5.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | |
|

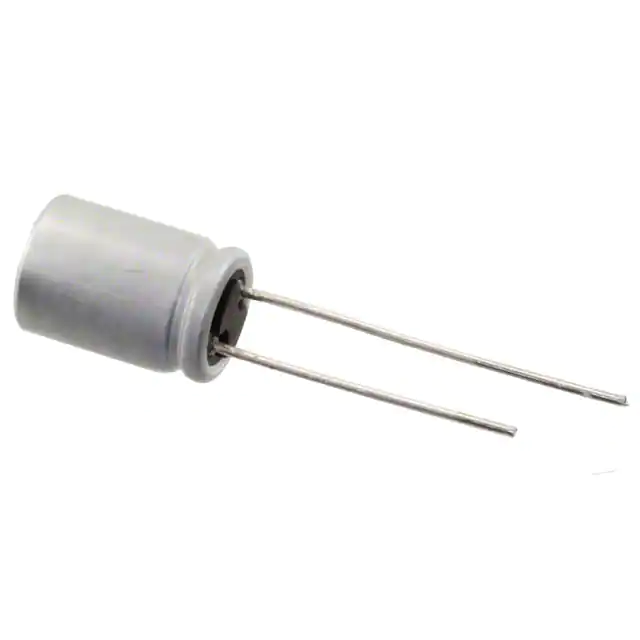

PLS0J471MDO1TDCAP ALUM POLY 470UF 20% 6.3V TH |
2,285 |
|
数据手册 |
PLS | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
477AVG050MGJBPOLYMER/IC |
2,181 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
A700D227M004ATE010CAP ALUM POLY 220UF 20% 4V SMD |
3,051 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700D187M002ATE015CAP ALUM POLY 180UF 20% 2V SMD |
3,712 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
A700D187M002ATE018CAP ALUM POLY 180UF 20% 2V SMD |
4,408 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700D107M006AT6008CAP ALUM POLY 100UF 20% 6.3V SMD |
1,905 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 8mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700D187M002AT6070CAP ALUM POLY 180UF 20% 2V SMD |
3,303 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2 V | 70mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700D107M006ATE0187111CAP ALUM POLY 100UF 20% 6.3V SMD |
1,801 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 18mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700D157M004AT6008CAP ALUM POLY 150UF 20% 4V SMD |
2,094 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 8mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700D107M006AT6070CAP ALUM POLY 100UF 20% 6.3V SMD |
4,068 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 70mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700D107M006ATE010CAP ALUM POLY 100UF 20% 6.3V SMD |
1,059 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 10mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700D157M004ATE0186008CAP ALUM POLY 150UF 20% 4V SMD |
4,092 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 18mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
MAL218497258E3CAP ALUM POLY 3300UF 20% 2.5V |
4,285 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 3300 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | |
|
EEF-SL0G820RCAP ALUM POLY 82UF 20% 4V SMD |
4,148 |
|
数据手册 |
SP-Cap SL | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 4 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
RPS0G122MCN1GSCAP ALUM POLY 1200UF 20% 4V SMD |
2,884 |
|
数据手册 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 4 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.488" (12.40mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
