铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UUL1C151MP26306CAP ALUM POLY 150UF 20% 16V TH |
3,582 |
|
数据手册 |
UUL | Active | Polymer | 150 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.22 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.276" (7.00mm) | - | Through Hole | ||
|
6SW220MXCAP ALUM POLY 220UF 20% 6.3V SMD |
4,740 |
|
数据手册 |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount | |
|
A700X107M010ATE0107280CAP ALUM POLY 100UF 20% 10V SMD |
3,956 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 10 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700D226M016ATE025CAP ALUM POLY 22UF 20% 16V SMD |
4,561 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
PCR1H181MCSANAGSCAP ALUM POLY 560UF 20% 20V SMD |
1,936 |
|
数据手册 |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

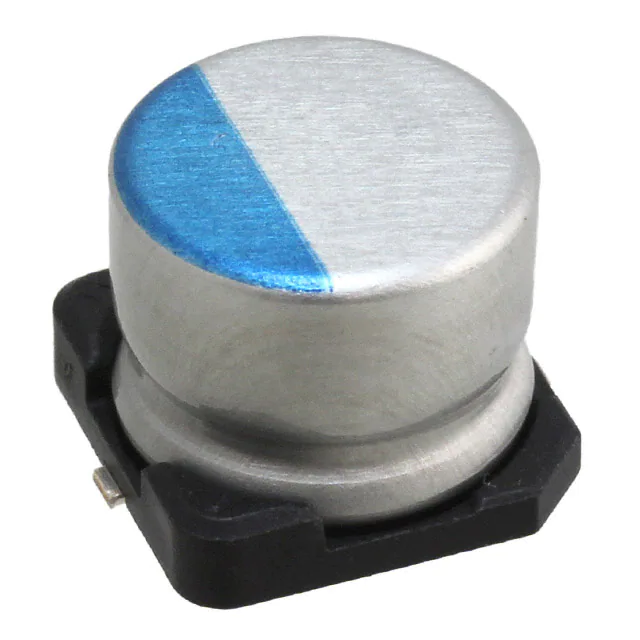

PCS0G561MCL1GSCAP ALUM POLY 560UF 20% 4V SMD |
2,997 |
|
数据手册 |
PCS | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 18mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

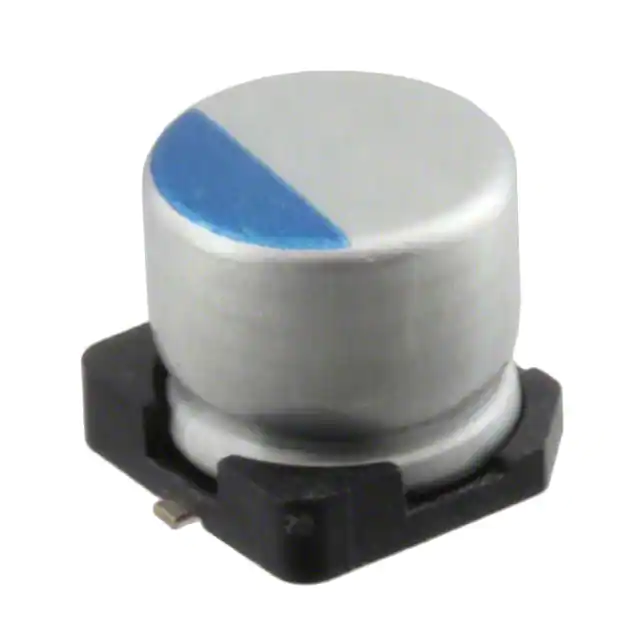

PCJ0G271MCL1GSCAP ALUM POLY 270UF 20% 4V SMD |
4,180 |
|
数据手册 |
PCJ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
PCJ0G391MCL1GSCAP ALUM POLY 390UF 20% 4V SMD |
2,910 |
|
数据手册 |
PCJ | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 4 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.47 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
PCJ0J271MCL1GSCAP ALUM POLY 270UF 20% 6.3V SMD |
1,011 |
|
数据手册 |
PCJ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.47 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
MAL218497366E3CAP ALUM POLY 2200UF 20% 4V SMD |
3,324 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 2200 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | |
|
|
A700X107M008ATE0107280CAP ALUM POLY 100UF 20% 8V SMD |
4,588 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 8 V | 10mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
APXA4R0ARA122MJC0GCAP ALUM POLY 1200UF 20% 4V SMD |
3,967 |
|
数据手册 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 4 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
MAL218497004E3CAP ALUM POLY 150UF 20% 35V SMD |
1,072 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 150 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
MAL218597105E3CAP ALUM POLY 33UF 20% 50V SMD |
4,459 |
|
数据手册 |
185 CPNZ | Box | Active | Polymer | 33 µF | ±20% | 50 V | 42mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | - | Surface Mount | |
|
|
A720V107M016APE015CAP ALUM POLY 100UF 20% 16V SMD |
2,080 |
|
数据手册 |
AO-Cap A720 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | |
|

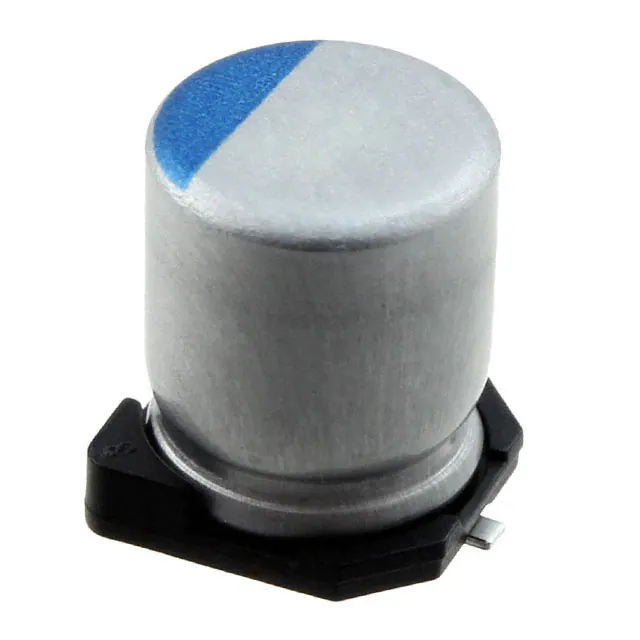

PCR1V680MCL4GSCAP ALUM POLY 68UF 20% 35V SMD |
4,024 |
|
数据手册 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 35 V | 31mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
PLF0E102MDO1TDCAP ALUM POLY 1000UF 20% 2.5V TH |
4,880 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
PLF0E122MDO1TDCAP ALUM POLY 1200UF 20% 2.5V TH |
3,328 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
PLF0E152MDO1TDCAP ALUM POLY 1500UF 20% 2.5V TH |
1,003 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
PLF0G102MDO1TDCAP ALUM POLY 1000UF 20% 4V TH |
2,030 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.64 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
