铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCJ0E181MCL1GSCAP ALUM POLY 180UF 20% 2.5V SMD |
3,508 |
|
数据手册 |
PCJ | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2.5 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.67 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

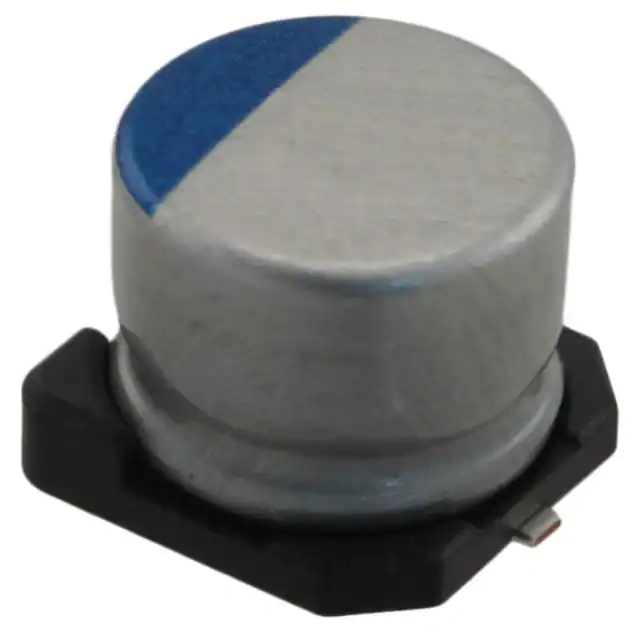

PCK0E681MCO1GSCAP ALUM POLY 680UF 20% 2.5V SMD |
3,704 |
|
数据手册 |
PCK | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPS0J471MP30808EUCAP ALUM POLY 470UF 20% 6.3V TH |
2,995 |
|
数据手册 |
UPS | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | ||
|
A700D157M006ATE012CAP ALUM POLY 150UF 20% 6.3V SMD |
2,865 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
RPS1V151MCN1GSCAP ALUM POLY 150UF 20% 35V SMD |
4,341 |
|
数据手册 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 35 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

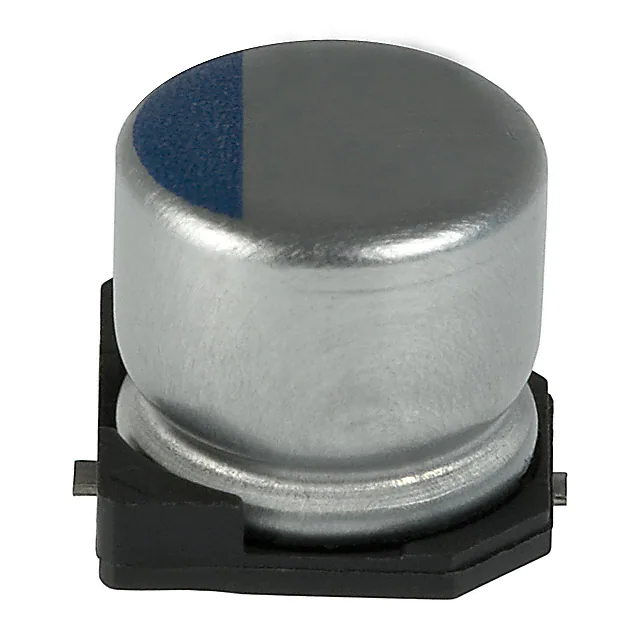

APXA160ARA390MF60GCAP ALUM POLY 39UF 20% 16V SMD |
4,110 |
|
数据手册 |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 39 µF | ±20% | 16 V | 37mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.05 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
RPS0E152MCN1GSCAP ALUM POLY 1500UF 20% 2.5V |
2,530 |
|
数据手册 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.488" (12.40mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
A720V107M016APE025CAP ALUM POLY 100UF 20% 16V SMD |
3,317 |
|
数据手册 |
AO-Cap A720 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | |
|
|
PCH1H820MCL1GSCAP ALUM POLY 82UF 20% 50V SMD |
3,998 |
|
数据手册 |
PCH | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 50 V | 34mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.319" (8.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
RHA1009100M125BCAP ALUM HYBRID 10UF 20% 125V TH |
1,039 |
|
数据手册 |
RHA | Bulk | Active | Hybrid | 10 µF | ±20% | 125 V | 90mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 60 mA @ 100 Hz | 1.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
MAL218497102E3CAP ALUM POLY 10UF 20% 50V SMD |
4,200 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 10 µF | ±20% | 50 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
A700D187M006ATE010CAP ALUM POLY 180UF 20% 6.3V SMD |
4,884 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
EEF-UD0D181RCAP ALUM POLY 180UF 20% 2V SMD |
2,822 |
|
数据手册 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-UD0E151RCAP ALUM POLY 150UF 20% 2.5V SMD |
2,458 |
|
数据手册 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-UD0E181RCAP ALUM POLY 180UF 20% 2.5V SMD |
2,825 |
|
数据手册 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
PCK0G561MCO1GSCAP ALUM POLY 560UF 20% 4V SMD |
1,751 |
|
数据手册 |
PCK | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PVH-10V470MF60E-R2CAP ALUM POLY 47UF 20% 10V SMD |
3,280 |
|
数据手册 |
PVH | Cut Tape (CT) | Obsolete | Polymer | 47 µF | ±20% | 10 V | 31mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.25 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
APS-160ETD181MHB5SCAP ALUM POLY 180UF 20% 16V TH |
2,148 |
|
数据手册 |
NPCAP™-PS | Cut Tape (CT) | Active | Polymer | 180 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.36 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
VSE1E470MCB6357CAP ALUM POLY 47UF 20% 25V SMD |
3,900 |
|
数据手册 |
VSE | Active | Polymer | 47 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | ||
|
|
VSG1C181MCB6357CAP ALUM POLY 180UF 20% 16V SMD |
4,056 |
|
数据手册 |
VSG | Active | Polymer | 180 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
