铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXH4R0ARA681MJ80GCAP ALUM POLY 680UF 20% 4V SMD |
4,936 |
|
数据手册 |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 4 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
RL80E561MDNASQKXCAP ALUM POLY 560UF 20% 2.5V TH |
1,338 |
|
数据手册 |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 2.5 V | 6mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole | |
|
RSB0G331MCN1GSCAP ALUM POLY 330UF 20% 4V SMD |
2,883 |
|
数据手册 |
FPCAP, RSB | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 370 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount | |
|
UGP1E680MP30811UCAP ALUM POLY 68UF 20% 25V TH |
1,401 |
|
数据手册 |
UGP | Active | Polymer | 68 µF | ±20% | 25 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.32 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | ||
|
VSP0J331MCB6357CAP ALUM POLY 330UF 20% 6.3V SMD |
1,359 |
|
数据手册 |
VSP | Active | Polymer | 330 µF | ±20% | 6.3 V | 17mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | ||
|
MAL218697404E3CAP ALUM POLY 330UF 20% 10V SMD |
1,589 |
|
数据手册 |
186 CPNT | Box | Active | Polymer | 330 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.354" (9.00mm) | - | Surface Mount | |
|
PLG1A561MCOCAP ALUM POLY 1,500UF 20% 6.3V S |
2,868 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
MAL218497525E3CAP ALUM POLY 330UF 20% 16V SMD |
4,575 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 330 µF | ±20% | 16 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
A700V336M008ATE0282478CAP ALUM POLY 33UF 20% 8V SMD |
1,272 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 8 V | 28mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
A700V336M010ATE025CAP ALUM POLY 33UF 20% 10V SMD |
3,634 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
2.5SW180M2.7X7.3CAP ALUM POLY 180UF 20% 2.5V SMD |
1,357 |
|
数据手册 |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.106" (2.70mm) | - | Surface Mount | |
|
MAL218697606E3CAP ALUM POLY 82UF 20% 25V SMD |
2,883 |
|
数据手册 |
186 CPNT | Box | Active | Polymer | 82 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 190 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PLF0G821MDO1CAP ALUM POLY 820UF 20% 4V TH |
2,849 |
|
数据手册 |
PLF | Bulk | Active | Polymer | 820 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 6.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|

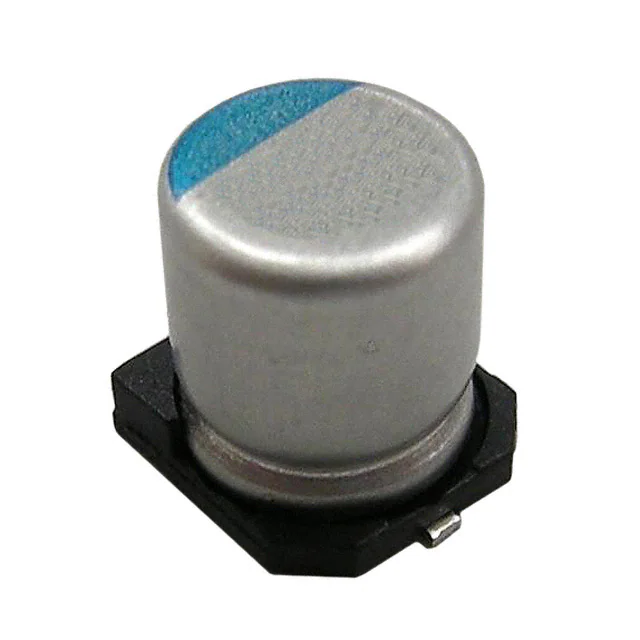

APXK2R5ARA221MF46GCAP ALUM POLY 220UF 20% 2.5V SMD |
1,344 |
|
数据手册 |
NPCAP™-PXK | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 19mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.78 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.177" (4.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
HHXE500ARA101MJA0GCAP ALUMHYB 100UF 20% 50V SMD |
1,072 |
|
数据手册 |
HXE | Bulk | Active | Hybrid | 100 µF | ±20% | 50 V | 25mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 290 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
MAL218497558E3CAP ALUM POLY 100UF 20% 20V SMD |
4,328 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 100 µF | ±20% | 20 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 4.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | |
|
|
RCHVL331M1TFH0002CAP ALUMHYB 330UF 20% 25V SMD |
1,423 |
|
数据手册 |
HVL | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 1 A @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount | |
|
SPSX391M0ERCAP ALUM POLY 390UF 20% 2.5V SMD |
1,131 |
|
数据手册 |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
SPSX391M0ER-6CAP ALUM POLY 390UF 20% 2.5V SMD |
4,386 |
|
数据手册 |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2.5 V | 6mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | |
|
|
SPSX471M0ER-6CAP ALUM POLY 470UF 20% 2.5V SMD |
1,539 |
|
数据手册 |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2.5 V | 6mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
