铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL218597406E3CAP ALUM POLY 560UF 20% 10V SMD |
3,270 |
|
数据手册 |
185 CPNZ | Box | Active | Polymer | 560 µF | ±20% | 10 V | 15mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210 mA @ 120 Hz | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | - | Surface Mount | |
|
MAL218297004E3CAP ALUM HYBRID 68UF 20% 35V SMD |
3,365 |
|
数据手册 |
182 CPHZ | Box | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
MAL218497101E3CAP ALUM POLY 8.2UF 20% 50V SMD |
2,016 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 8.2 µF | ±20% | 50 V | 80mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 40 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
APV1012681M025RCAP ALUM POLY 680UF 20% 25V SMD |
2,987 |
|
数据手册 |
APV | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 25 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 120 Hz | 3.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
MAL218697405E3CAP ALUM POLY 470UF 20% 10V SMD |
3,886 |
|
数据手册 |
186 CPNT | Box | Active | Polymer | 470 µF | ±20% | 10 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 210 mA @ 120 Hz | 4.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

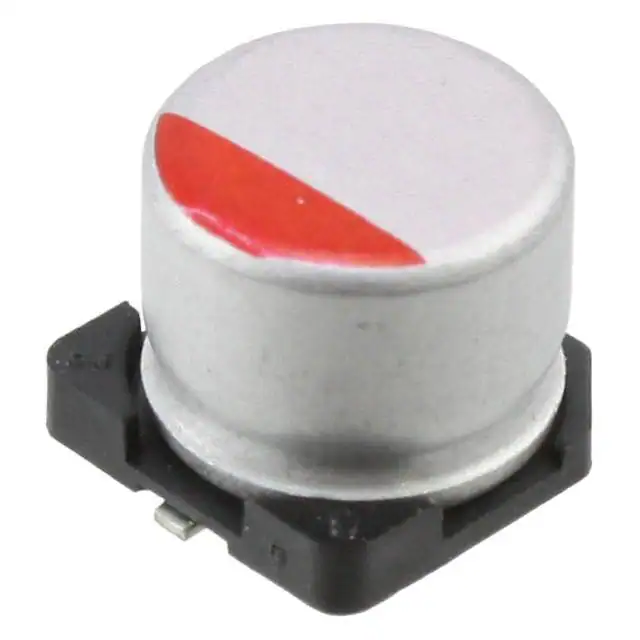

RPS0J181MCN1GSCAP ALUM POLY 180UF 20% 6.3V SMD |
1,470 |
|
数据手册 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
187AVG035MFBJCAP ALUM POLY 180UF 20% 35V TH |
2,691 |
|
数据手册 |
AVG | Bulk | Active | Polymer | 180 µF | ±20% | 35 V | 26mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 147.5 mA @ 120 Hz | 2.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole | |
|
|
MAL218497364E3CAP ALUM POLY 1500UF 20% 4V SMD |
4,046 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 1500 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
APD1012820M050RCAP ALUM POLY 82UF 20% 50V SMD |
3,158 |
|
数据手册 |
APD | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 50 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
A700V107M006ATE030CAP ALUM POLY 100UF 20% 6.3V SMD |
2,653 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 30mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700V107M006ATE028CAP ALUM POLY 100UF 20% 6.3V SMD |
2,790 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 28mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
MAL218497103E3CAP ALUM POLY 12UF 20% 50V SMD |
4,991 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 12 µF | ±20% | 50 V | 80mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 40 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UGV1E391MNN1012UCAP ALUM POLY 390UF 20% 25V TH |
3,585 |
|
数据手册 |
UGV | Active | Polymer | 390 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | ||
|
|
APA1012271M035RCAP ALUM POLY 270UF 20% 35V SMD |
1,954 |
|
数据手册 |
APA | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 35 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
477ALG025MGBJCAP ALUM POLY 470UF 20% 25V TH |
2,015 |
|
数据手册 |
ALG | Bulk | Active | Polymer | 470 µF | ±20% | 25 V | 14mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 252.5 mA @ 120 Hz | 5.05 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole | |
|
HZA566M025D16T-FCAP ALUM HYBRID 56UF 20% 25V SMD |
3,215 |
|
数据手册 |
HZA | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 25 V | 50mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 130 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
HZA276M035D16T-FCAP ALUM HYBRID 27UF 20% 35V SMD |
1,031 |
|
数据手册 |
HZA | Tape & Reel (TR) | Active | Hybrid | 27 µF | ±20% | 35 V | 60mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 130 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
4SWZ180M1.9X7.3CAP ALUM POLY 180UF 20% 4V SMD |
2,510 |
|
数据手册 |
PC-CON, SWZ | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount | |
|
SPSX271M02R-4CAP ALUM POLY 270UF 20% 2V SMD |
4,457 |
|
数据手册 |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2 V | 4.5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | |
|
|
SPSX471M02R-6CAP ALUM POLY 470UF 20% 2V SMD |
1,757 |
|
数据手册 |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2 V | 6mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
