铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECASD40J686M015K00CAP ALUM POLY 68UF 20% 6.3V SMD |
2,715 |
|
数据手册 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
PLF0E331MCO8TDCAP ALUM POLY 330UF 20% 2.5V TH |
1,069 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
PLF1A151MDL4TDCAP ALUM POLY 150UF 20% 10V TH |
4,200 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole | |
|
PLF1E6R8MCL2TPCAP ALUM POLY 6.8UF 20% 25V TH |
4,794 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 6.8 µF | ±20% | 25 V | 80mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole | |
|
HHXE500ARA121MJA0GCAP ALUMHYB 120UF 20% 50V SMD |
2,373 |
|
数据手册 |
HXE | Bulk | Active | Hybrid | 120 µF | ±20% | 50 V | 25mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 290 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
MAL218597608E3CAP ALUM POLY 100UF 20% 25V SMD |
4,480 |
|
数据手册 |
185 CPNZ | Box | Active | Polymer | 100 µF | ±20% | 25 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | Surface Mount | |
|
|
MAL218597607E3CAP ALUM POLY 100UF 20% 25V SMD |
2,282 |
|
数据手册 |
185 CPNZ | Box | Active | Polymer | 100 µF | ±20% | 25 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
AHA1010120M100RCAP ALUMHYB 12UF 20% 100V SMD |
4,973 |
|
数据手册 |
AHA | Tape & Reel (TR) | Active | Hybrid | 12 µF | ±20% | 100 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
AHA1010120M080RCAP ALUM HYBRID 12UF 20% 80V SMD |
1,017 |
|
数据手册 |
AHA | Tape & Reel (TR) | Active | Hybrid | 12 µF | ±20% | 80 V | 70mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 100 Hz | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
4SW150M2.7X7.3CAP ALUM POLY 150UF 20% 4V SMD |
1,166 |
|
数据手册 |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.106" (2.70mm) | - | Surface Mount | |
|
SPSX331M0ERCAP ALUM POLY 330UF 20% 2.5V SMD |
1,782 |
|
数据手册 |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
SPSX391M02RCAP ALUM POLY 390UF 20% 2V SMD |
4,410 |
|
数据手册 |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
APV1012561M025RCAP ALUM POLY 560UF 20% 25V SMD |
3,704 |
|
数据手册 |
APV | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 25 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 120 Hz | 3.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
826AVG050MFBJCAP ALUM POLY 82UF 20% 50V TH |
4,289 |
|
数据手册 |
AVG | Bulk | Active | Polymer | 82 µF | ±20% | 50 V | 32mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 112.5 mA @ 120 Hz | 2.25 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole | |
|

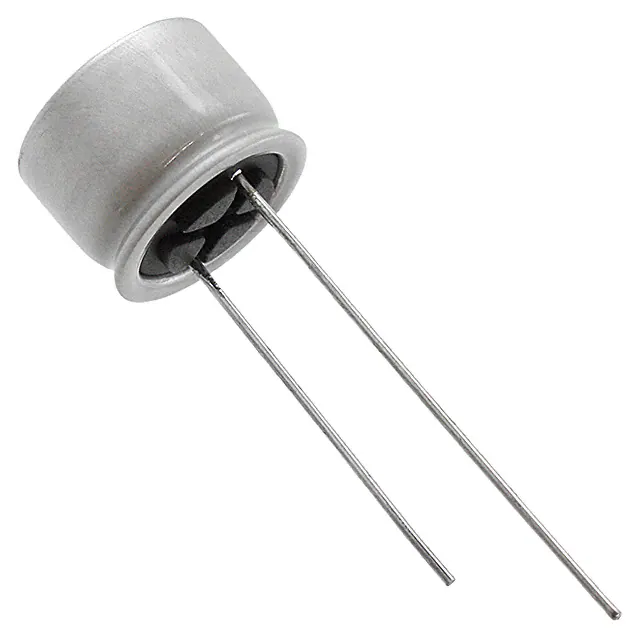

4SEP470M+TCAP ALUM POLY 470UF 20% 4V TH |
1,337 |
|
数据手册 |
OS-CON™, SEP | Tape & Box (TB) | Active | Polymer | 470 µF | ±20% | 4 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole | |
|
|
2SWZ270M1.9X7.3CAP ALUM POLY 270UF 20% 2V SMD |
4,819 |
|
数据手册 |
PC-CON, SWZ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount | |
|
|
PCL0J681MCL1GSCAP ALUM POLY 680UF 20% 6.3V SMD |
3,083 |
|
数据手册 |
PCL | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 230 mA @ 120 Hz | 4.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.398" (10.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
685XMPL016MG19CAP ALUM POLY 6.8UF 20% 16V SMD |
3,959 |
|
数据手册 |
XMPL | Tape & Reel (TR) | Active | Polymer | 6.8 µF | ±20% | 16 V | 70mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | |
|
|
RAHTX271M1EEH0002CAP ALUMHYB 270UF 20% 16V SMD |
1,545 |
|
数据手册 |
HTX | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 16 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | Anti-Vibration | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | |
|
|
RAHTX221M1TEH0002CAP ALUMHYB 220UF 20% 25V SMD |
2,847 |
|
数据手册 |
HTX | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 22mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | Anti-Vibration | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
