铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLV1C471MDL1CAP ALUM POLY 470UF 20% 16V TH Nichicon |
132 |
|
数据手册 |
PLV | Bulk | Not For New Designs | Polymer | 470 µF | ±20% | 16 V | 23mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PLX1C221MDL1TDCAP ALUM POLY 220UF 20% 16V TH Nichicon |
649 |
|
数据手册 |
PLX | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 16 V | 25mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
PLX1H270MDL1TDCAP ALUM POLY 27UF 20% 50V TH Nichicon |
319 |
|
数据手册 |
PLX | Cut Tape (CT) | Active | Polymer | 27 µF | ±20% | 50 V | 33mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCX1D181MCL1GSCAP ALUM POLY 180UF 20% 20V SMD Nichicon |
486 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 20 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PLX1V560MDL1CAP ALUM POLY 56UF 20% 35V TH Nichicon |
2,009 |
|
数据手册 |
PLX | Bulk | Active | Polymer | 56 µF | ±20% | 35 V | 31mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
PLX1E121MDL1CAP ALUM POLY 120UF 20% 25V TH Nichicon |
174 |
|
数据手册 |
PLX | Bulk | Active | Polymer | 120 µF | ±20% | 25 V | 27mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCZ1E271MCL1GSCAP ALUM POLY 270UF 20% 25V SMD Nichicon |
880 |
|
数据手册 |
PCZ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RNU1D681MDN1PHCAP ALUM POLY 680UF 20% 20V TH Nichicon |
538 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 20 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 540 mA @ 120 Hz | 5.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PCV1D331MCL2GSCAP ALUM POLY 330UF 20% 20V SMD Nichicon |
797 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 20 V | 22mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

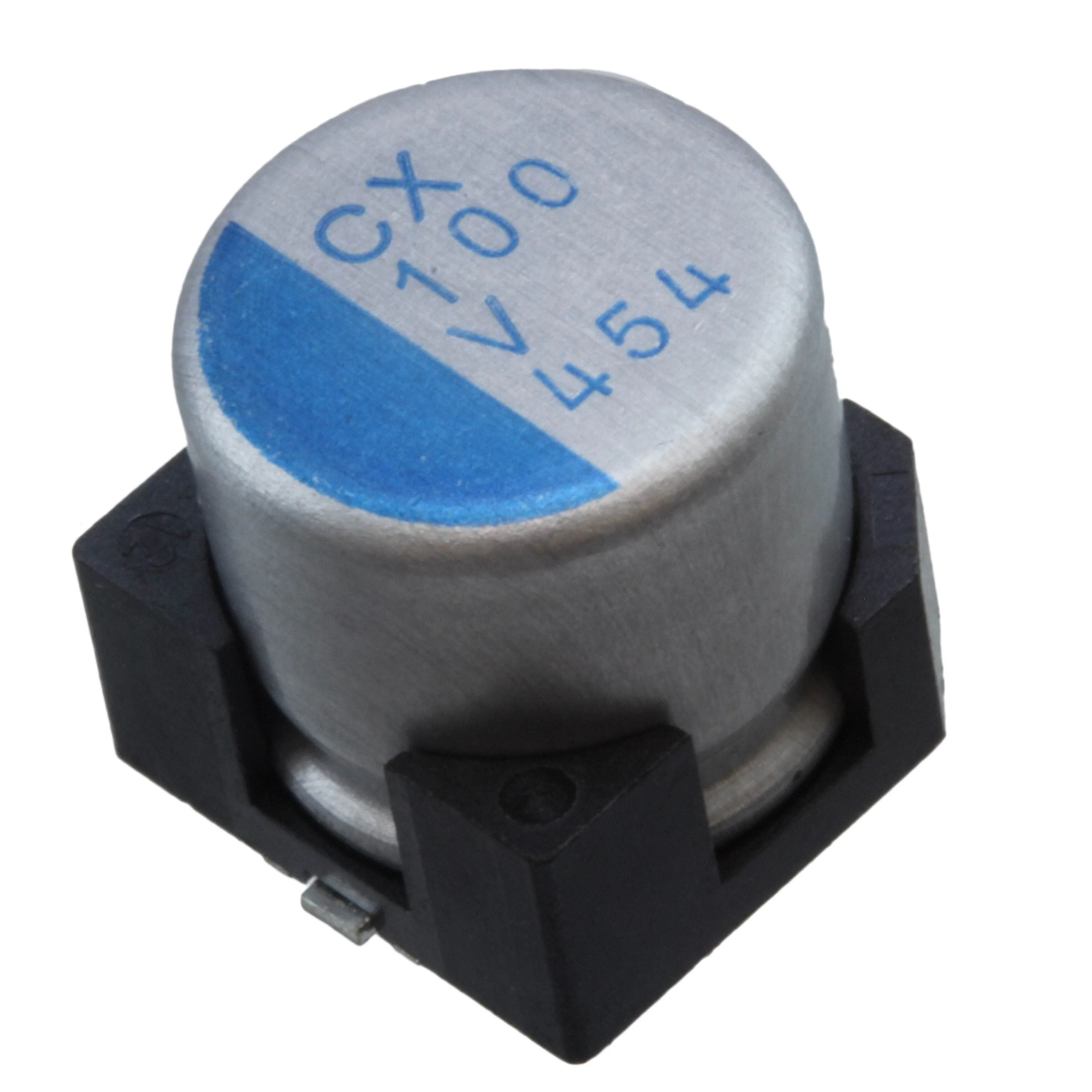

PCX1V101MCS1GSCAP ALUM POLY 100UF 20% 35V SMD Nichicon |
404 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 25mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
