铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCV1D151MCL1GSCAP ALUM POLY 150UF 20% 20V SMD Nichicon |
1,475 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 33mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV1C221MCL1GSCAP ALUM POLY 220UF 20% 16V SMD Nichicon |
180 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 31mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RNS1E101MDN1CAP ALUM POLY 100UF 20% 25V TH Nichicon |
145 |
|
数据手册 |
FPCAP, RNS | Bulk | Active | Polymer | 100 µF | ±20% | 25 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 450 mA @ 120 Hz | 4.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PCX1D121MCS1GSCAP ALUM POLY 120UF 20% 20V SMD Nichicon |
480 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 20 V | 29mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1C271MCL1GSCAP ALUM POLY 270UF 20% 16V SMD Nichicon |
400 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

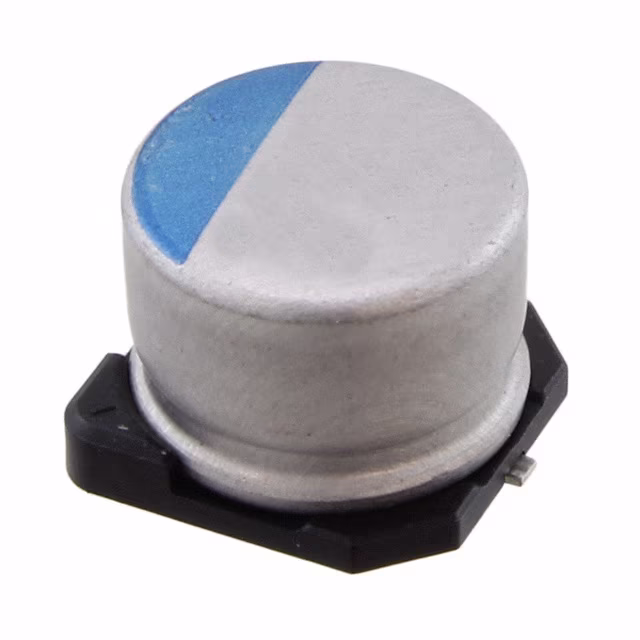

PCX1E820MCL1GSCAP ALUM POLY 82UF 20% 25V SMD Nichicon |
202 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 36mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCX1E121MCL6GSCAP ALUM POLY 120UF 20% 25V SMD Nichicon |
723 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 25 V | 29mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCV1H560MCL2GSCAP ALUM POLY 56UF 20% 50V SMD Nichicon |
518 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 50 V | 28mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCV1D181MCL2GSCAP ALUM POLY 180UF 20% 20V SMD Nichicon |
463 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 20 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCX1H220MCL1GSCAP ALUM POLY 22UF 20% 50V SMD Nichicon |
247 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 50 V | 56mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
