铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCG1C821MCL1GSCAP ALUM POLY 820UF 20% 16V SMD Nichicon |
3,820 |
|
数据手册 |
PCG | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 16 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1V390MCL2GSCAP ALUM POLY 39UF 20% 35V SMD Nichicon |
1,994 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 35 V | 52mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLG1C821MDO1TDCAP ALUM POLY 820UF 20% 16V TH Nichicon |
839 |
|
数据手册 |
PLG | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

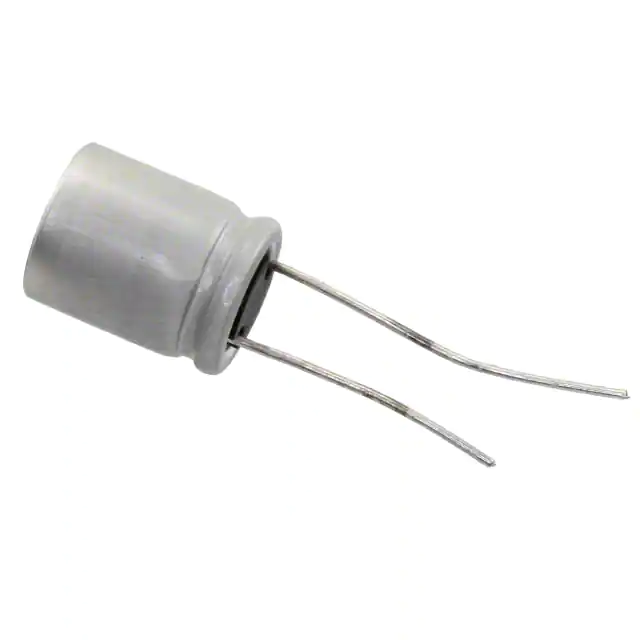

PLS1C331MDO1TDCAP ALUM POLY 330UF 20% 16V TH Nichicon |
240 |
|
数据手册 |
PLS | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 16 V | 9mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RNU1E391MDNASQPHCAP ALUM POLY 390UF 20% 25V TH Nichicon |
278 |
|
数据手册 |
FPCAP, RNU | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PLS0G122MDO1TDCAP ALUM POLY 1200UF 20% 4V TH Nichicon |
497 |
|
数据手册 |
PLS | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 4 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCV1H330MCL1GSCAP ALUM POLY 33UF 20% 50V SMD Nichicon |
1,623 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 50 V | 49mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RNE1C102MDN1PHCAP ALUM POLY 1000UF 20% 16V TH Nichicon |
324 |
|
数据手册 |
FPCAP, RNE | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
PLS1A471MDO1TDCAP ALUM POLY 470UF 20% 10V TH Nichicon |
499 |
|
数据手册 |
PLS | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 10 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PLV1C221MCL1CAP ALUM POLY 220UF 20% 16V TH Nichicon |
194 |
|
数据手册 |
PLV | Bulk | Not For New Designs | Polymer | 220 µF | ±20% | 16 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
