铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

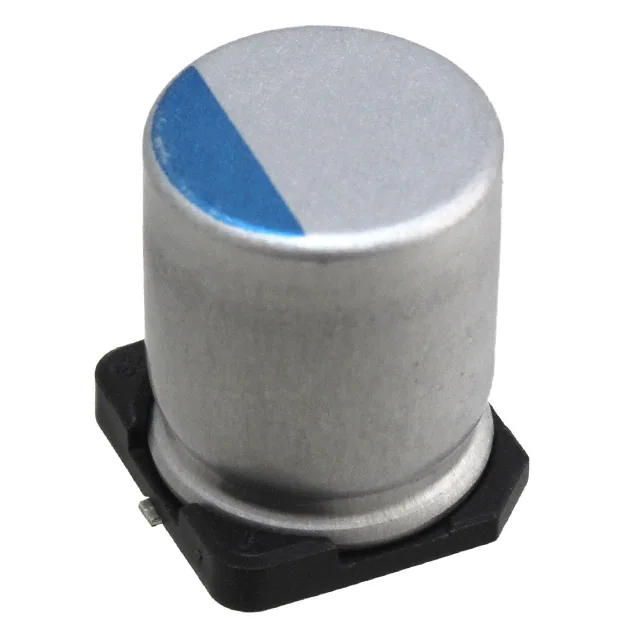

PCX1H470MCL1GSCAP ALUM POLY 47UF 20% 50V SMD Nichicon |
1,816 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCG1A152MCL1GSCAP ALUM POLY 1500UF 20% 10V SMD Nichicon |
9,552 |
|
数据手册 |
PCG | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 10 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCR1K270MCL1GSCAP ALUM POLY 27UF 20% 80V SMD Nichicon |
936 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 80 V | 38mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCR1K390MCL1GSCAP ALUM POLY 39UF 20% 80V SMD Nichicon |
6,699 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 80 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1E151MCL1GSCAP ALUM POLY 150UF 20% 25V SMD Nichicon |
451 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 25 V | 28mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCR1V151MCL6GSCAP ALUM POLY 150UF 20% 35V SMD Nichicon |
8,877 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 35 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1J220MCL1GSCAP ALUM POLY 22UF 20% 63V SMD Nichicon |
3,054 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 63 V | 56mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV1D221MCL1GSCAP ALUM POLY 220UF 20% 20V SMD Nichicon |
173 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 20 V | 27mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCV1V680MCL1GSCAP ALUM POLY 68UF 20% 35V SMD Nichicon |
5,327 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 35 V | 37mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PLX1H220MCL1CAP ALUM POLY 22UF 20% 50V TH Nichicon |
536 |
|
数据手册 |
PLX | Bulk | Active | Polymer | 22 µF | ±20% | 50 V | 35mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
