铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCV1V220MCL2GSCAP ALUM POLY 22UF 20% 35V SMD Nichicon |
4,504 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 35 V | 50mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCS1C121MCL1GSCAP ALUM POLY 120UF 20% 16V SMD Nichicon |
1,817 |
|
数据手册 |
PCS | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | 28mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCJ1A121MCL1GSCAP ALUM POLY 120UF 20% 10V SMD Nichicon |
1,203 |
|
数据手册 |
PCJ | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.53 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
GYF1H101MCW1GSCAP ALUMHYB 100UF 20% 50V SMD Nichicon |
659 |
|
数据手册 |
GYF | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 255 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
GYB1H101MCW1GSCAP ALUMHYB 100UF 20% 50V SMD Nichicon |
3,561 |
|
数据手册 |
GYB | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCR1E221MCL6GSCAP ALUM POLY 220UF 20% 25V SMD Nichicon |
9,604 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNU1H390MDN1KXCAP ALUM POLY 39UF 20% 50V TH Nichicon |
6,350 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 39 µF | ±20% | 50 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCF1C221MCL1GSCAP ALUM POLY 220UF 20% 16V SMD Nichicon |
4,442 |
|
数据手册 |
PCF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

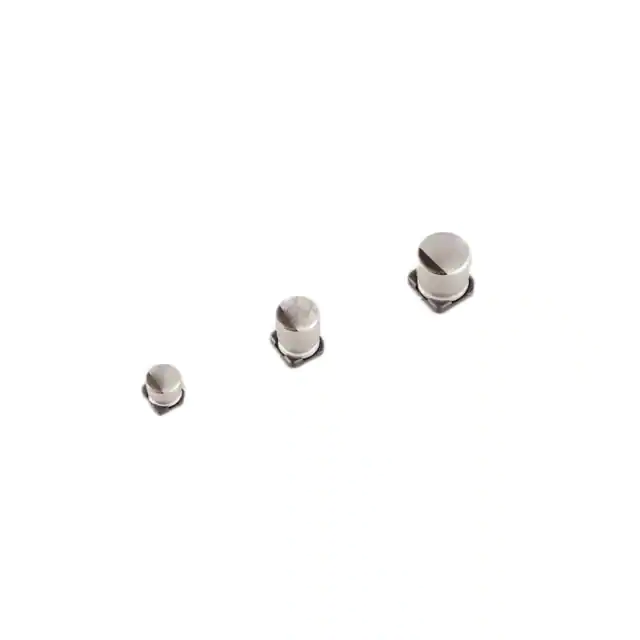

GYC1V271MCW1GSCAP ALUMHYB 270UF 20% 35V SMD Nichicon |
1,840 |
|
数据手册 |
GYC | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 495 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCJ1C121MCL1GSCAP ALUM POLY 120UF 20% 16V SMD Nichicon |
3,635 |
|
数据手册 |
PCJ | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.01 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
